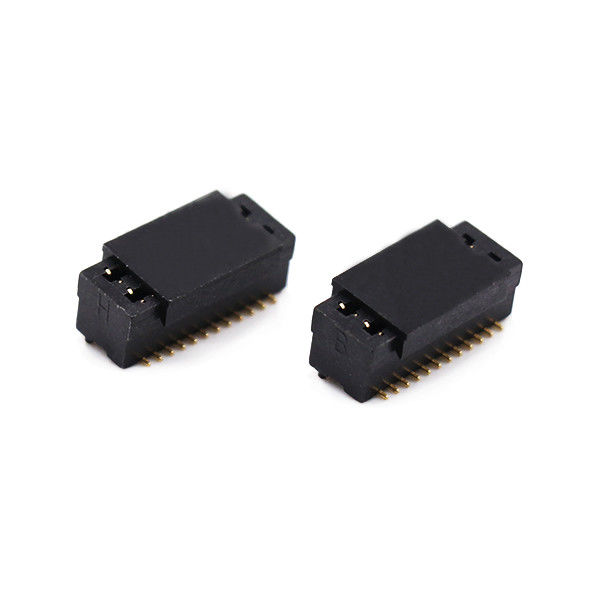

0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector

0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector
0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector
0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector 0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector 0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector

Large Image :  0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE/ROHS
Model Number: Board to Board connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Packaging Details: inner package: PE bag,Tray, Tube,Box,Tape+Reel . Outer Package: export carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs/Month

0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector

Description
Pitch: 0.8mm Contact: Phosphor Brone
Material Of Housing: PA9T Or LCP+30%GF UL94V-0 Positions: 4-50pin
Type: Dual Row Rated Current: 0.75AMP
Rated Voltage: 50VAC 200V, DC 300V/Contact
High Light:

0.8mm Board To Board Pin Connector

,

PA9T Board To Board Pin Connector

,

0.8mm Printed Circuit Board Connector

0.8mm pitch Board to Board connector,double Slot Printed Circuit Board Connector

Details of Board to Board

Xietaikang provides a wide variety of Board to Board connectors from 0.4mm-1.0mm of narrow-pitches, low profile, and space-saving types that are best suited to compact equipment such as smartphones, wearable devices, and such to the types featuring the floating structure absorbing vibrations and minor misalignment on a printed circuit board that are best suited to equipment such as automobiles and medical devices requiring high contact reliability.

Ideal for compact applications in the automotive, industrial, medical and mobile device industries, SlimStack Board-to-Board Connectors offer a wide selection of low-profile, narrow width options in various mated heights and circuit sizes.



Finely spaced plate to plate connectors are optimized interconnect solutions for smaller, thinner electronic consumer products. These connectors can meet the trend of miniaturization in the market. The product series has smaller pin spacing, narrower body and lower insertion height and various advantages: molding contacts provide contact on the rolling surface, which is highly reliable; it is practical, easy to insert, durable, enough space, and a nickel barrier to facilitate welding.



Product Specification

Item Board to board female header
Pitch 0.8mm
Mounting Type SMT
No. Of Positions 4-50pin
Connection Style Right angle-Vertical
Current rating 0.75AMP
Voltage rating 50VAC 200V, DC 300V/Contact
Contact Resistance 20mΩ Max
Insulation Resistance 500mΩ Min
Contact Material Copper alloy
Insulator Material PA9T Or LCP+30%GF UL94V-0
Insulator Color White/black
Withstanding Voltage 500V AC/Minute
Operation Temperature -40℃ to +85℃
Lead Time 7-10 working Days

0.8mm Pitch Board To Board Pin Connector / PA9T Printed Circuit Board Connector 0



Product Advantage

  • long self calibration distance, easy assembly and socket.
  • wide open area suitable for standard nozzle size.
  •  multi point contact system can be securely connected.
  •  the nickel blocking layer on the single contact can minimize the wicking problem.



Typical Applications

  • Smart doorbells,
  • smart watches
  • Printers / Copiers
  •  Storage Devices
  •  Industrial Equipment,
  • Medical Equipment etc.


Our services


  • Small orders accepted
  • Factory direct export
  • With 20 years of professional production experience as a manufacturer of precision connectors
  • Free samples is available
  • Prompt delivery
  • Green product
  • Strong researching and developing team
  • Experienced staff
  • ISO9001,ROHS


Packaging & Shipment term

  • FOB Port:Shenzhen

  • Lead time:7 working days

  • Packaging: reel in carton

  • Payment Method:advance TT,T/T,L/C,Paypal etc

  • Delivery details:7-10working days after having confirmed the order


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What ‘s PCB Connector can provide?
A: FPC connector, Pin Header, Female Header, Box Header, Ejector header,Wafer housing, SIM Card connector,Memory card connector, USB.

Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.

Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.

Q: Why you can buy high quality PCB connector with attractive price from us ?
A: 1) Products development and design of metal and plastic mold , precision high-speed punch molding, plastic injection molding and automatic assembly with the support of Skilled R&D also all process are done in house that can save cost and control quality of each production process by ourself.
2) We have own electroplating factory can save our cost, other supplier has not it yet. It’s our advantage
3) Our production equipment are Auto- Assemblies Machine instead of worker. Highly efficient production capacity.
For Example 0.5mm pitch FPC connector
Auto-Assemblies Machine capacity: 100pcs/ 1minute.
