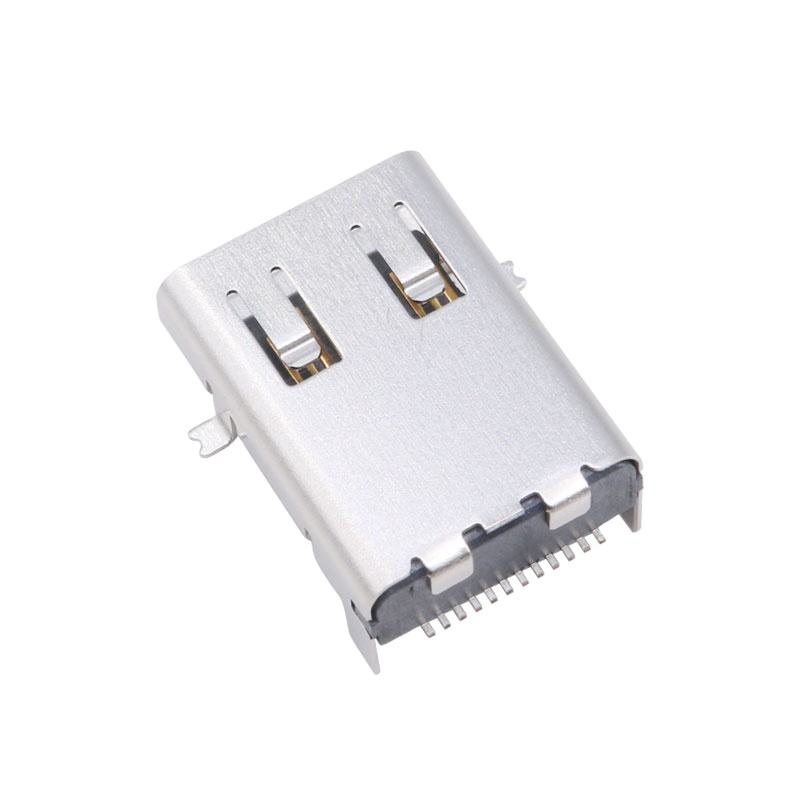

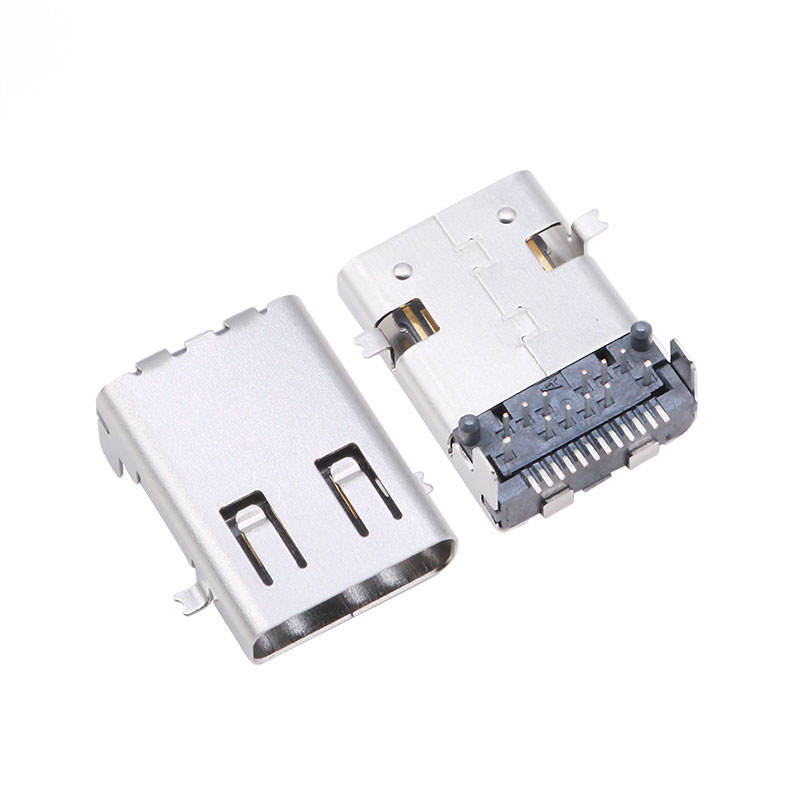

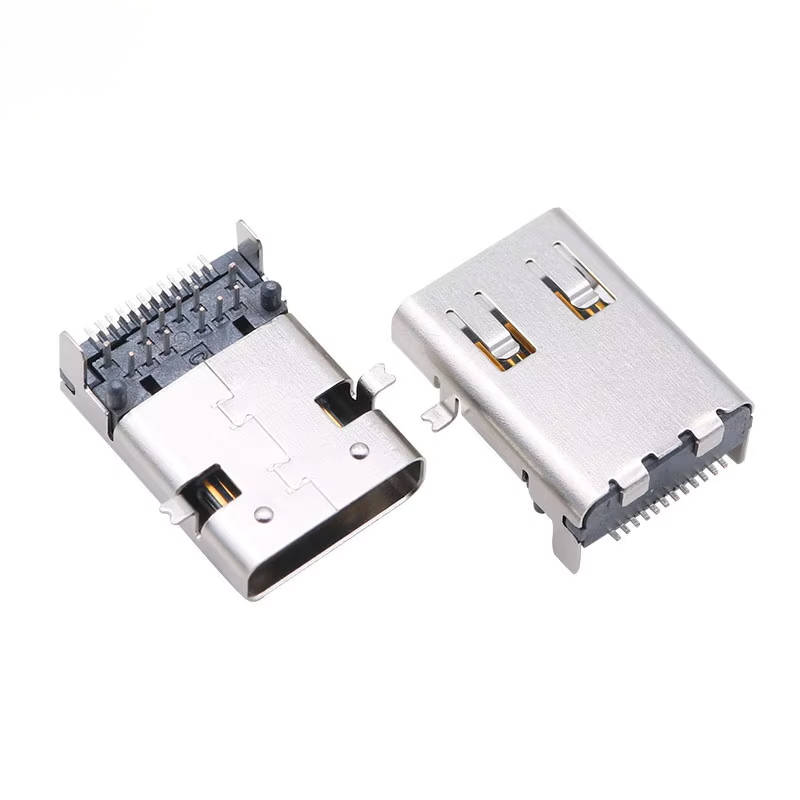

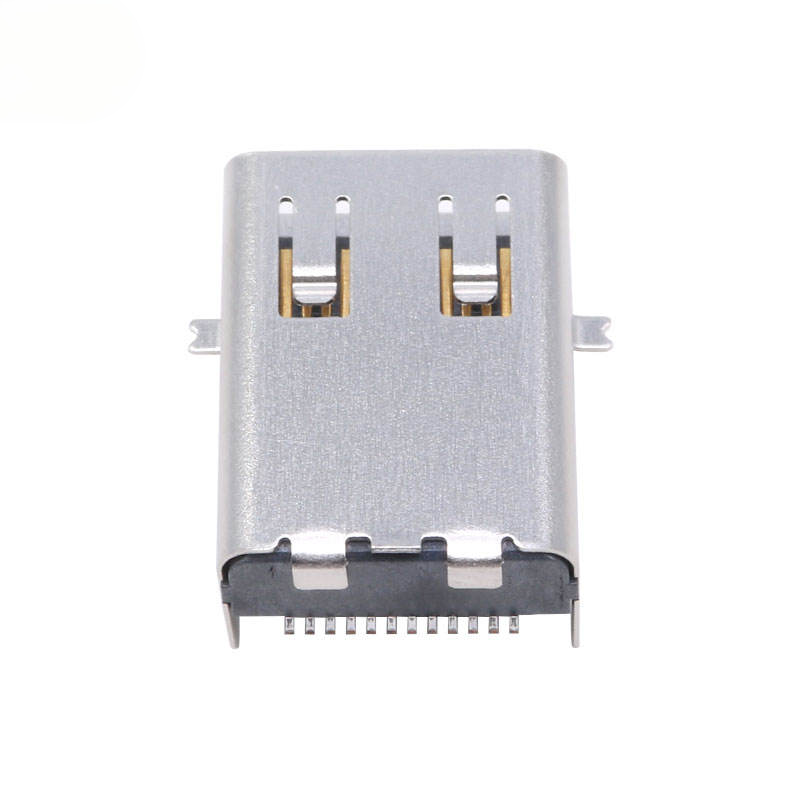

USB 3.1 Type-C 24-Pin High-Frequency Bandwidth 40Gbps Ultra-High-Speed Transmission Female Connector

USB 3.1 Type‑C 24‑Pin Female Receptacle | 40Gbps High‑Frequency Ultra‑High‑Speed Connector

Product Highlights

✅ Waterproof Grade: IPX7 / IPX8 optional sealing grade, integrated silicone gasket, stable performance in wet, washable, and outdoor environments

✅ High‑Speed Protocol: Supports USB 3.1 Gen2 / USB4, 40Gbps high‑frequency bandwidth, controlled impedance for reliable signal integrity

✅ High‑Power Stable PD: 100W / 240W PD 3.1 power delivery, low contact resistance, no thermal runaway under continuous high‑current load

✅ 3 Mounting Options for PCB: Single‑row SMT / Dual‑row SMT / THR Through‑Hole Retention (Mid‑mount)

✅ Core Pain Point Solved: Reinforced shell stake & anti‑peel structure. Mechanical stress transfers to PCB shell anchors instead of signal solder pads, effectively preventing pad peeling, pin cracks, and de‑soldering under long‑term repeated plugging & vibration

Technical Specifications

Compatibility & Cross Reference (Alternative to International Brands)

Pinout, footprint, and electrical performance are engineered to drop‑in replace Molex, JST, Hirose 24P Type‑C board‑end receptacles.

• No PCB redesign required for most legacy projects
• Same impedance & high‑frequency performance, shorter lead time, and competitive cost
• We support cross‑check against your target OEM part number for 1:1 substitution validation

Product Features

• Full 24‑pin full‑feature Type‑C, symmetric reversible plug
• 360° stainless steel shielding shell, low EMI, stable high‑frequency signal
• Reinforced anti‑peel stake design, solves common PCB pad peeling failure
• Optional IPX7 / IPX8 waterproof sealing for harsh environments
• UL94V‑0 LCP insulator, withstands standard SMT reflow process
• Multiple stacking heights & mounting forms for flexible PCB layout

Product Advantage

1. Anti‑peel mechanical reinforcement: Separates electrical solder joints from plugging stress; lower warranty failure rate on frequently plugged ports
2. Consistent high‑frequency performance: Strict impedance control, stable 40Gbps transmission without signal loss
3. High‑power thermal stability: Optimized contact structure, 240W continuous power without overheating
4. One footprint, multiple variants: Switch waterproof / non‑waterproof, SMT / THR without changing PCB
5. Direct auto‑line ready: Standard reel packaging, fits your existing SMT pick & place machine

Application

• Docking station, Thunderbolt peripheral, external SSD
• Industrial panel PC, test & measurement equipment
• Rugged portable device, outdoor IoT, washable medical equipment
• Laptop, single‑board computer, high‑speed video capture module
• Charging station, high‑power PD adapter board

Packaging

Reel Tape & Reel Packing: Standard reel packaging, compatible with automatic SMT pick‑and‑place machines. No extra pre‑processing required for your assembly line.

Lead Time & Sample Policy

• Sample: 3 working days
• Bulk order: 1–3 weeks, depending on quantity & customization
• MOQ: Low MOQ for standard models
• Free samples available, fast sample release for engineering validation

Selection Guide for Engineers

1. If your product has frequent plugging, vibration, or drop test requirements: Choose THR reinforced version to prioritize anti‑peel performance
2. Outdoor/washable application: Select IPX7 / IPX8 gasket variant
3. High‑speed 40Gbps data: Confirm high‑frequency spec and impedance report before layout freeze
4. Mass production: Confirm reel specification and reflow profile with our FAE
5. Drop‑in replacement: Send your original Molex / JST / Hirose part number for cross-validation

Custom Service

Custom pin assignment, waterproof structure modification, housing surface treatment, customized logo, special plating requirements.

About us

Manufacturing Capability

Professional manufacturer of precision waterproof connectors.

• Workshop: Dust-free molding, stamping, assembly & testing workshop
• Equipment: High-speed stamping machines, injection molding, automatic plating, automatic AOI, IP waterproof test bench, high-speed signal tester
• Certifications: UL, RoHS, REACH compliant
• Custom service: Custom pin assignment, customized housing, special waterproof structure, custom footprint on request

Quality Guarantee
Rigorous production and quality checks in each section, providing 6 6-year warranty for all our Female Connectors.

 Responding within 24 hours
All inquiries will be replied to within 24 hours on working days.

Why Choose Us?

1)  Provide the perfect after-sales service for all our clients

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: For any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications, depending on the selected specification.

Q4: Can this connector be customized?

A: Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
