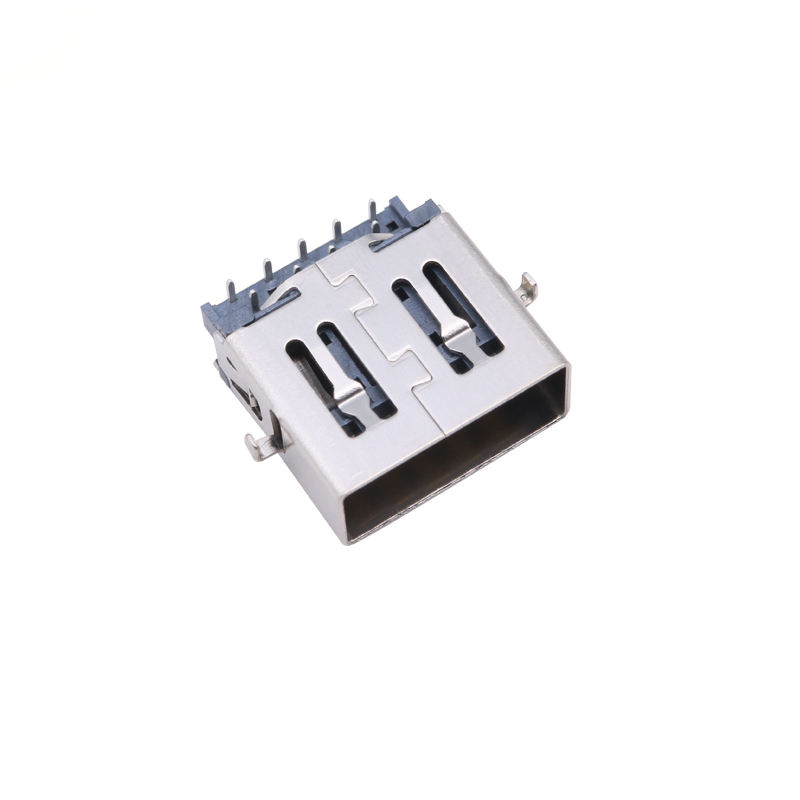

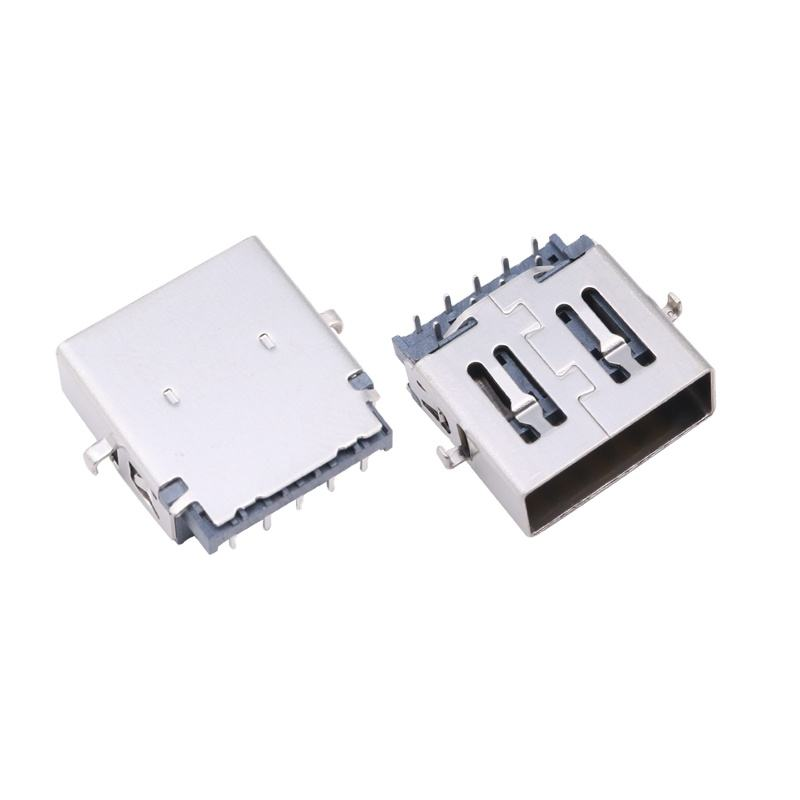

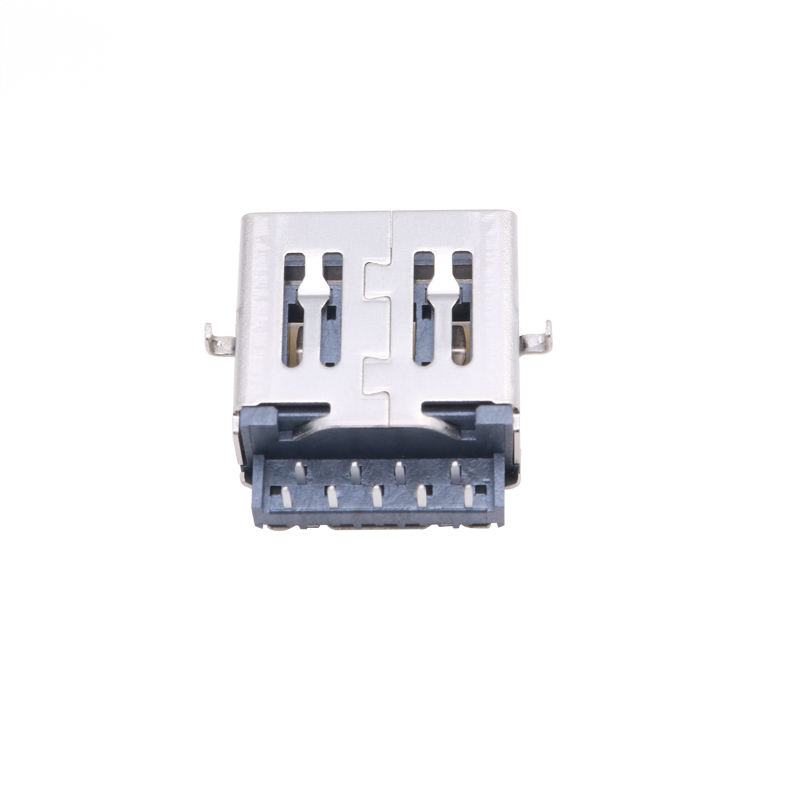

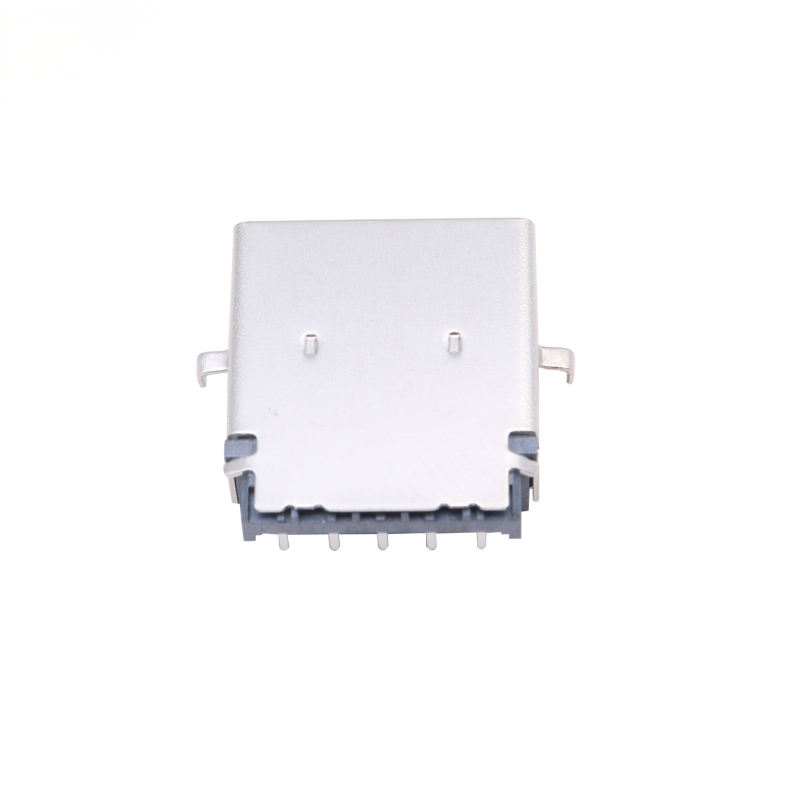

USB3.0AF 90 Degree Reverse Sinking Plate 1.36H Two-Pin Smart Connector Factory Compatible Molex TE JAE Connector for Wearables

USB3.0 AF 90 Degree Reverse Sinking Plate 1.36H Two-Pin Smart Connector

For Wearables | Compatible Molex / TE / JAE

Product Highlights

✅ IP Rated Waterproof Option: IPX7 / IPX8 sealing available for wearable wet & sweat scenarios

✅ High-Speed & Stable Power Delivery: USB3.0 (5Gbps), upgraded USB4.0 optional; supports 100W / 240W PD high-power stable transmission

✅ Multi Solder Mounting Options: SMT / THR Through-Hole Reflow / Dual-Row SMT for different PCB layout

✅ Anti-Peel Reinforced Structure: Solves core pain point: pin peeling & solder joint fracture from repeated plugging, bending stress and board delamination

Technical Specifications Table

Compatible & Cross Reference (Molex / TE / JAE Replacement)

Drop-in alternative to equivalent Molex, TE, JAE USB3.0 AF 90° reverse sinking 1.36H connectors. Same footprint, pinout & mechanical outline. No PCB redesign required. Suitable for BOM cost reduction & supply chain diversification without performance loss.

Product Features

• 90° reverse sinking low profile: 1.36H, ultra-thin for compact wearable housing
• Two-pin smart detection structure, wearables power & signal identification
• Reinforced shell locking stakes, stress bypass design to prevent solder pad lifting
• High-temp LCP insulator, stable at reflow temperature
• EMI shielding shell, suppress signal interference for high-speed USB transmission
• RoHS, Halogen Free compliant

Product Advantage

1. Anti-delamination core design: Mechanical load transfers to shell locking legs instead of signal pins, stops pin breakage & PCB pad peeling after long-term plugging
2. Flexible mounting: One part platform supports SMT, THR, dual-row SMT for your PCB project iteration
3. Waterproof configurable: IPX7/IPX8 optional for sweatproof, splashproof wearable devices
4. High-power stable PD: 100W / 240W PD version keeps low impedance under continuous heavy current
5. Direct reel taping: Ready for automatic pick & place, zero extra handling cost for your SMT line

Application

Wearables, smart watches, smart bands, portable medical devices, TWS charging docks, mini handheld sensors, compact IoT modules, small portable power banks

Packaging

Standard: Tape & Reel (Reel packing), ready for automatic pick-and-place SMT machine, direct loading on your production line. Tray packing available as an optional request.

Lead Time & Sample Policy

• Sample: 3 working days
• Bulk order: 1–3 weeks, depending on quantity & customization
• MOQ: Low MOQ for standard models
• Free samples available, fast sample release for engineering validation

Selection Guide for Engineers

1. Frequent plugging scenario: Choose THR reinforced anchor pin version to avoid PCB pad peeling
2. Auto SMT mass production: Select SMT / Tape & Reel packaging
3. High power PD charging: Request high-current contact upgrade
4. Outdoor/wet environment: Specify IPX7 / IPX8 waterproof variant
5. High reliability industrial project: Confirm gold plating thickness & salt spray requirement
6. Always validate the sample before mass production; we can provide accelerated life test data for your qualification

Custom Service

Certifications: ISO9001, RoHS, REACH, UL file available. Custom service:

• Adjust gold plating thickness
• High current upgrade (3A/5A)
• IPX7 / IPX8 waterproof modified version
• Custom pin length, shell shape, stacking version
• Provide drawings, 3D STEP, test report, PPAP file for industrial/medical projects

Custom pin assignment, waterproof structure modification, housing surface treatment, customized logo, special plating requirements.

About us & Manufacturing Capability

We are a professional precision connector manufacturer focusing on USB, FPC, BTB, Type-C, and high-speed interconnect components.

• Automatic high-speed stamping, injection molding, 3D CCD full inspection
• In-house reliability lab for mating cycle, salt spray, thermal shock, and impedance testing
• Independent tooling workshop, fast mold modification
• Stable supply chain, strict IQC/IPQC/FQC quality control
• Support long-term NPI program, formal PCN notification mechanism

Quality Guarantee
Rigorous production and quality checks in each section, providing 6 6-year warranty for all our Female Connectors.

Responding within 24 hours
All inquiries will be replied to within 24 hours on working days.

Why Choose Us?

1)  Provide the perfect after-sales service for all our clients

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: For any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications, depending on the selected specification.

Q4: Can this connector be customized?

A: Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
