Product Details:
|
| 3.1 Female DIY High Current Charging: | 6p | Rated Current: | 3.0A AC |
|---|---|---|---|
| Rated Voltage: | 5V | Contact Resistance: | 40m/pin Ohms MAX |
| Insulation Resistance: | 100mohms Min 100V DC | Contact: | Copper Alloy |
| High Light: | 6Pin Type C Connectors,UL94V-0 Type C Connectors,UL94V-0 type c female connector |
||

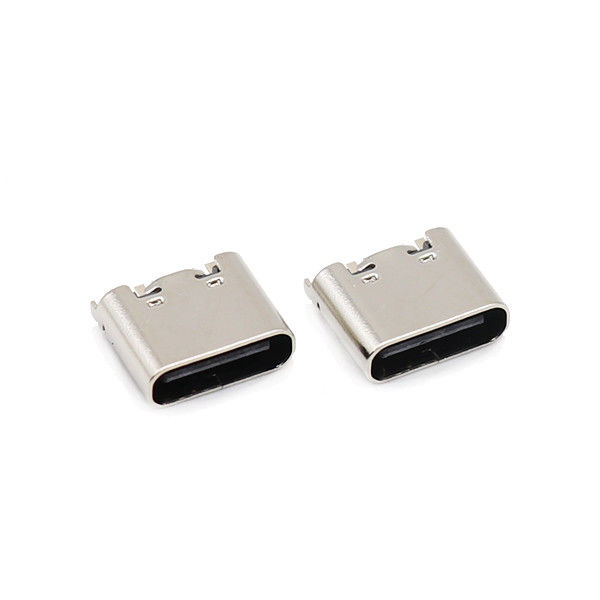

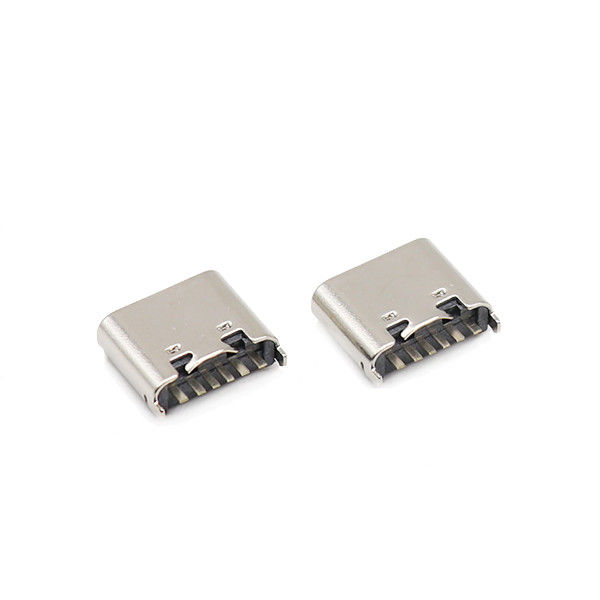

USB Female C Type Connector 6pin 180 Degree Dip 3.1 DIP High Current Charging
Specifications
| Mounting Type | SMT |
| No. Of Positions | 6p |
| Rated current | 3.0A AC |
| Rated voltage | 5V |
| Contact Resistance | 40m/pin ohms MAX |
| Insulation Resistance | 100mohms min 100V DC |
| Insertion Force | 0.5-2.0 kgf |
| Operation Temperature | -25℃ to +85℃ |
| Withstanding Voltage | 100V AC |
| Housing | UL94 V-0 |
| Contact | Copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
Drawing
Feature
The compact Type-C Connectors expanded family supports up to 10 Gbps speeds and offers robust, reliable connectivity in IoT, wearable device and other high-speed data I/O applications.
USB Type-C connectors use high-temperature Nylon or Nylon 64 as housing material and a 3-tier insert-molding process to ensure high-mating durability and electrical reliability of the connector.
Material Specification
1) Mid Plate: stainless steel
2) Front shell : stainless steel
3) Housing: Hig Temperature resistant plastic,UL94 V-0.
4) Contacts : Copper Alloy
5) Housing c0lor: Black
6) Functional area: Au 3u''
7) Solder area: Au : G/F
Product Application
XTK connectors are widely applied to lots of industries, such as unmanned aerial vehicle, cummunications industry ,cusumer electronics,computer peripheral products , action camera manual mini sport DV, rear DVR video recorder , automotive filed, medical equipment , military industry and so on .
Competitive Advantages
1, Strict shipping ,100% tested before delivery
2, we also can provide the customized products as the request of clients
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, samples can be provided for free in 1-3 days .
5, More than 10 year's experience in the electronic business.
