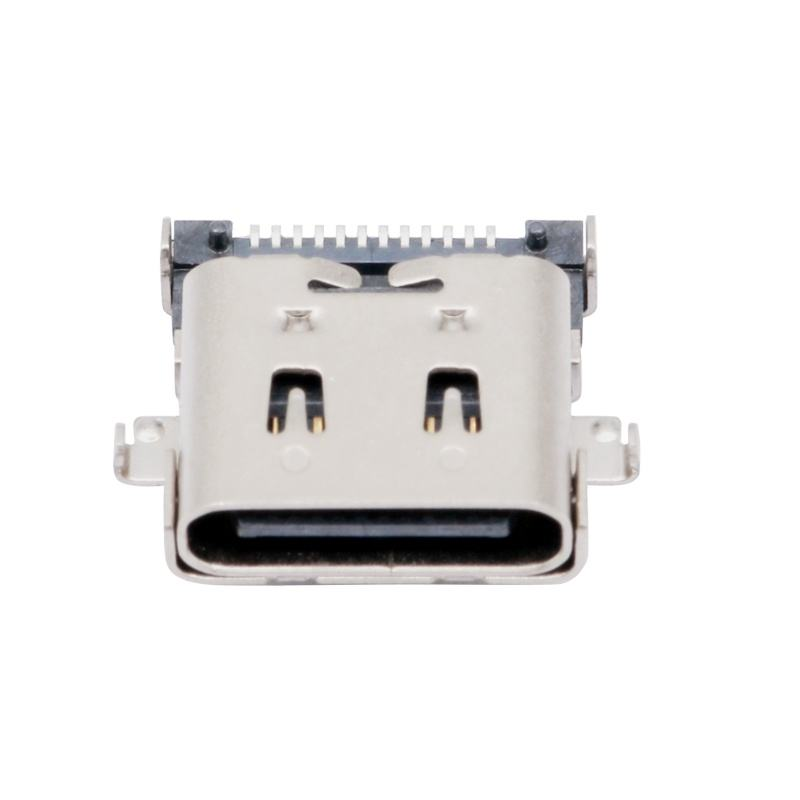

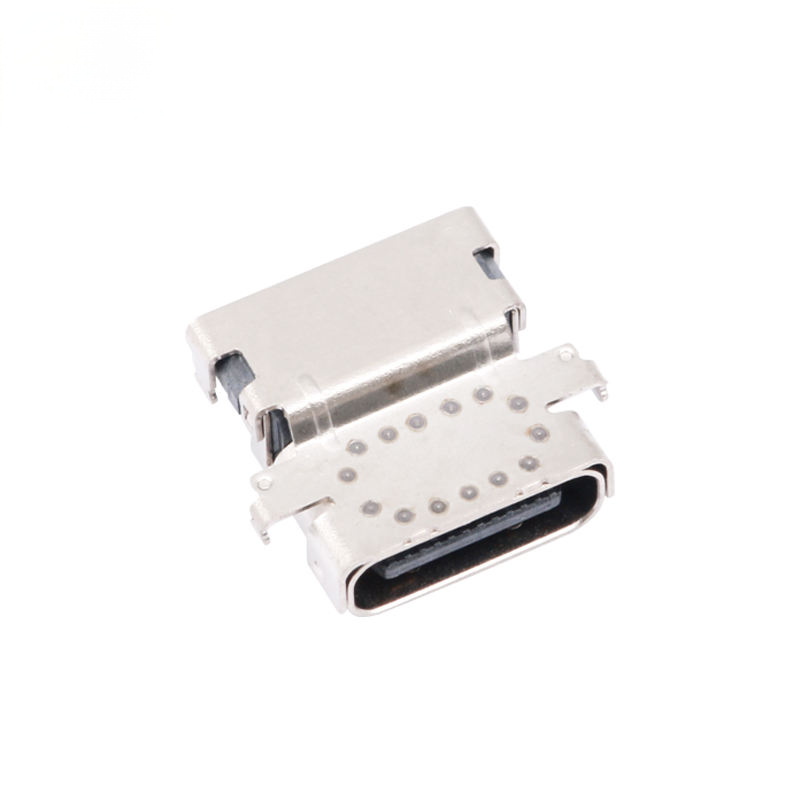

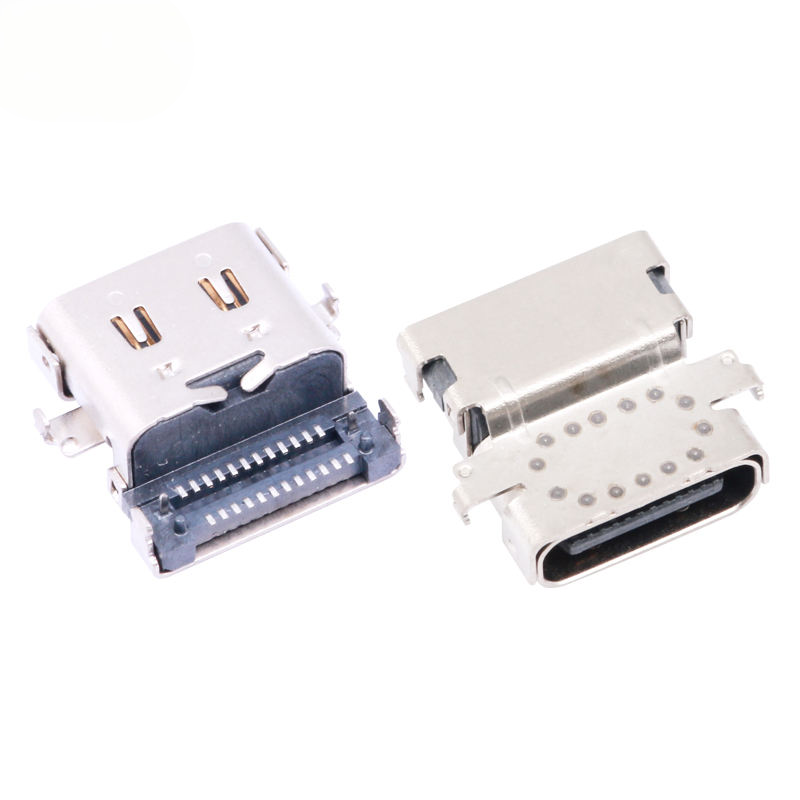

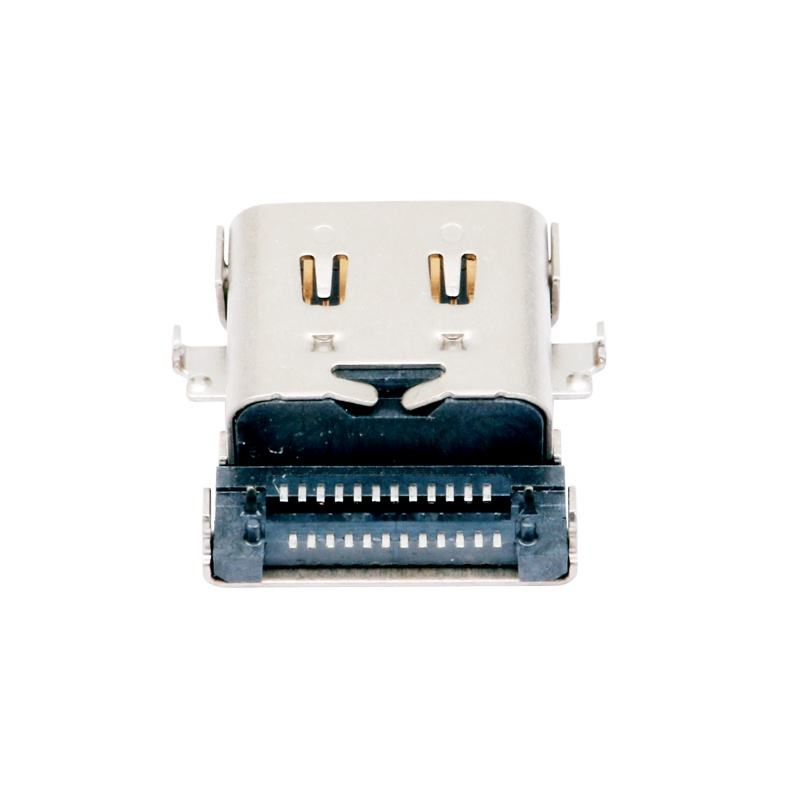

Type-C USB3.2 40 Gbps Waterproof U4 24 Pin SMT DIP

Type-C USB 3.2 40Gbps Waterproof 24Pin Connector | SMT DIP Hybrid PCB Connector

Product Highlights

✅ IPX8 Waterproof Grade | Sealed interface for wet & harsh environment

✅ USB3.2 Gen2x2 40Gbps | High-speed data, backward compatible USB2.0/3.2

✅ Stable High Power Delivery | Supports 5A, 240W PD fast charging, consistent power output under continuous plugging

✅ Multiple PCB Mount Options | SMT / THR Through-Hole Reflow / Dual-row SMT

✅ Anti-Peel Reinforced Structure | Solves engineer pain point: pin desoldering & PCB pad peeling caused by long-term frequent mating

Technical Specifications

Compatibility & Cross Reference

Fully compatible with standard USB-C protocol. Drop-in alternative for Molex / JST / Hirose waterproof Type-C 24-pin board-mount connectors. Pin definition & footprint matched for easy replacement without major PCB redesign.

Product Features

1. 24-pin full pinout, high-speed signal integrity optimized
2. Reinforced locking structure, anti-pad-peel design for repeated plugging
3. Sealed waterproof construction, prevents liquid ingress to the PCB circuit
4. LCP high-temperature housing, stable during reflow soldering
5. Gold-plated contacts, low loss & anti-oxidation for long service life

Product Advantage

🔹 Fix core pain: No easy pin breakage / PCB pad peeling under frequent mating
🔹 One part supports high-speed 40Gbps data + 240W PD power simultaneously
🔹 Multiple mounting forms for flexible PCB layout (SMT / THR / Dual SMT)
🔹 Consistent waterproof performance, verified by IPX8 testing
🔹 Stable signal transmission without high-speed attenuation

Application

• Outdoor handheld devices
• Industrial waterproof controllers
• Marine & underwater peripherals
• Surveillance cameras
• Portable power stations
• Medical waterproof equipment
• Smart automotive peripherals
• Rugged IoT sensors

Packaging

Tape & Reel Packaging: Standard reel packaging, directly compatible with SMT pick & place machines, ready for automated assembly line.

Lead Time & Sample Policy

• Sample: 3 working days
• Bulk order: 1~3 weeks
• MOQ: Negotiable
• Sample Policy: Free samples available, fast sample delivery

Selection Guide for Engineers

1. Confirm mounting type: SMT / THR / Dual-row SMT according to your PCB structure
2. Verify waterproof assembly: IPX8 performance relies on full housing sealing with a housing gasket
3. High-speed layout: Keep differential pair impedance 90Ω, short trace length
4. Power design: Ensure copper thickness matches 5A current-carrying requirement
5. Mating frequency: Choose this reinforced version if mating cycles > 5,000 times

Custom Service

Custom pin assignment, waterproof structure modification, housing surface treatment, customized logo, special plating requirements.

About us

Manufacturing Capability

Professional manufacturer of precision waterproof connectors.

• Workshop: Dust-free molding, stamping, assembly & testing workshop
• Equipment: High-speed stamping machines, injection molding, automatic plating, automatic AOI, IP waterproof test bench, high-speed signal tester
• Certifications: UL, RoHS, REACH compliant
• Custom service: Custom pin assignment, customized housing, special waterproof structure, custom footprint on request

Quality Guarantee
Rigorous production and quality checks in each section, providing 6 6-year warranty for all our Female Connectors.

 Responding within 24 hours
All inquiries will be replied to within 24 hours on working days.

Why Choose Us?

1)  Provide the perfect after-sales service for all our clients

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: For any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications, depending on the selected specification.

Q4: Can this connector be customized?

A: Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
