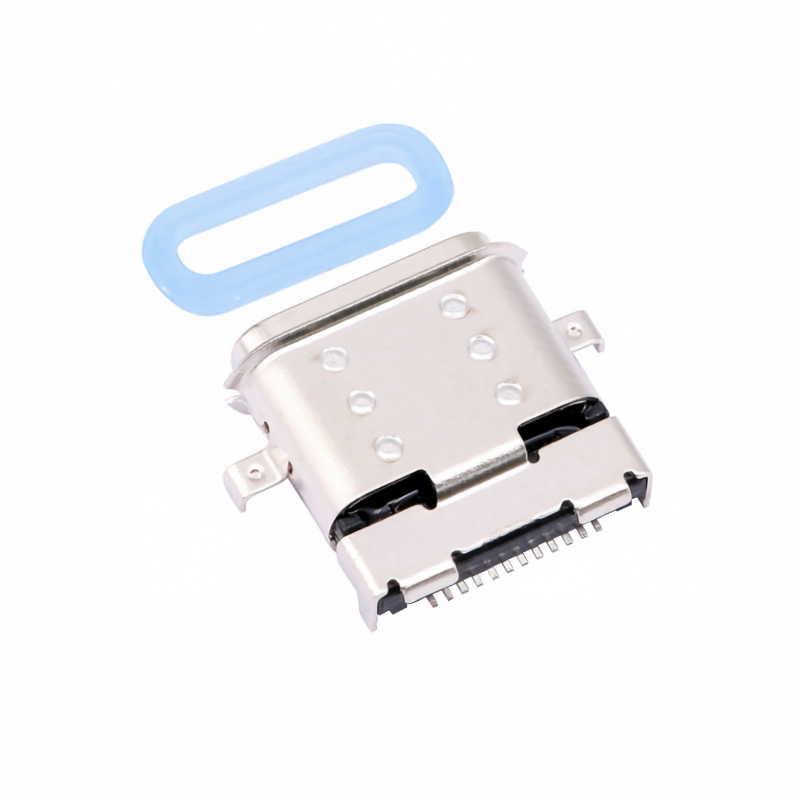

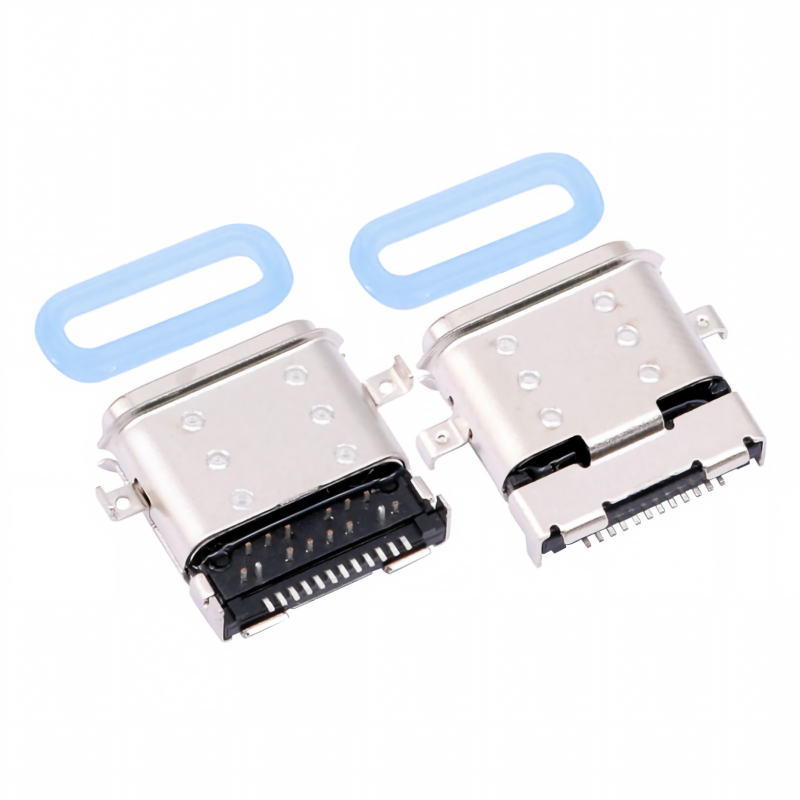

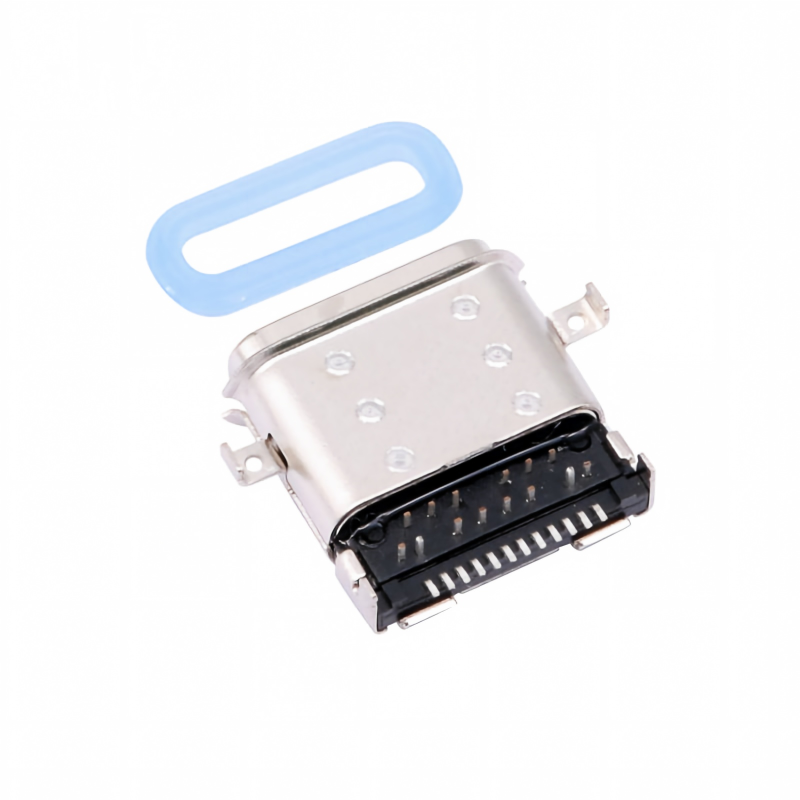

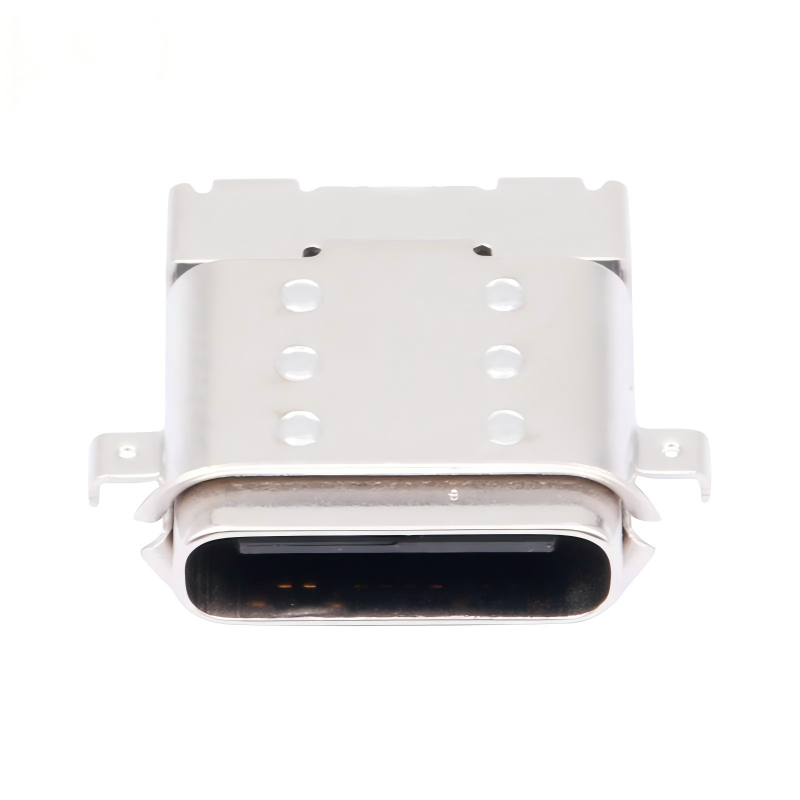

Waterproof USB Type-C 3.1 24Pin SMT Female Socket | IP67 Automotive Charging Port

Product Highlights

• IP67 Sealed Waterproof: Integrated silicone waterproof gasket, dust-tight & temporary immersion resistant, suitable for outdoor & wet vehicle environments
• High Speed & High Power Stable Transmission: USB 3.2 Gen2, stable power delivery up to 100W PD; consistent signal & power output under continuous vibration
• Anti-Board Peeling Reinforced Structure: Extra fixing lugs disperse plugging force, solving a common pain point: pin desoldering / PCB pad peeling caused by long-term frequent plug/unplug
• Multiple Mounting Options Available: 24-pin double-row SMT as standard; THR through-hole & single-row SMT optional for different PCB layout
• Stainless Steel Housing: Anti-corrosion, anti-abrasion, better vibration resistance for automotive-grade scenarios

Technical Specifications

Cross Reference & Replacement

Direct drop-in replacement for Molex / JST / Hirose automotive waterproof Type-C sockets. Same footprint, pin definition unchanged; upgrade with our anti-peel reinforcement structure without PCB redesign.

Note: Provide part number for verification if you need exact cross reference.

Product Features

1. 24-pin full pinout Type-C female, supports full-function USB 3.2 + PD power
2. Pre-installed silicone waterproof ring, no extra sealing assembly needed
3. Reinforced positioning lugs to share plugging stress, reduce pad peeling risk
4. High-temp LCP plastic, compatible with standard SMT reflow process
5. Compact stainless steel shell, anti-rust, anti-loosening under vehicle vibration
6. Strict pin coplanarity control for stable automatic placement

Product Advantage

• Engineer Pain Point Solved: Reinforced anti-peel design, lower PCB failure rate after long-term plugging
• Automotive Grade Reliability: Wide temperature range, vibration resistant, IP67 sealed
• SMT ready: Standard double-row SMT, optional THR, flexible PCB layout
• Stable high-power output: 100W PD, no power drop under continuous working
• Consistent coplanarity: Low defective rate for auto assembly line

Application

Automotive on-board charging port,

 motorcycle/e-bike charging,

outdoor surveillance,

industrial handheld device,

marine equipment,

portable energy storage,

off-road vehicle accessories.

Packaging

Standard: Tape & Reel packaging, suitable for automatic SMT pick & place machine. Custom tray packaging available upon request.

Lead Time & Sample Policy

• Samples: 3 working days
• Bulk order: 1–3 weeks based on quantity
• MOQ: Low MOQ for standard model
• Free samples available, fast sample delivery

Custom Service

Certifications: UL, RoHS, REACH, ISO9001, IATF16949 (automotive line).

Custom service: Custom pin assignment, waterproof structure modification, housing surface treatment, customized logo, special plating requirements.

About Us & Manufacturing Capability

• Dust-free SMT workshop, automatic molding, automatic plating, fully automatic assembly lines
• In-house reliability lab: waterproof test, vibration, shock, temperature cycle, salt spray test
• Independent R&D team, supporting fast custom development
• Strict first article inspection + full in-process quality control

Quality Guarantee
Rigorous production and quality checks in each section, providing 6 6-year warranty for all our Female Connectors.

 Responding within 24 hours
All inquiries will be replied to within 24 hours on working days.

Why Choose Us?

1)  Provide the perfect after-sales service for all our clients

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: For any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications, depending on the selected specification.

Q4: Can this connector be customized?

A: Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
