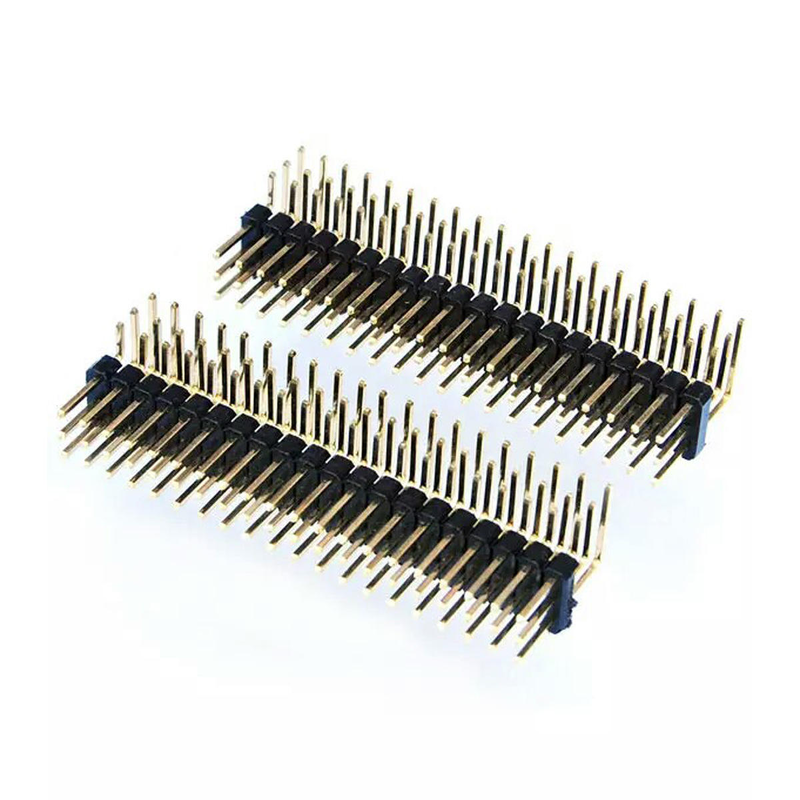

PCB Pin Header 1.0mm Dual Row Bent Pin SMT 180 Degree 90 Degree PBT Material Phosphor Bronze Contacts Pin Length Customizable

PCB Pin Header 1.0mm Dual Row Bent Pin SMT 180 Degree 90 Degree PBT Material Phosphor Bronze Contacts Pin Length Customizable

Highlight

• 1.0 mm fine‑pitch dual‑row SMT bent‑pin, supports 90° right‑angle & 180° flat SMT termination for flexible PCB layout
• Phosphor‑bronze contact beams, stable spring performance, anti‑fatigue for long‑term mating cycles
• PBT UL94V‑0 insulator, excellent reflow heat resistance, fit mass SMT reflow assembly
• Fully customizable: pin length, pin count, plating finish, tape‑and‑reel packaging available
• Strict coplanarity control for SMT pick‑and‑place, lower assembly defect rate for high‑volume production

Product Description

General Mechanical Parameters

Material & Electrical Characteristics

Environment & Soldering Guide

Product Feature

1. Dual‑row 1.0 mm fine pitch, saves PCB footprint for high‑density layout

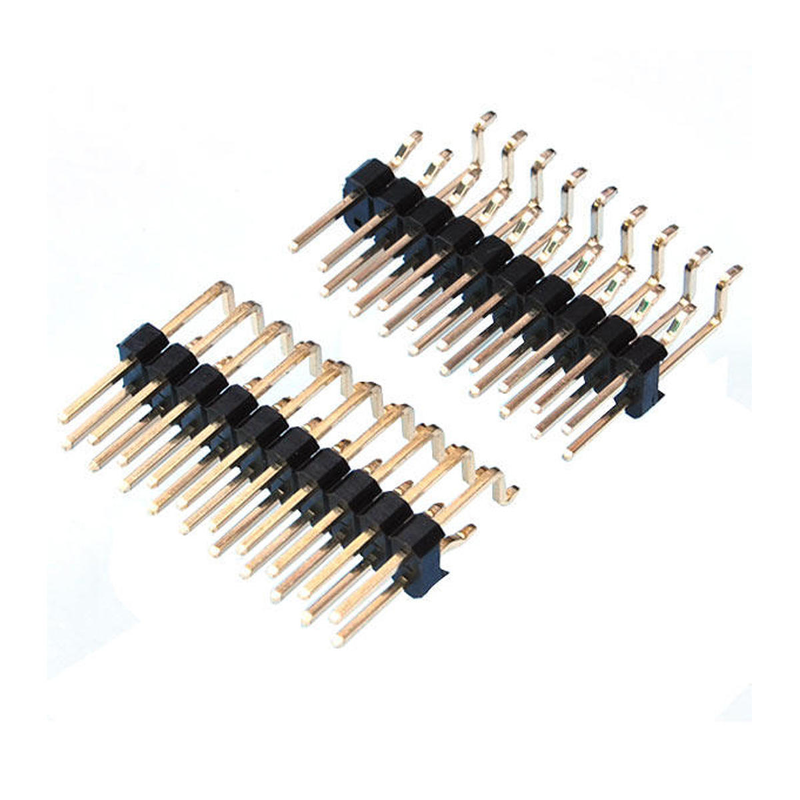

2. Two bent‑pin styles: 90° right‑angle / 180° flat SMT, match different PCB edge layout requirements
3. Phosphor‑bronze contacts: superior elasticity, resist stress relaxation under vibration & temperature cycling
4. PBT UL94V‑0 thermoplastic housing, withstands standard SMT reflow soldering temperature
5. Strict coplanarity for SMT terminals, compatible with automatic pick‑and‑place equipment
6. Flexible customization: pin length, PIN, tin/gold plating, tape‑and‑reel / tube packing options
7. RoHS & REACH compliant, meets global electronic environmental requirements

Product Advantage

1. Layout flexibility: dual‑option 90° /180° bent SMT pins, solve space‑limited edge‑board connection challenges, avoid through‑hole drilling cost
2. Contact reliability: phosphor bronze contact instead of ordinary brass, lower risk of spring fatigue under vibration for industrial‑grade devices
3. Mass‑production friendly: tight SMT coplanarity control, adapt automatic pick‑and‑place & reflow, reduce soldering bad joints in high‑volume manufacturing
4. Cost‑efficient customization: adjust pin length, pin quantity, and plating according to BOM requirement, no need to redesign PCB footprint
5. Thermal stability: PBT housing maintains dimension stability during reflow, no deformation or blistering vs cheap plastic housing

Application

• Industrial control modules & sensor PCBA
• IoT smart devices, wearable electronics
• Medical compact circuit assemblies
• Automotive interior electronic auxiliary units
• Portable instrumentation, test‑and‑measurement equipment
• Communication peripheral boards, embedded system modules

Customization Options

1. Confirm bent‑pin type: choose 90° Right‑Angle for horizontal side‑board connection; choose 180° Flat SMT for low‑profile surface mounting. Wrong angle causes PCB layout mismatch.
2. Define exact pin count: dual‑row = 2 × N positions; specify total positions when sending inquiry.
3. Confirm pin‑length dimension: mating pin length and SMT solder‑tail length are both customizable; provide drawing reference if available.
4. Select plating: Tin plating for low‑mating‑cycle consumer products; gold plating for high‑vibration, humid industrial environment to prevent oxidation.
5. Match mating part: pair with corresponding 1.0 mm pitch dual‑row female header; verify mating dimension before final BOM lock‑in.
6. For SMT production: use tape‑and‑reel packaging for automatic mounting; tube packing for prototype / small batch testing.

Step Custom Process

1. Requirement Collection → 2. Technical Evaluation & Quotation → 3. 3D Drawing Review & Confirmation → 4. Mold / Tooling & Prototype → 5. Sample Test (contact R, retention, reflow) & Approval → 6. Mass Production → 7. Final QC & Shipment.

Our service

Sample Availability & Policy

Samples are to be sent to our customers for free on their request, so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance, and we can ship samples with our courier as well.

Guarantees/Warranties/Terms and Conditions

We provide a product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T, but it is subject to negotiation, such as L/C, PayPal, Western Union, and more.

After Sales Service

Excellent service is offered through our network of offices and head office.
Please contact our marketing sales department either by phone or e-mail, or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.

FAQ

Q: What's your MOQ?

A: Our MOQ usually comes to 1000 pcs, but we accept small order quantities for testing.

Q: Can I visit your factory?

A: Welcome to visit our factory, and we will show you our professional production process, and hoping we can have long-term cooperation with you.

Q: What's your sample time? What's your delivery time?

A: 7 days for samples, and 15-20 days for mass production. It depends on the quantity.

Q: How do I inspect my goods?

A: You can inspect by visiting the factory, or ask a third party to inspect, or by picture inspection.

Q: How much does it cost to ship to my country?

A: The freight will be given by the freight company based on your Gross Weight and CBM.

Q: How do I know if you ship out my order?

A: The tracking number(DHL, UPS, FedEx, TNT, EMS, etc.), Air Waybill, or B/L by Sea will be sent to you as soon as your goods are shipped out. We also follow up on the delivery and keep you informed. The helpful after-service is provided. We support what you sell.

Q: Can I make personalized/customized products?

 A: Sure, just send us your drawing or sample.
