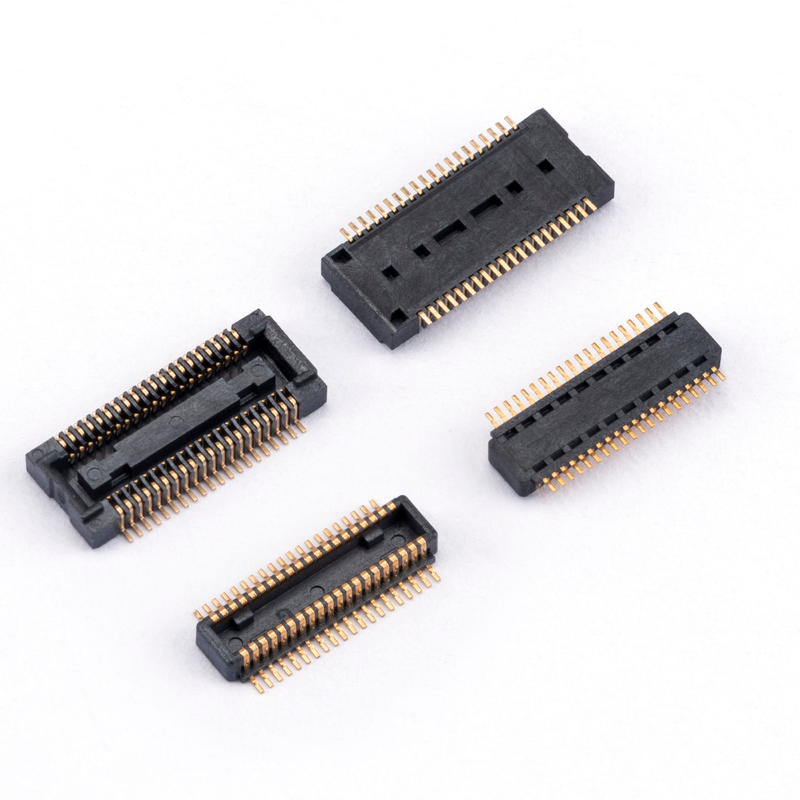

0.4mm Double Row Vertical SMT Waterproof Male-Female PCB Board-to-Board Connector Gold-Plated
Product Description
| Item |
Specification |
| Product Type |
Board-to-Board Connector / BTB Connector |
| Connector Style |
Male & Female Pair |
| Pitch |
0.4mm |
| Number of Rows |
Dual Row |
| Mounting Type |
SMT (Surface Mount Technology) |
| Mounting Direction |
Vertical / 180° |
| Contact Material |
Copper Alloy / Phosphor Bronze |
| Contact Plating |
Gold Plated |
| Insulator Material |
LCP (Liquid Crystal Polymer) |
| Insulator Color |
Black |
| Connector Height |
Customized according to application requirements |
| Contact Positions |
Multiple Pin Counts Available |
| Operating Temperature |
Typical -40°C to +85°C (model dependent) |
| Rated Voltage |
Up to 30V–60V (model dependent) |
| Rated Current |
Up to 0.3A/contact (typical fine pitch design) |
| Contact Resistance |
Approx. ≤90mΩ (model dependent) |
| Insulation Resistance |
≥50MΩ |
| Withstanding Voltage |
100–150V AC range (model dependent) |
| Durability |
30–50 mating cycles (model dependent) |
| Packaging |
Tape & Reel for SMT assembly |
The board-to-board connector is the most powerful connector product of all connector products. It is mainly used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, etc. Military manufacturing and other industries. At present, the main spacing of board-to-board connectors is 0.4mm 0.5mm, 0.8mm, 1.00m, 1.27mm and so on.
Feature
1. Space-Saving Vertical PCB Connection
The vertical SMT board-to-board design allows two PCBs to be connected in a stacked configuration, making it suitable for products where PCB space is limited.
Typical applications:
- Compact embedded systems
- Industrial controllers
- Smart devices
- Portable electronic equipment
2. Flexible Stacking Height Options
The connector supports multiple mating heights:
4.0mm / 4.5mm / 5.0mm / 5.5mm / 6.0mm / 6.5mm / 7.0mm / 7.5mm / 8.0mm / 8.5mm
This allows engineers to select suitable PCB spacing according to enclosure structure and internal component layout requirements.
3. SMT Manufacturing Compatibility
The SMT terminal design supports automated surface mounting processes, helping simplify PCB assembly and improve production efficiency.
Common SMT BTB connectors use tape-and-reel packaging options for automated placement equipment.
Payment term and delivery
1. Delivery Time: 3-15 working days after order confirmed and the payment received.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, PayPal, Western Union, or other methods.
5. Samples: Samples are available to check the quality & specification, and it is free for 1-30 pcs.
6. Packing: Inside:PE bag, Tray, Tube, Box, Tape+Reel. Outside: export carton
7. Shipping method: UPS, DHL, FEDEX, EMS & air transportation & sea transportation.
Technical Selection Guide
0.4mm Pitch Board to Board Connector
Recommended for:
- Ultra-thin consumer electronics
- Portable devices
- Compact display modules
- Wearable electronics
Advantages:
- Higher contact density
- Reduced PCB occupied area
- Suitable for miniaturized designs
0.5mm Pitch BTB Connector
Recommended for:
- Industrial control modules
- Communication equipment
- Embedded computing devices
- Smart electronic products
Advantages:
- Balance between size and mechanical strength
- Flexible pin count options
- Suitable for general high-density PCB connection
0.8mm Pitch Board Connector
Recommended for:
- Industrial electronics
- Automotive modules
- Server and computing equipment
- Higher mechanical requirement applications
Advantages:
- More robust mating structure
- Suitable for higher pin-count designs
- Easier assembly compared with ultra-fine pitch connectors
Applications
Industrial Electronics
- Industrial control boards
- Automation equipment
- Embedded controllers
- Measurement instruments
Communication Equipment
- Network devices
- Communication modules
- Signal processing units
Consumer Electronics
- Smart terminals
- Portable electronic devices
- Display modules
- Embedded systems
AI & Computing Related Hardware
Potential applications include:
- AI edge computing devices
- Embedded AI controllers
- Intelligent terminal hardware
- Compact computing modules
Advantage
Compact 0.8mm Pitch Design for Space-Saving PCB Layout
The 0.5mm pitch structure allows more signal contacts to be integrated into a limited PCB area compared with conventional larger pitch connectors.
This makes it suitable for:
- Compact industrial controllers
- Embedded computing systems
- Communication modules
- Smart electronic devices
Fine-pitch BTB connectors are commonly selected for applications requiring reduced PCB size and higher component density.
Reliable PCB-to-PCB Modular Connection
The male/female mating design enables direct connection between two PCBs, supporting modular electronic architectures.
Typical design benefits include:
- Reduced wiring requirements
- Simplified internal assembly
- Improved space utilization
- Easier module integration
SMT Compatible for Automated Manufacturing
The SMT termination structure allows compatibility with modern PCB assembly lines, including automated placement and reflow soldering processes.
This helps manufacturers optimize:
- Production efficiency
- Assembly consistency
- PCB manufacturing workflow
FAQ
Q: Do you have a catalogue? Can you send me the catalogue to check all your products?
A: Yes, you can contact us online or send an Email to get the catalogue.
Q: I can't find the product in your catalogue. Can you make this product for me?
A: Our catalogue shows most of our products, but not all. Just let us know what product you need, and how many you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making an ordinary mould will take about35-45 days.
Q: Can you provide a sample? Are these samples free?
A: Yes, we provide 5-10 pcs of connector free samples for testing. But you have to pay for the shipping cost
Q: What about your delivery time?
A: Stock goods are delivered within 1 day; customized goods are delivered within 5-7days
Q: How to ship my order?
A: For small packages, send them by Express, such as DHL, FedEx, UPS, TNT, EMS. That's Door-to-Door service. For big packages, we can send them by Air or by sea. We use standard export cartons. We will be responsible for any product damage caused during delivery.
6. Q: What kind of payment do you accept? Can I pay RMB?
A: Weaccept T/T(Wire transfer), Western Union, and PayPal. Please be sure that we can receive the same amount as the Invoice. And you can pay money in RMB. No problem.
7. Q: How about your company's quality control
A: Strictly obey ISO9001, IQC, OQC, IPQC, QA occupy 10% of our Quality department. The CCD test is applied to 99% of our company's product applications.
Q: I need your price list of all your products. Do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, it's impossible to make all of their prices on a list, and the prices are always changing because of the material cost and quantity. And you can give us a list of all of the items you need; we will confirm carefully one by one and give you a specification and price list
Q: Can you make customized products and customized packing?
A: Yes. We have made a lot of customized
products for our customers formerly (mainly wire harnesses). About customized packing, there is no problem for we put your logo or other information on the packing. Just have to point out that it will cause some additional cost.
Q: What certificates do you have?
A: CE, CQC, UL, ISO9001, ISO14001, IATF16949, ISO45001, QC080000, etc.
