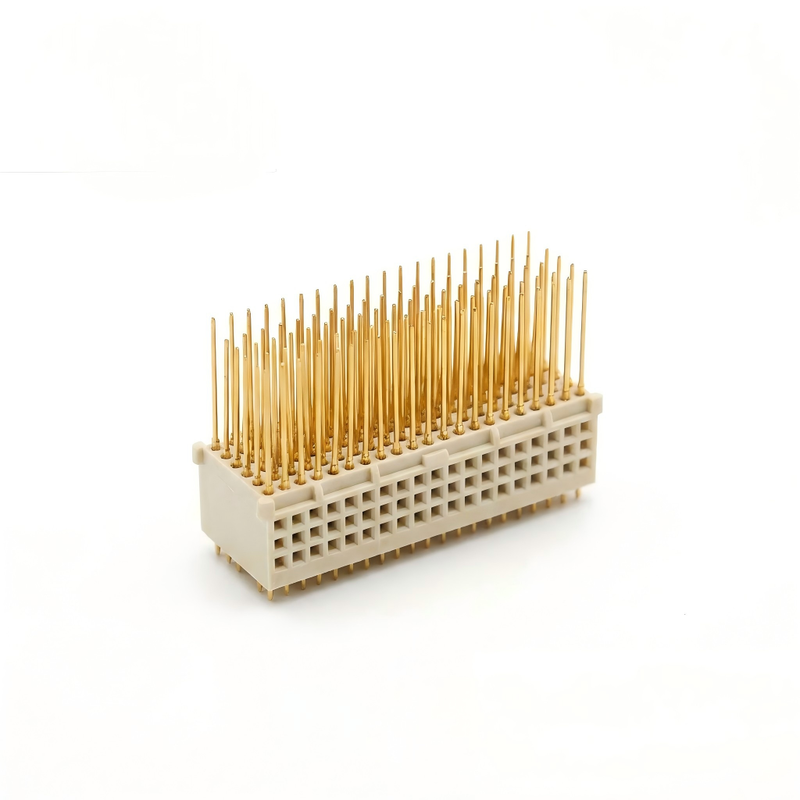

BTB 95 Pin Female Copper Alloy Press-fit Type Fish-eye Header Connector High-Speed Server Mainboard 1.5A 12V
Product Description
| Item |
Specification |
| Product Type |
Board to Board Connector / BTB Connector |
| Product Name |
2*5 Pin 0.4mm Pitch Board to Board Connector |
| Connector Type |
PCB to PCB Interconnect Connector |
| Pitch |
0.40mm |
| Number of Positions |
10 Pins (2 Rows × 5 Pins) |
| Contact Arrangement |
Dual Row |
| Mounting Type |
SMT (Surface Mount Technology) |
| Connector Orientation |
Vertical / Stacking Type (Based on mating design) |
| Contact Material |
Phosphor Bronze (Typical for Fine Pitch BTB Series) |
| Insulator Material |
High Temperature Thermoplastic (LCP Typical) |
| Contact Plating |
Gold Plating / Gold Flash (According to configuration) |
| Application |
High-density PCB interconnection |
| Assembly Process |
Automated SMT Assembly |
| Mating Structure |
Plug & Receptacle Pair |
| Pitch Category |
Fine Pitch Connector |
| Operating Temperature |
According to product configuration |
| Electrical Rating |
Depends on terminal design and customer requirement |
Board-to-board connector is the most powerful connector product of all connector products. It is mainly used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, etc. Military manufacturing and other industries. At present, the main spacing of board-to-board connectors are 0.4mm 0.5mm, 0.8mm, 1.00m, 1.27mm and so on.
Features
Ultra-Fine 0.4mm Pitch Design
The 0.4mm pitch structure allows more contacts to be integrated into a smaller footprint compared with conventional board-to-board connectors, making it suitable for compact PCB designs.
Space-Saving PCB Interconnection
The low-profile BTB structure helps reduce the installation area between two PCBs, supporting thinner and more compact electronic product designs.
SMT Compatible for Automated Assembly
The surface mount design supports modern PCB assembly processes, including automated pick-and-place production lines.
High-Density Signal Connection
The 2-row 10-pin configuration provides a compact signal interconnection solution for communication between PCB modules.
Payment term and delivery
1. Delivery Time: 3-15 working days after order confirmed and the payment received.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, PayPal, Western Union or others method.
5. Samples: Samples are available to check the quality & specification, and it is free for 1-30 pcs.
6. Packing: Inside:PE bag, Tray, Tube, Box, Tape+Reel. Outside: export carton
7. Shipping method: UPS, DHL, FEDEX, EMS & air transportation & sea transportation.
Applications
Consumer Electronics
- Smartphones
- Tablets
- Wearable devices
- Portable terminals
Industrial Electronics
- Industrial controllers
- Embedded systems
- Measurement equipment
- Automation modules
AI & Smart Hardware
- AI edge devices
- Intelligent control terminals
- Compact computing modules
- Smart cameras
Medical Electronics
- Portable medical instruments
- Diagnostic equipment
- Monitoring devices
Why Choose 0.4mm Pitch BTB Connector?
For product engineers and purchasing teams, the key evaluation factors are:
1. Space Efficiency
0.4mm pitch helps achieve higher contact density within limited PCB space.
2. Manufacturing Compatibility
SMT mounting supports automated production processes and simplifies PCB assembly.
3. Flexible Module Design
BTB connectors enable modular PCB architectures, allowing different circuit boards to be combined within compact equipment.
4. Application Adaptability
Suitable for industries requiring compact design, high-density interconnection, and reliable PCB integration.
