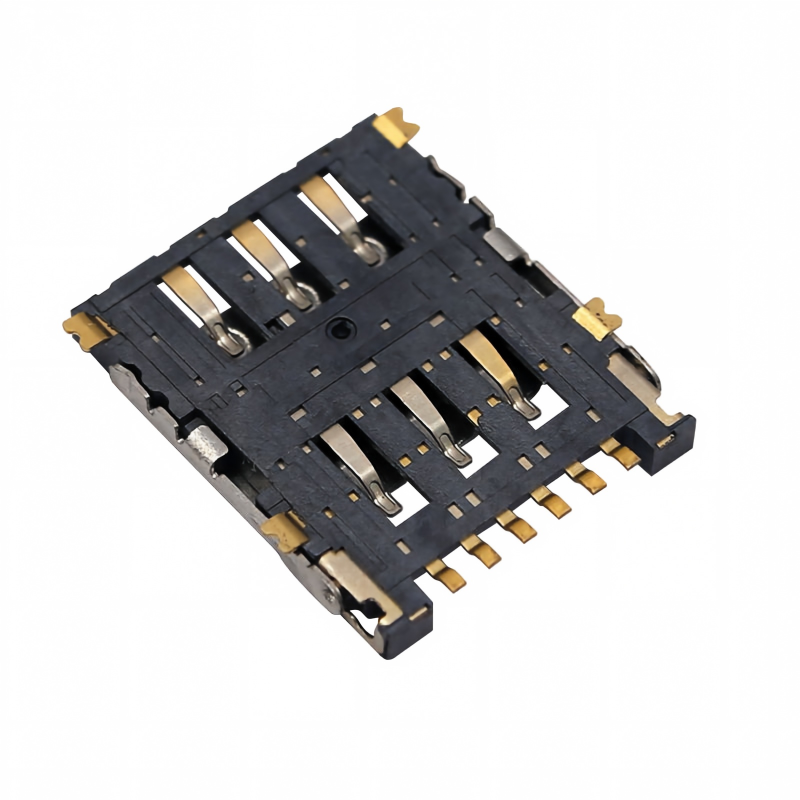

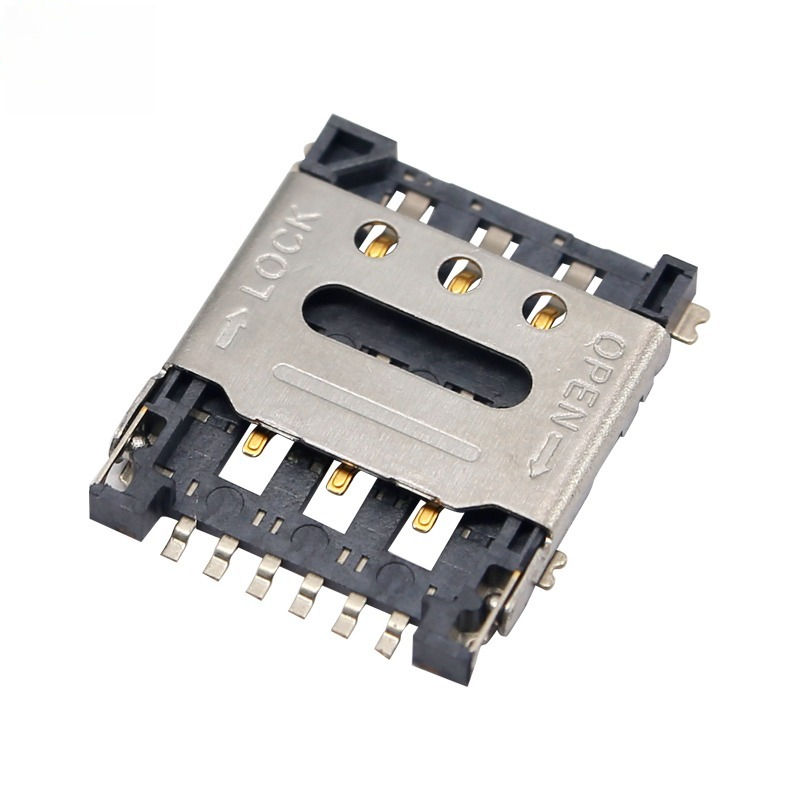

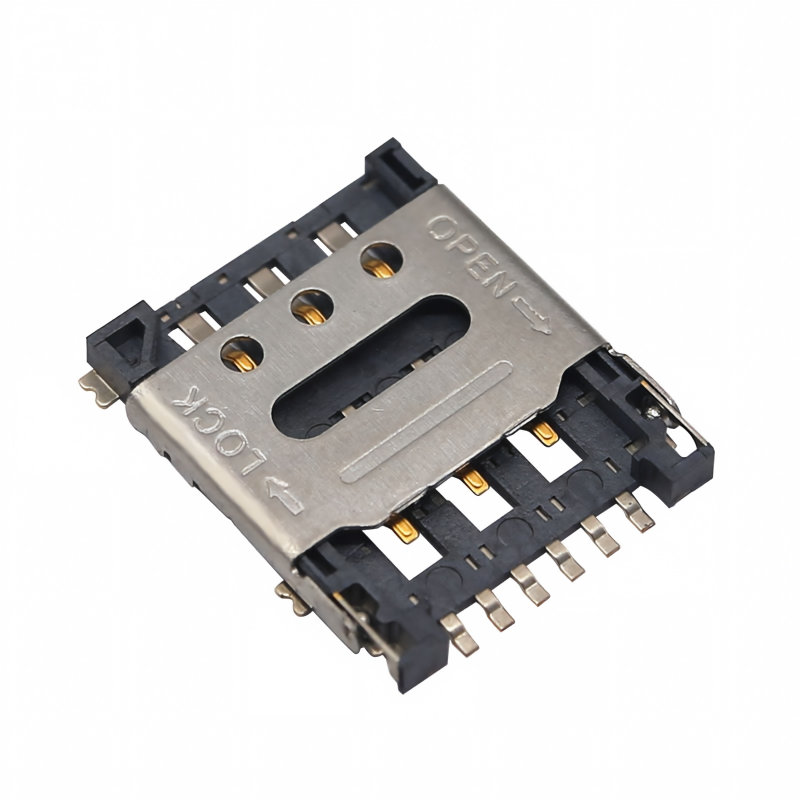

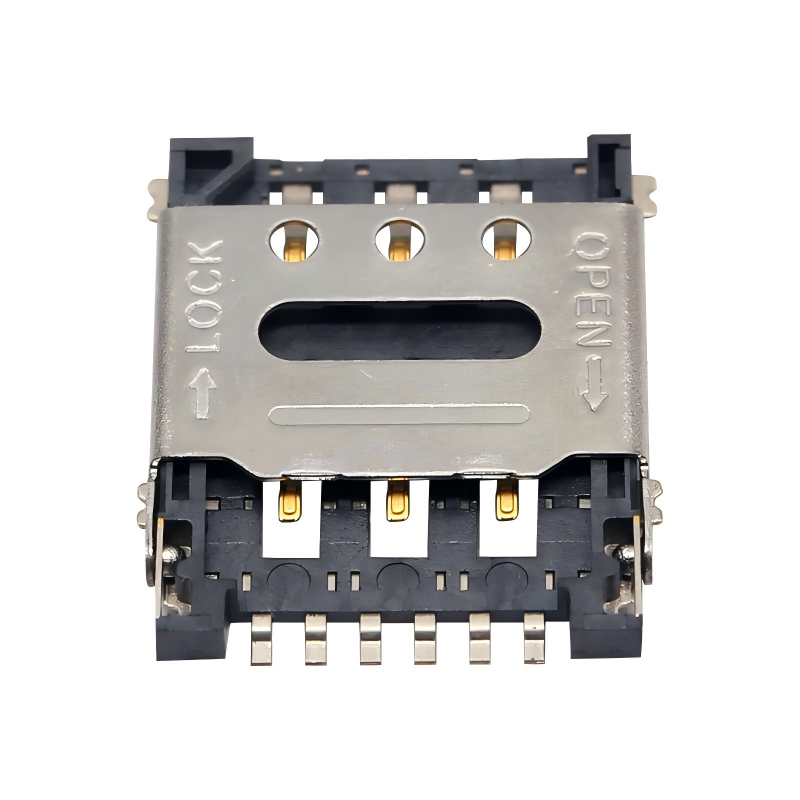

Nano SIM Card Slot Connector 6 Pin Flip Cover Style 1.45H PCB Mounting Nickel Gold Plating

Nano SIM Card Slot Connector 6 Pin Flip Cover Style 1.45H PCB Mounting Nickel Gold Plating

Product Description

Feature

1. General characteristics

   Dimensions:21.24LX17.76WX1.32H mm

   Weight:1.0g

   Contact principle: Friction technology

   Operating position: shaft up/down/horizontal

   Mounting system:SMT(post optional)

   Durability:1,500 cycles min

2. Mechanical characteristics

   Insulation material: Thermoplastic

3. Electrical characteristics

   Number of contacts:6pins

   Contact resistance:50MΩ typical,1000 MΩ max

   Insulation resistance:>1000 MΩ/500V DC

4.Solderability

   Wave: not applicable

   Vaporphase:215^oC30sec Max

   IR reflow:230^oC,15sec Max

   Manual soldering:360^oC,3sec.Max

5. Environmental characteristics

  Operating temperature-40^oC +85^oC

  Operating humidity:10%≈+95%RH

  Storage temperature:-40^oC≈+85^oC

  Storage humidity:10%≈95%RH

  Thermal shock: -40^oC≈+85^oC,5cycles

  Damp Heat:40^oC,90%RH,10days

  Salt-mist:35^oC,5%Nacl,24H

Applications

IoT & M2M Devices

Suitable for compact connected devices requiring removable cellular connectivity:

• Industrial IoT gateways
• Smart meters
• Asset trackers
• GPS trackers
• Remote monitoring devices
• M2M communication terminals

4G / 5G Communication Equipment

Potential applications include:

• 4G LTE terminals
• 5G CPE devices
• Cellular routers
• Wireless gateways
• Mobile communication modules
• Portable hotspots

Industrial Electronics

The compact PCB mounting structure can be considered for:

• Industrial controllers
• Remote data acquisition equipment
• Smart monitoring devices
• Industrial gateways
• Connected sensors

Consumer & Portable Electronics

Possible applications include:

• Portable terminals
• Handheld devices
• Smart devices
• POS terminals
• Portable communication equipment
• Embedded wireless products

Our Service

2. Sufficient Production Capacity---solve the troubles of large orders for you
3. Professional Customization---provide one-stop service for connectors
4. Solve Problems---all production problems we will solve for you before shipment
5. Fast Delivery---provide multiple delivery solutions to save logistics costs

FAQ

1): Can you send Free samples for quality check?
Yes. In most cases, we can provide samples for Free.

2): How does your factory apply quality control?
- Before production, XTK has a meeting with all management people to confirm all product details
- We have high-precision punching equipment, high-precision injection molding equipment, and fully automated production equipment to strictly control the product quality.
- All the materials will be checked by sales and production management before use.
- Each production line has a team leader to monitor quality.
- Specialized quality controllers check quality on finished products.
We will keep you posted on the updated order status in time.

3): Why is your product so cost-effective?
- With our mission to help our customers cut down overall costs, we don't believe in an overpriced strategy.
- XTK has been striving to do our best to keep prices as low as possible without sacrificing quality. Beyond that, XTK improves the competitiveness of manufacturing costs by actively seeking the best possible component options and managing supply chain logistics.
So, we could help ease your capital pressure and develop a mutually beneficial business relationship together.

4. Why should you buy from us, not from other suppliers?
-15 years of precision connector manufacturing -Strong technical innovation and R&D team -Designated supplier for renowned enterprises -Customized services and solutions -Low MOQ production
