Product Details:
|
| No. Of Positions: | 6p | Rated Current: | 3.0A AC |
|---|---|---|---|
| Rated Voltage: | 5V | Contact Resistance: | 40m/pin Ohms MAX |
| Insulation Resistance: | 100mohms Min 100V DC | Withstanding Voltage: | 100V AC |
| High Light: | Sinking Plate Type C Connectors,0.8MM Type C Connectors,0.8MM usb c female connector |
||

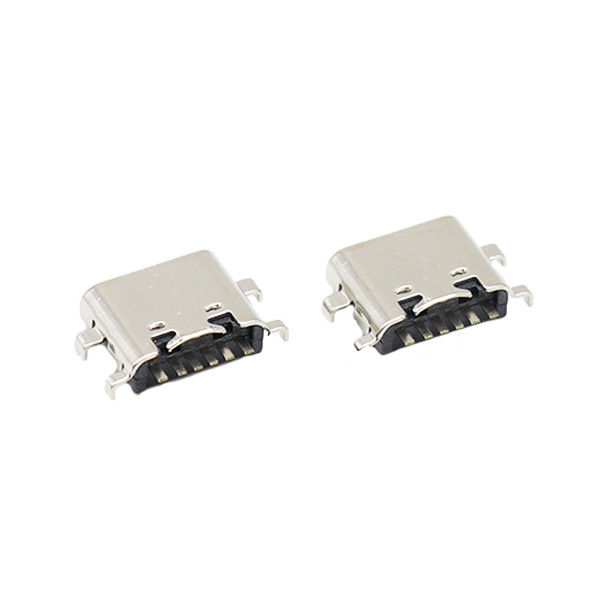

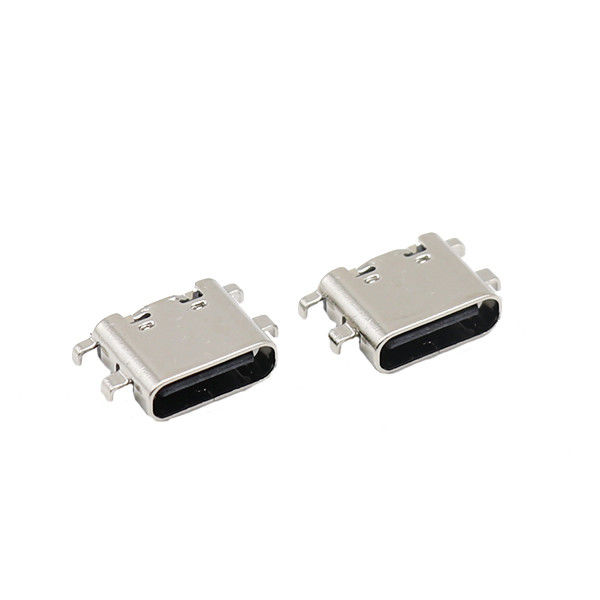

USB Type-C 6pin Socket PCB Sinking Plate Female 0.8MM 3.1 High-Speed Transmission Data Interface
Specifications
| Mounting Type | SMT |
| No. Of Positions | 6p |
| Rated current | 3.0A AC |
| Rated voltage | 5V |
| Contact Resistance | 40m/pin ohms MAX |
| Insulation Resistance | 100mohms min 100V DC |
| Insertion Force | 0.5-2.0 kgf |
| Operation Temperature | -25℃ to +85℃ |
| Withstanding Voltage | 100V AC |
| Housing | UL94 V-0 |
| Contact | Copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |

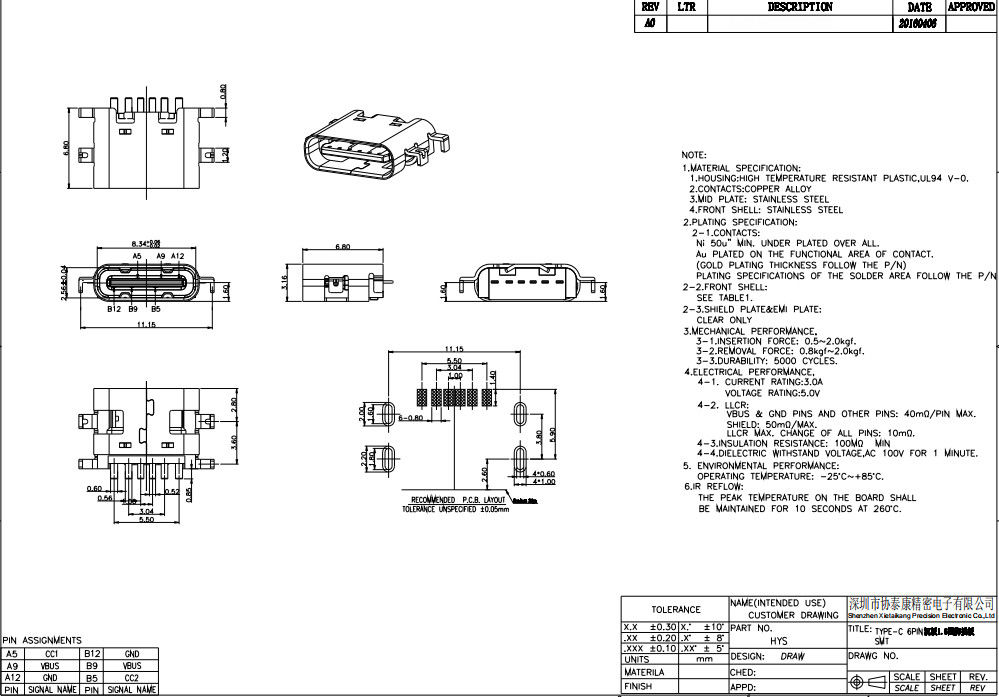

Drawing
Material Specification
1) Mid Plate: stainless steel
2) Front shell : stainless steel
3) Housing: Hig Temperature resistant plastic,UL94 V-0.
4) Contacts : Copper Alloy
Feature
The compact Type-C Connectors expanded family supports up to 10 Gbps speeds and offers robust, reliable connectivity in IoT, wearable device and other high-speed data I/O applications.
USB Type-C connectors use high-temperature Nylon or Nylon 64 as housing material and a 3-tier insert-molding process to ensure high-mating durability and electrical reliability of the connector.
Product Application
XTK connectors are widely applied to lots of industries, such as unmanned aerial vehicle, cummunications industry ,cusumer electronics,computer peripheral products , action camera manual mini sport DV, rear DVR video recorder , automotive filed, medical equipment , military industry and so on .
FAQ
Q: Are you a factory or trading company?
A: We are a factory, our price is competitive.welcome to visit our factory.
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q: How could I get a sample?
A: Free sample,you can take it from our office by your express delivery or pay express fee to us to send you.
Q: What is your warranty ?
A: Within 90 days after shipment if quality problem we will solve it well or we accept return of goods and refund your money .
