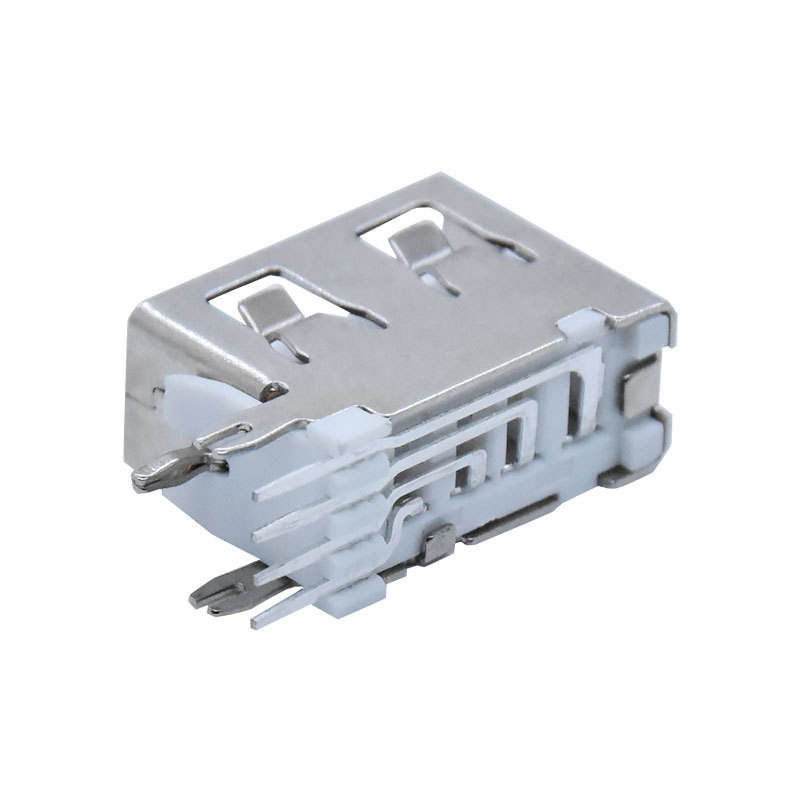

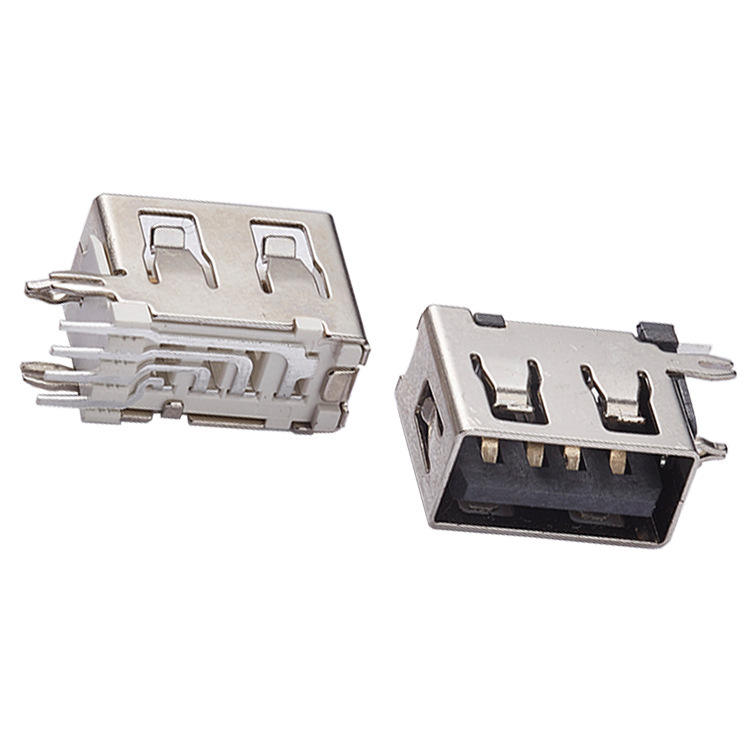

USB Type A Female Short Body 10.0 Insert Black White Orange Plastic 90 Degree Bend Connector

Product Highlights

✅ Transmission Protocol: USB 3.0 (backward compatible USB2.0/1.1); USB4.0 optional

✅ Pin Soldering Option: SMT / THR Through-Hole Reflow / Double-row SMT

✅ Anti Board Peel-off Design: Reinforced anchor structure, solves common pain point: pin cracking & pad peeling from PCB under long-term repeated plugging

Technical Specifications Table

Product Features

• Short body 10.0 insert, compact 90° right angle, saves PCB vertical space
• Reinforced anchor boss to resist board peel-off under cyclic plugging

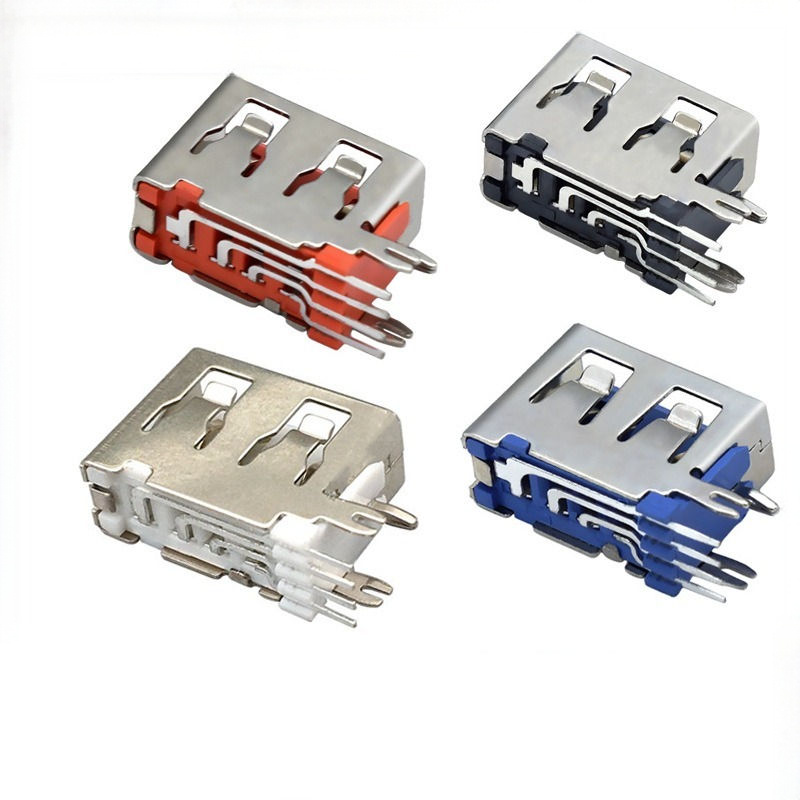

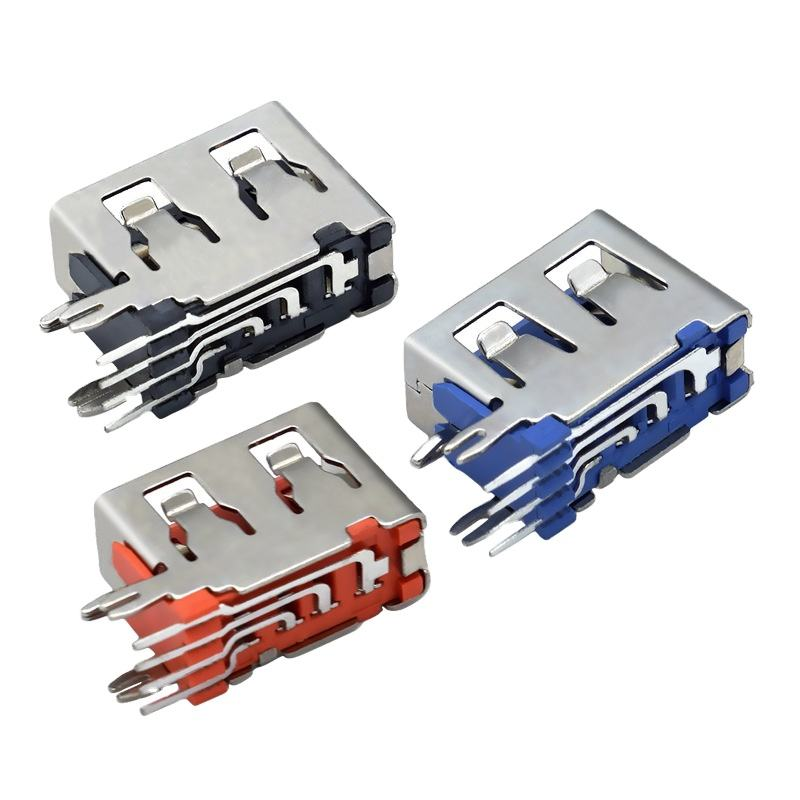

• Multi-color housing (Black/White/Orange) for circuit identification
• High-temperature plastic, suitable for reflow soldering
• Sealed structure optional for IPX7/IPX8 waterproof application
• Stable high-current path, suppresses power fluctuation during PD fast charging

Product Advantage

• Anti-peel reinforced locking structure, eliminates failure risk of pad lifting & terminal breakage after frequent plugging
• Clear power & protocol rating, avoids ambiguous parameter mismatch for power bank, industrial controller projects
• Multiple soldering type options (SMT / THR / Double-row SMT) to match different PCB assembly processes
• Reel tape packaging, direct feeding for SMT automatic placement machine
• Consistent impedance control, stable signal + power co-transmission
• Strict gold plating thickness control, long service life and low contact resistance

Application

• Industrial control panel & waterproof IOT devices
• PD fast charger, power bank, docking station
• Smart home, outdoor surveillance equipment
• Medical handheld devices (non-implant)
• Automotive auxiliary electronics (non-automotive AEC-Q100 unless specified)
• Portable test & measurement instruments

Packaging

Standard: Tape & Reel (Reel packing), ready for automatic pick-and-place SMT machine, direct loading on your production line. Tray packing is available upon request.

Lead Time & Sample Policy

• Sample: 3 working days
• Bulk order: 1–3 weeks, depending on quantity & customization
• MOQ: Low MOQ for standard models
• Free samples available; fast sample release for engineering validation

Custom Service

Certifications: RoHS, REACH, UL94-V0.

Custom support: waterproof sealing modification, pin assignment, plating specification, housing height, customized tape reel.

Custom pin assignment, waterproof structure modification, housing surface treatment, customized logo, special plating requirements.

About us & Manufacturing Capability

We are a professional precision connector manufacturer focusing on USB, FPC, BTB, Type-C, and high-speed interconnect components.

• Automatic high-speed stamping, injection molding, 3D CCD full inspection
• In-house reliability lab for mating cycle, salt spray, thermal shock, and impedance testing
• Independent tooling workshop, fast mold modification
• Stable supply chain, strict IQC/IPQC/FQC quality control
• Support long-term NPI program, formal PCN notification mechanism

Quality Guarantee
Rigorous production and quality checks in each section, providing a 1-year warranty for all our Female Connectors.

Responding within 24 hours
All inquiries will be replied to within 24 hours on working days.

Why Choose Us?

1)  Provide the perfect after-sales service for all our clients

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: For any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications, depending on the selected specification.

Q4: Can this connector be customized?

A: Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
