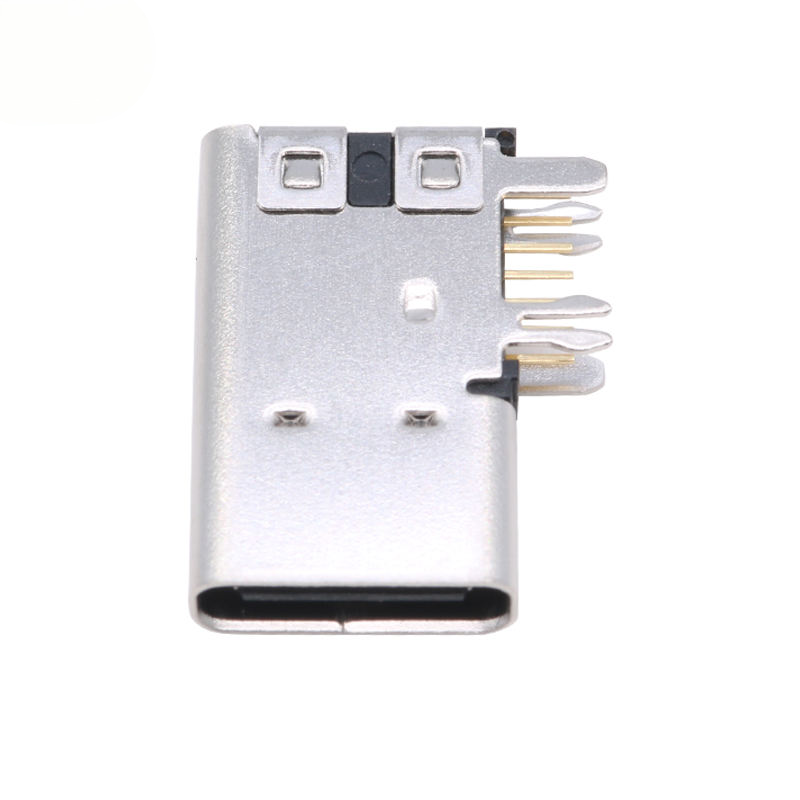

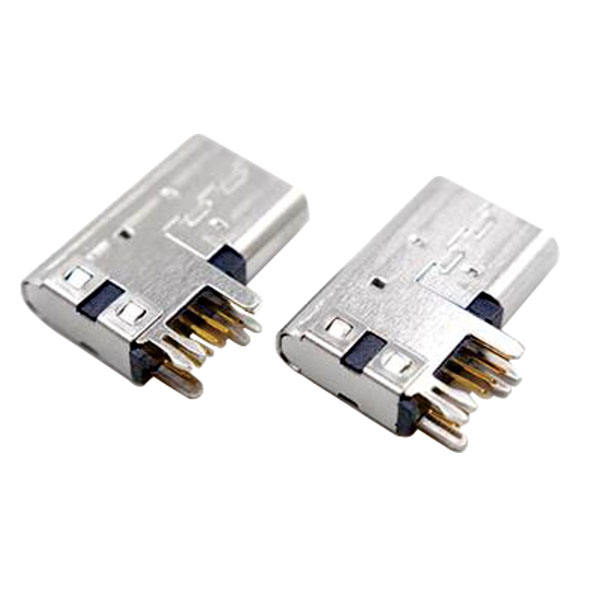

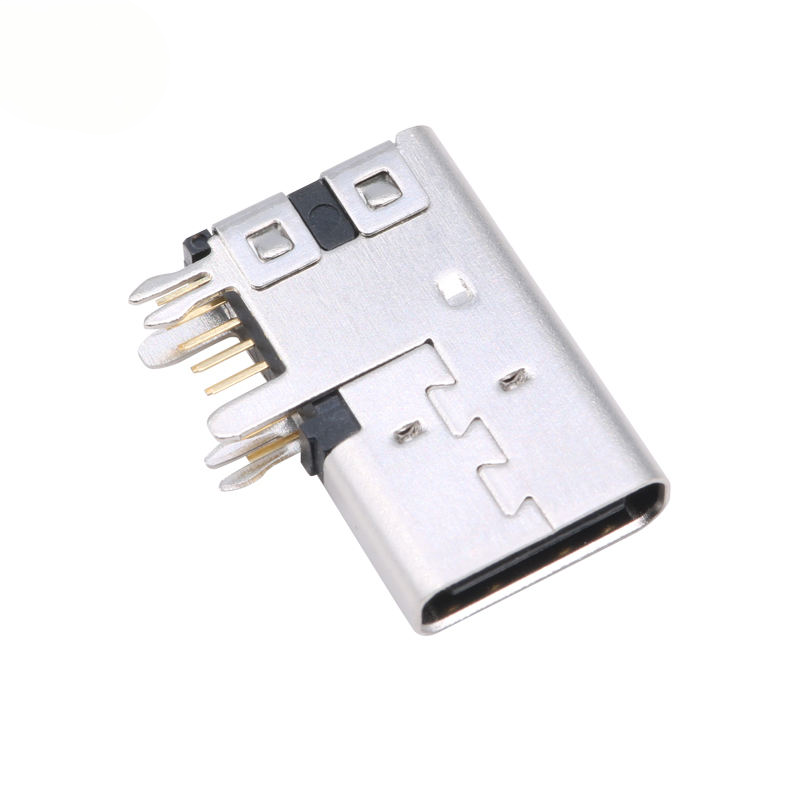

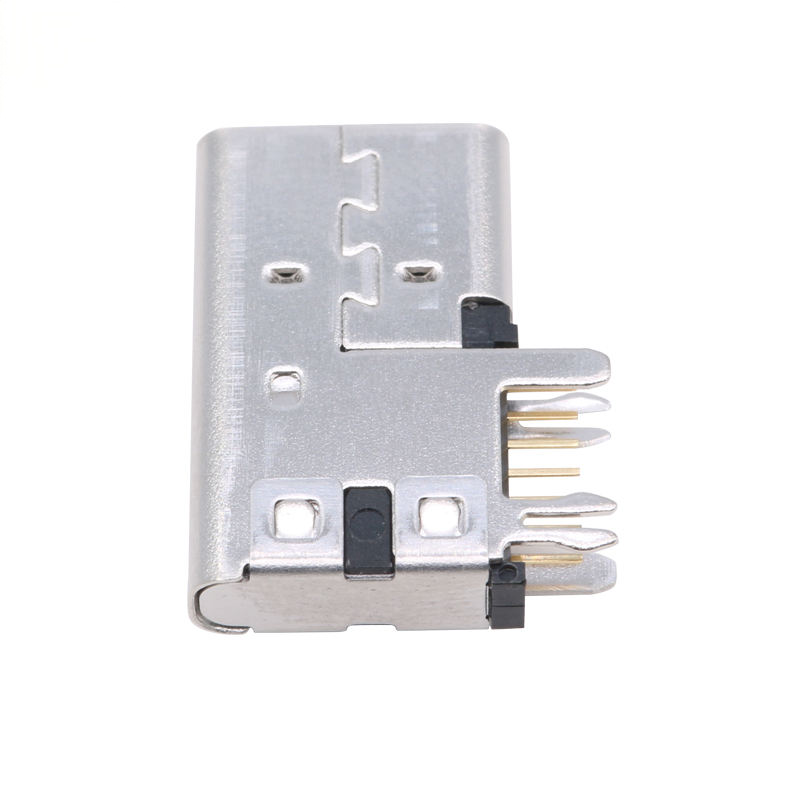

Basic 14-Pin Mini USB Type C Female Connector Stainless Steel Housing 5A Rated Current Side Plug for USB Devices

14-Pin Mini USB Type‑C Female | Stainless Steel Housing | Side Plug, 5A Rated

Product Highlights

✅ Waterproof Grade: Optional IPX7 / IPX8 sealed version for wet & outdoor environments

✅ Protocol & Power Stability: USB 2.0 base; upgraded variant supports USB3.0 / USB4.0, stable PD 100W / 240W high-power delivery, low thermal rise under continuous 5A load

✅ Multiple PCB Mount Options: SMT / THR Through-Hole Reflow / Double-row SMT

✅ Anti-Peel Reinforcement: Reinforced soldering bracket design, solves common pain point: pin peeling & solder crack after repeated mating cycles, prevents PCB board delamination

Technical Specifications Table

Product Features

• Side plug horizontal low-profile structure, saves vertical PCB space
• Thick stainless steel shell for EMI shielding & anti‑deformation
• Reinforced anchor feet to distribute insertion stress away from solder joints
• Reversible Type‑C interface
• RoHS / REACH compliant

Product Advantage

• Anti‑peel reinforcement: Eliminates solder joint fracture caused by long‑term plugging
• Flexible mount options for different PCB assembly lines
• Stable high‑power PD performance, low heat accumulation
• Sealed waterproof option available for harsh environments
• Consistent batch tolerance, high coplanarity for auto‑SMT

Application

• Power banks, smart chargers
• Handheld portable devices, IoT modules
• Medical handheld equipment
• Outdoor instruments, smart wearables
• Industrial control small panels, POS peripherals

Packaging

Standard: Tape & Reel (Reel packing), ready for automatic pick-and-place SMT machine, direct loading on your production line. Tray packing available as an optional request.

Lead Time & Sample Policy

• Sample: 3 working days
• Bulk order: 1–3 weeks, depending on quantity & customization
• MOQ: Low MOQ for standard models
• Free samples available; fast sample release for engineering validation

Custom Service

Certifications: RoHS, REACH, UL94-V0.

Custom support: waterproof sealing modification, pin assignment, plating specification, housing height, customized tape reel.

Custom pin assignment, waterproof structure modification, housing surface treatment, customized logo, special plating requirements.

About us & Manufacturing Capability

We are a professional precision connector manufacturer focusing on USB, FPC, BTB, Type-C, and high-speed interconnect components.

• Automatic high-speed stamping, injection molding, 3D CCD full inspection
• In-house reliability lab for mating cycle, salt spray, thermal shock, and impedance testing
• Independent tooling workshop, fast mold modification
• Stable supply chain, strict IQC/IPQC/FQC quality control
• Support long-term NPI program, formal PCN notification mechanism

Quality Guarantee
Rigorous production and quality checks in each section, providing a 1-year warranty for all our Female Connectors.

Responding within 24 hours
All inquiries will be replied to within 24 hours on working days.

Why Choose Us?

1)  Provide the perfect after-sales service for all our clients

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: For any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications, depending on the selected specification.

Q4: Can this connector be customized?

A: Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
