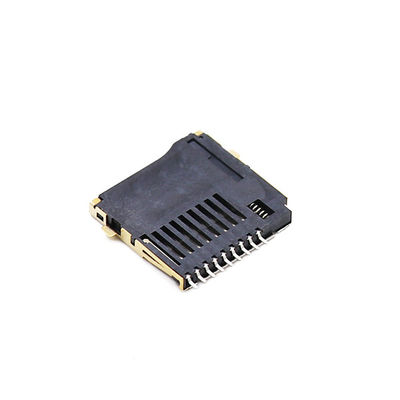

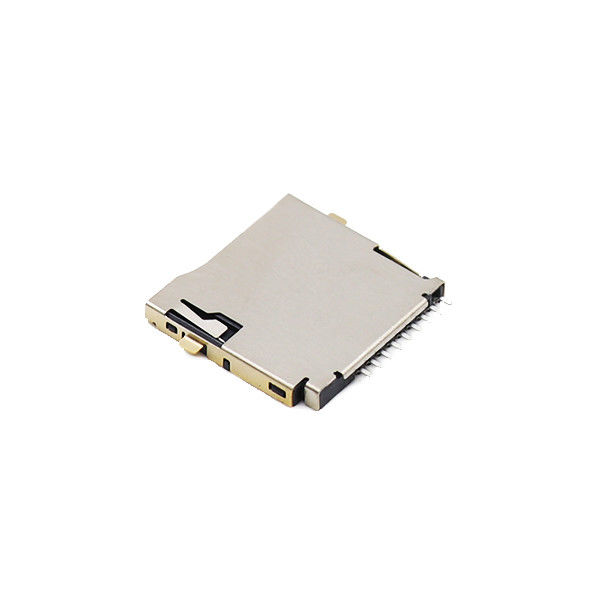

0.8mm Micro Sd Card Connector

0.8mm Micro Sd Card Connector
0.8mm Micro Sd Card Connector 0.8mm Micro Sd Card Connector

Large Image :  0.8mm Micro Sd Card Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Mmemory card connector
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

0.8mm Micro Sd Card Connector

Description
Product Family: Memory Card Connectors Type: Push
Housing: Thermoplastic , UL94- V0 Current Rating: 1.0A
Application: PCB Service: OEM/ODM
High Light:

SMT micro sd card connector

,

ROHS 0.8mm micro sd card connector

,

0.8mm memory card socket

Push type T Flash Micro SD Memory Card Reader Connector Mid-mount 0.8 SMT





Product Description



 Mounting Type SMT / mid-mount
No. Of Positions 9p
Current Rating 0.5A
operating voltage 10V AC(RMS)/DC
Contact Resistance 20m ohms
Insulation Resistance 100mohms min
Operation Temperature -25℃ to +85℃
Storage Temperature -10℃ to +85℃
Voltage Rating 50V
Material of main body LCP,UL94V-0
Contact copper alloy
Withstand Voltage 500V
Gender Female
Price Term FOB
Durability cycles 10,000 Cycles
Lead Time 7-10 working Days
Ejector Type Push-push;push-pull,Hinge,Tray type



0.8mm Micro Sd Card Connector 0



Drawing

0.8mm Micro Sd Card Connector 1



Feature



Connector group that includes connectors for standard PCMCIA for PCs, push-push type SD,Micro SD and SIM connectors.



Description



This series are Memory Card Connectors for XQDTM cards. As these products are connectors for consumer equipment such as DSCs (Digital Still Cameras) and DVCs (Digital Video Cameras), their card operation features a push-push mechanism by adopting the spring-ejection structure, thus enabling users to easily insert and eject the cards. In addition, the connectors are made user friendly with an enhanced “click” feeling, and a guiding structure which prevents incorrect card insertion of the cards.



Typical Application



With Storage Features:

Camera

Digital Audio

Tablet PCs

Travel Recorder

Tablet PCs / Notebook PCs

DSCs / DVCs.



Main export markets



Asia Australasia

Eastern Europe Mid East/Africa

North America Western Europe

Central/South America



Primary Competitive Advantages



Small orders accepted

Factory direct export

With 20 years of professional production experience as a manufacturer of precision connectors

Free samples is available

Prompt delivery

Green product

Strong researching and developing team

Experienced staff

ISO9001,ROHS
