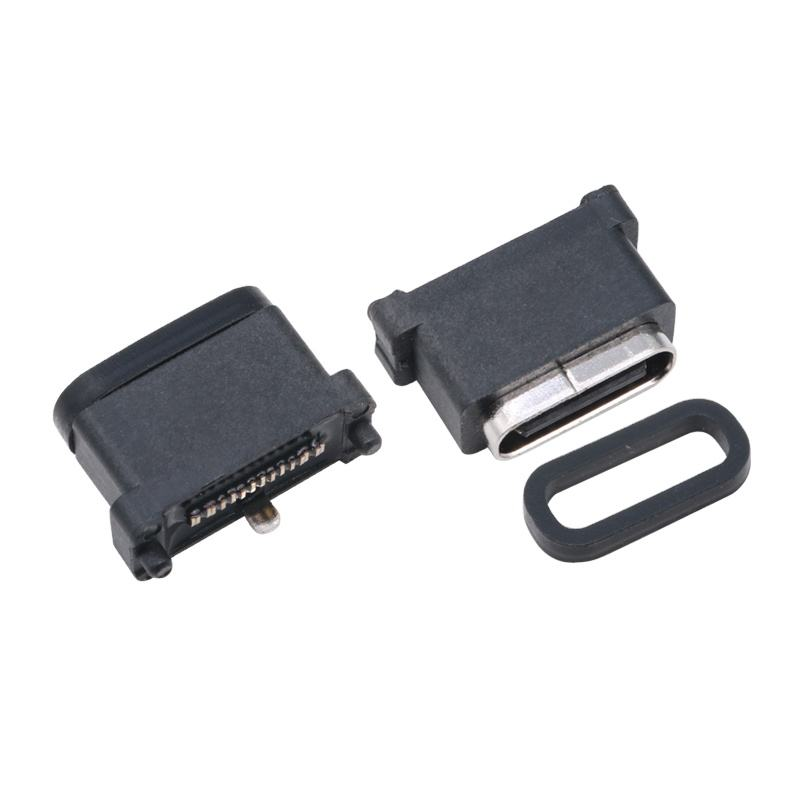

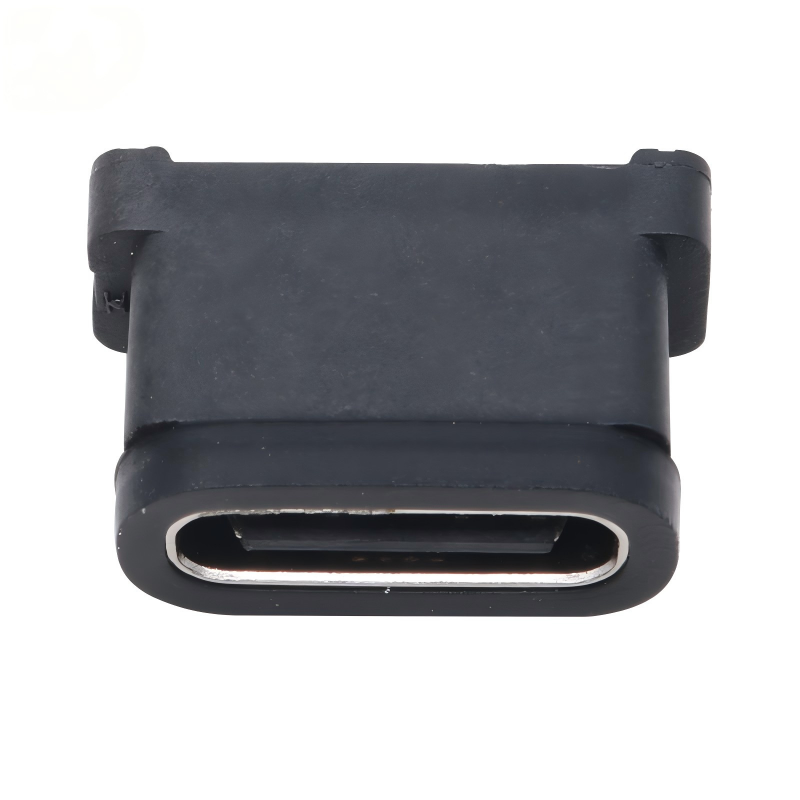

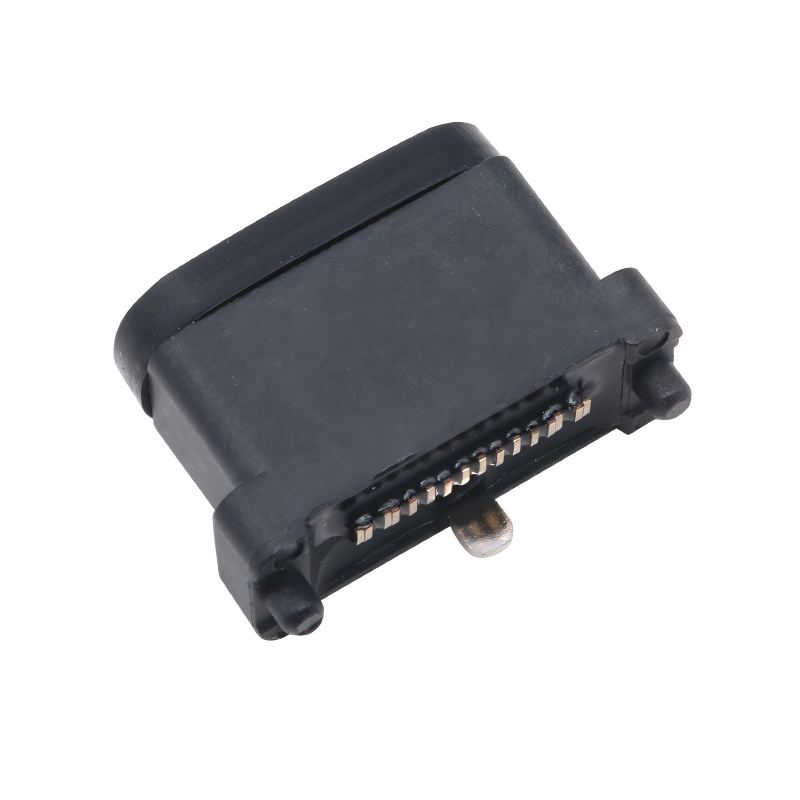

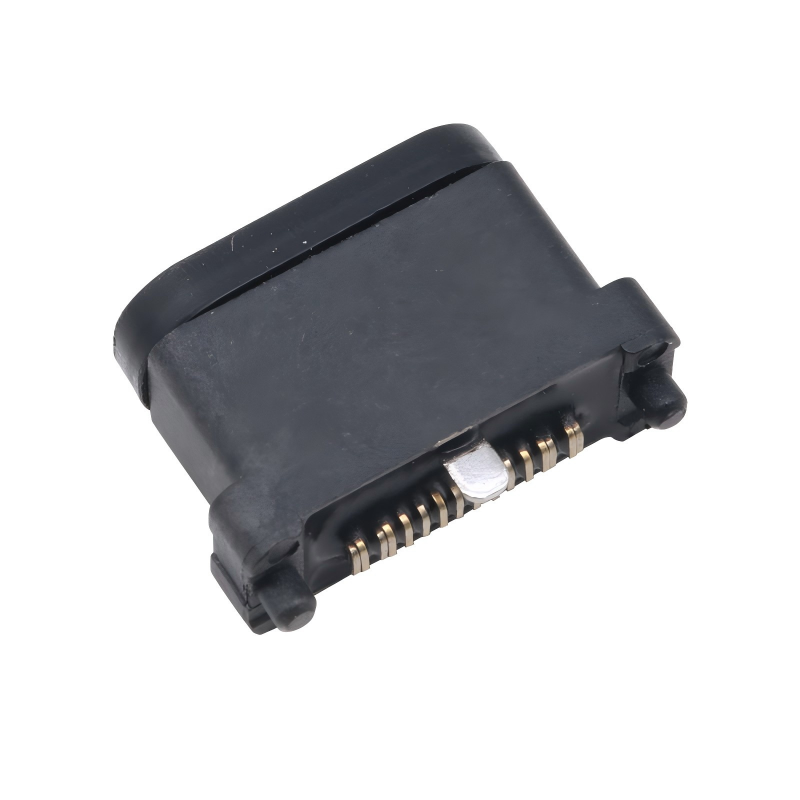

USB 3.2 Type-C 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Connector Gold Plating Stainless Steel 5A 100V AC

Product Highlights

• USB Type-C 24-Pin Full-Function Receptacle
• High-Speed Data Transfer up to 40Gbps
• Waterproof Sealed Design for Harsh Environments
• SMT + DIP Hybrid PCB Mounting Structure
• 5A High Current Support for Fast Charging Applications
• Gold-Plated Contacts for Stable Electrical Connection
• Stainless Steel Shell for Mechanical Strength and EMI Protection
• Suitable for Industrial, Automotive, AI Equipment, IoT and Portable Electronics

General Mechanical Specifications

Material & Electrical Characteristics

Environmental & Soldering Specifications

Product Features

High-Speed USB Type-C Interface

• Supports USB 3.2 / USB4 compatible high-speed applications
• Data transmission capability up to 40Gbps (application dependent)
• 24-pin reversible Type-C interface design
• Supports high-speed data, power delivery, and multi-function signals

Waterproof and Rugged Design

• Sealed structure helps protect against moisture and dust
• Suitable for outdoor and industrial electronic equipment
• Stainless steel shell improves mechanical strength and shielding performance

Gold-Plated Contact System

• Copper alloy terminals with gold-plated contact area
• Reduced contact oxidation risk
• Suitable for repeated mating and long-term electronic applications

SMT + DIP PCB Mounting

• Hybrid SMT and DIP mounting structure
• Compatible with automated PCB assembly
• Provides additional mechanical fixing strength for USB-C ports

Application

Industrial Electronics

• Industrial control equipment
• Automation systems
• Embedded controllers
• Industrial computers

AI & Edge Computing Devices

• AI edge computing terminals
• Intelligent gateways
• Data acquisition devices
• High-performance embedded systems

Automotive Electronics

• Vehicle infotainment systems
• Smart cockpit devices
• Automotive charging interfaces
• Electronic control modules

Outdoor Smart Devices

• Outdoor terminals
• Smart monitoring equipment
• Portable measurement instruments
• IoT devices

Consumer Electronics

• High-speed storage devices
• Docking stations
• Professional peripherals
• Smart terminals

Our Advantage

1 > 15 years of experience
More than 15 years of experience in MALE / Female connector development, producing, and marketing; our products are sold to more than 800 customers in 63 countries; what’s more, has provided over 1000 models of  Female Connectors for our customers.

Amphenol, Huawei, LG, Samsung, Foxconn, and Skyworth are our customers

2 > Quality Guarantee
Rigorous production and quality checks in each section, providing 6 6-year warranty for all our Female Connectors.

3 > Responded within 24 hours
All inquiries will be replied to within 24 hours on working days.

Our Service

1. We aim to make sourcing connectors easy for you.

2. We'll reply to your inquiry within 24 hours. Online Inquiry is Welcome

3. We provide OEM and ODM services, and for any special connectors requested, we are going to make a new mold for you, but the mold costs half for each.

4. 20 pcs of free samples. For repeat-order customers, We'll provide more than 20 pcs of samples for prototype projects if necessary.

5. Our business is not just about connector supply; it's about delivering promises.

Why Choose Us?

1) Your inquiry related to our products or prices will be replied to within 24 hours.

2) Well-trained and experienced staff to answer all your inquiries in fluent English.

3) OEM and ODM: for any of your customized female connectors, we can help you design and put them into production

4) Distributor ships are offered for your unique design and some of our current models

5) Protection of your sales area, ideas of design, and all your private information

6) Provide the perfect after-sales service for all our clients

FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.

Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.

Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications depending on the selected specification.

Q4: Can this connector be customized?

A:Yes. Customization options include:

• Waterproof structure
• PCB mounting design
• Contact plating thickness
• Shell design
• Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

• Industrial electronics
• AI edge devices
• Automotive electronics
• Outdoor IoT equipment
• Smart terminals
• High-speed computing peripherals
