Product Description

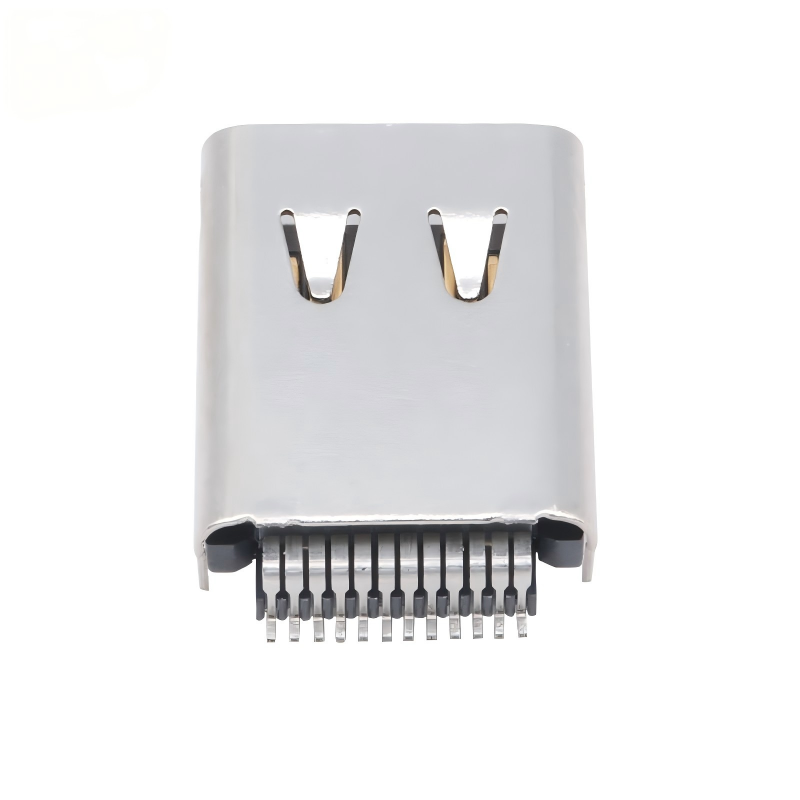

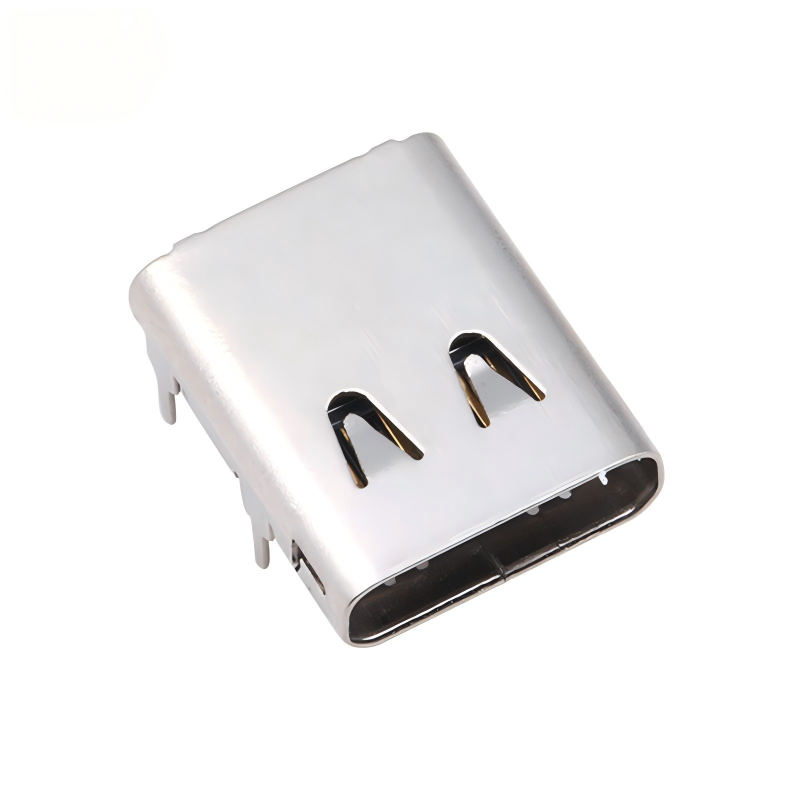

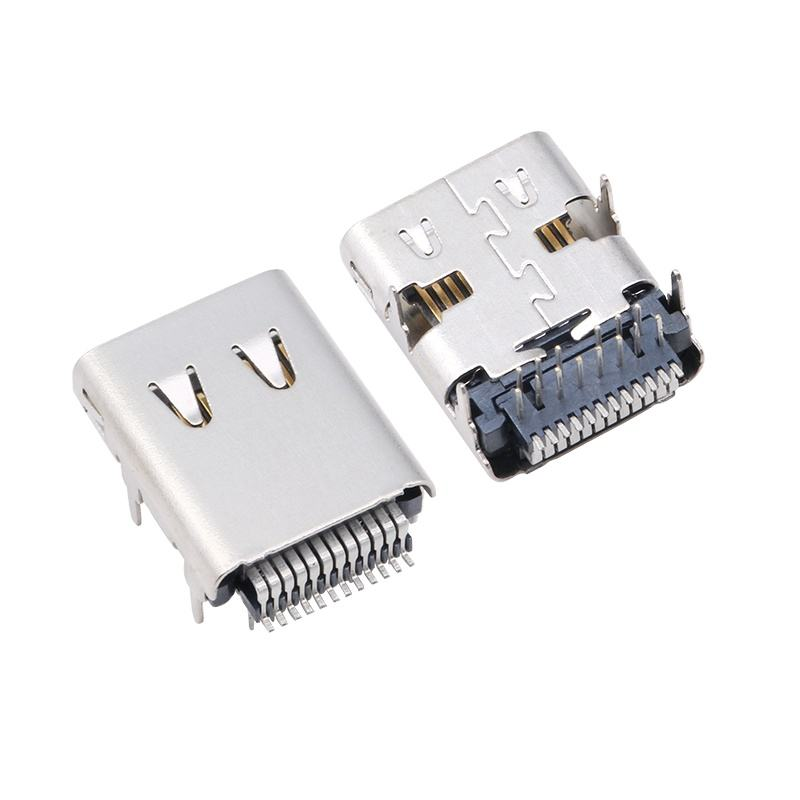

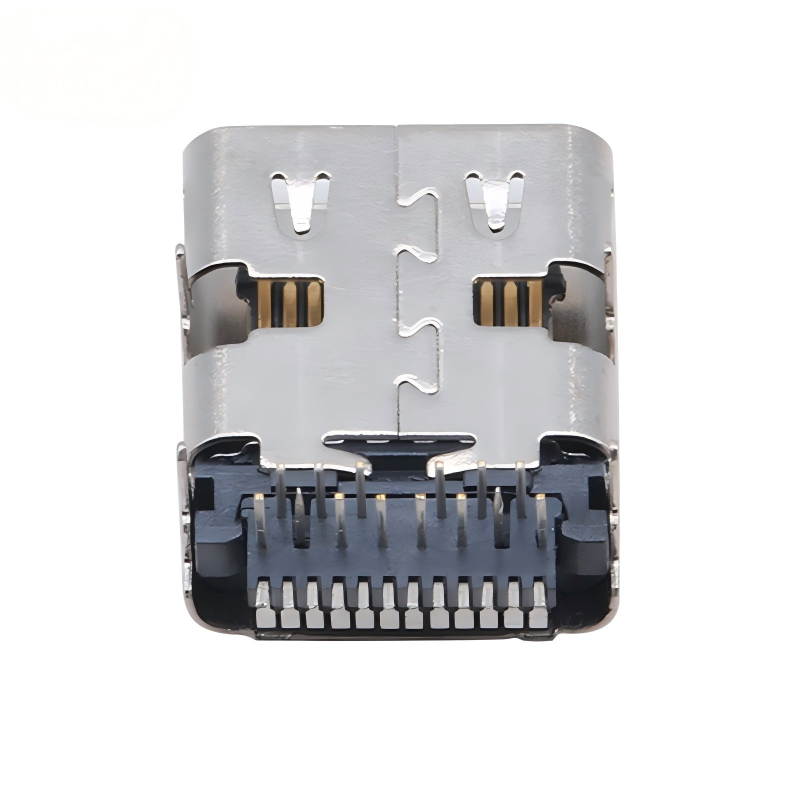

Customized USB 3.2 Type-C Connector 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Male Connector Factory


Product Highlights

  • 24-Pin Full-Function USB Type-C Interface
  • Supports USB 3.2 / USB4 High-Speed Data Applications
  • Up to 40Gbps Data Transfer (USB4 Version Available)
  • Waterproof Sealing Structure for Harsh Environments
  • SMT + DIP Hybrid PCB Mounting Design
  • Gold-Plated Contacts for Stable Signal Connection
  • OEM/ODM Customization Available


General Mechanical Specifications


Parameter Specification
Product Type USB Type-C Female Connector / Receptacle
Interface Standard USB Type-C
Pin Count 24 Pin
Connector Type Female Socket
Mounting Type SMT + DIP PCB Mount
Mounting Direction Horizontal / Vertical (Customized)
Contact Pitch Type-C Standard Pitch
PCB Installation Surface Mount + Through Hole Fixing
Mating Cycles Up to 10,000 cycles (model dependent)
Connector Structure Waterproof Reinforced Housing
Customization Pin configuration, shell design, plating, waterproof structure


Material & Electrical Characteristics

Parameter Specification
Contact Material Copper Alloy
Contact Plating Gold Plated
Shell Material Stainless Steel / Metal Alloy
Housing Material LCP UL94V-0 Thermoplastic
Rated Current Up to 5A (PD application, model dependent)
Contact Resistance ≤40mΩ (typical)
Insulation Resistance ≥100MΩ
Withstanding Voltage 100V AC/min (typical)
Data Rate USB 3.2 / USB4 Platform Support
Maximum Transfer Speed Up to 40Gbps (USB4 version)


Environmental & Soldering Specifications

Parameter Specification
Operating Temperature -40°C to +85°C (typical)
Storage Temperature -40°C to +85°C
Waterproof Grade IPX5 / IPX7 / IPX8 Available (Customized)
Soldering Process SMT Reflow Soldering
Reflow Temperature Up to 260°C (Typical)
Compliance RoHS / REACH Available

Customized USB 3.2 Type-C Connector 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Male Connector Factory


Product Advantages

High-Speed Data + Power Integration

One Type-C interface combines:

  • Data transmission
  • Power charging
  • Multi-function expansion

Reducing the need for multiple connectors in compact electronic designs.


Space-Saving PCB Design

The compact Type-C form factor helps engineers optimize:

  • PCB layout
  • Device thickness
  • Internal component arrangement

Suitable for miniaturized and high-density electronic products.


Flexible Customization Capability

Available customization options:

  • Connector height
  • Waterproof structure
  • Shell design
  • Pin configuration
  • Plating thickness
  • PCB mounting style

Suitable for OEM/ODM projects requiring customized connector solutions.



Application

AI & Computing Equipment

  • AI edge computing devices
  • AI terminals
  • Industrial AI controllers
  • High-performance computing equipment

Industrial Electronics

  • Industrial controllers
  • Automation equipment
  • Measurement instruments
  • Embedded systems

Consumer Electronics

  • Laptops
  • Tablets
  • Smart devices
  • Docking stations
  • Portable electronics

Automotive Electronics

  • Vehicle infotainment systems
  • Smart cockpit modules
  • Automotive control devices
  • Portable vehicle equipment

Outdoor & IoT Devices

  • Outdoor terminals
  • Smart monitoring equipment
  • IoT gateways
  • Communication devices

Customized USB 3.2 Type-C Connector 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Male Connector FactoryCustomized USB 3.2 Type-C Connector 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Male Connector Factory


Customer Selection Guide

1. Confirm Data Speed Requirement

Choose the connector version according to:

  • USB 3.2 Gen1
  • USB 3.2 Gen2
  • USB4 40Gbps

Do not select based only on Type-C appearance; internal pin design and signal structure must match the required protocol.


2. Check PCB Mounting Design

Confirm:

  • SMT or SMT+DIP requirement
  • PCB thickness
  • Installation direction
  • Mechanical reinforcement requirements

3. Evaluate Environmental Conditions

For outdoor or industrial applications, consider:

  • Waterproof level
  • Dust protection
  • Temperature range
  • Mechanical stress

4. Verify Power Delivery Requirements

For charging applications, confirm:

  • Required current rating
  • PD charging specification
  • Thermal design requirements


Our Advantage


1 > 15 years of experience
More than 15 years of experience in MALE / Female connector development, producing, and marketing; our products are sold to more than 800 customers in 63 countries; what’s more, has provided over 1000 models of  Female Connectors for our customers.

Amphenol, Huawei, LG, Samsung, Foxconn, and Skyworth are our customers


2 > Quality Guarantee
Rigorous production and quality checks in each section, providing 6 6-year warranty for all our Female Connectors.

3 > Responded within 24 hours
All inquiries will be replied to within 24 hours on working day.


Our Service


1. we aim to make sourcing connectors easy for you.

2. We'll reply to your inquiry within 24 hours. Online Inquiry is Welcome

3. We provide OEM and ODM services, and for any special connectors requested, we are going to make a new mold for you, but the mold costs half for each.

4. 20pcs free samples. For repeat-order customers, We'll provide more than 20 pcs of samples for prototype projects if necessary.

5. Our business is not just about connector supply; it's about delivering promises.

Customized USB 3.2 Type-C Connector 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Male Connector Factory

Customized USB 3.2 Type-C Connector 40 Gbps Waterproof U4 Socket 24 Pin SMT DIP PCB Female Male Connector Factory


Why Choose Us?


1) Your inquiry related to our products or prices will be replied to in 24 hours.


2) Well-trained and experienced staff to answer all your inquiries in fluent English


3) OEM and ODM, any of your customized female connectors we can help you design and put into production


4) Distributor ships are offered for your unique design and some of our current models


5) Protection of your sales area, ideas of design, and all your private information


6) Have the perfect after-sales service for all our clients


FAQ

Q1: Does this Type-C connector support 40Gbps data transmission?

A: The connector structure supports USB4/high-speed Type-C applications up to 40Gbps when matched with compatible controllers, cables, and system designs.


Q2: Is this connector waterproof?

A: Yes. This series uses a sealed waterproof structure. The final IP rating depends on the specific sealing design and customer requirements.


Q3: What is the current rating of this USB Type-C connector?

A: The connector supports up to a 5A current rating for VBUS applications depending on the selected specification.


Q4: Can this connector be customized?

A:Yes. Customization options include:

  • Waterproof structure
  • PCB mounting design
  • Contact plating thickness
  • Shell design
  • Mechanical dimensions

Q5: What industries commonly use this connector?

A: Typical applications include:

  • Industrial electronics
  • AI edge devices
  • Automotive electronics
  • Outdoor IoT equipment
  • Smart terminals
  • High-speed computing peripherals
