SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

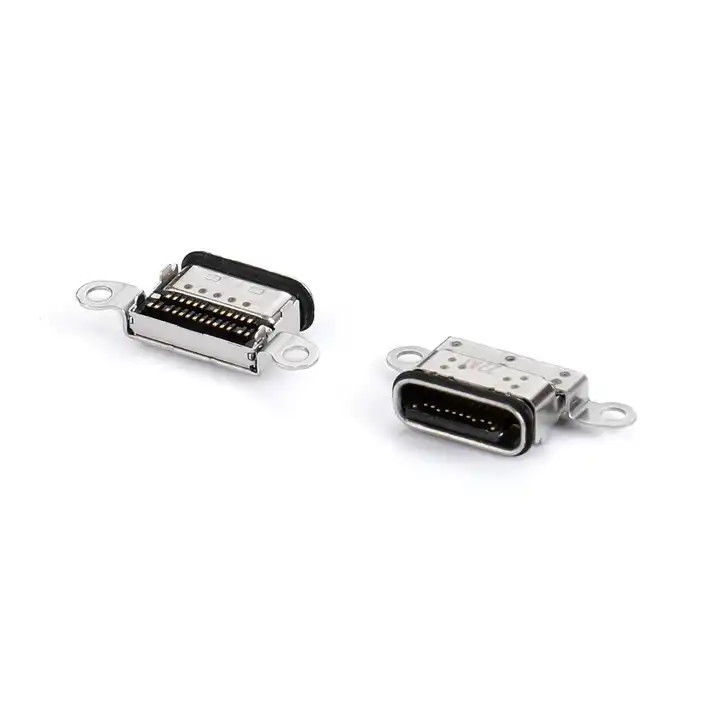

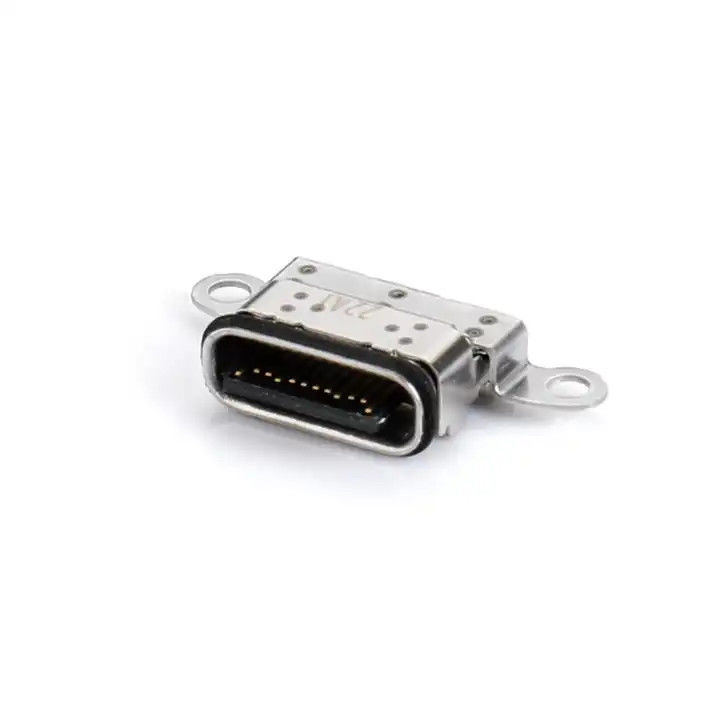

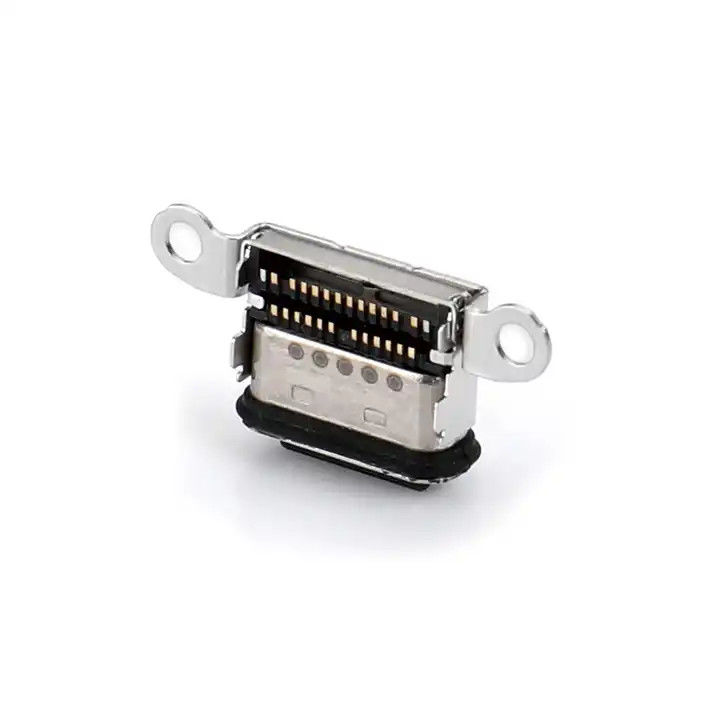

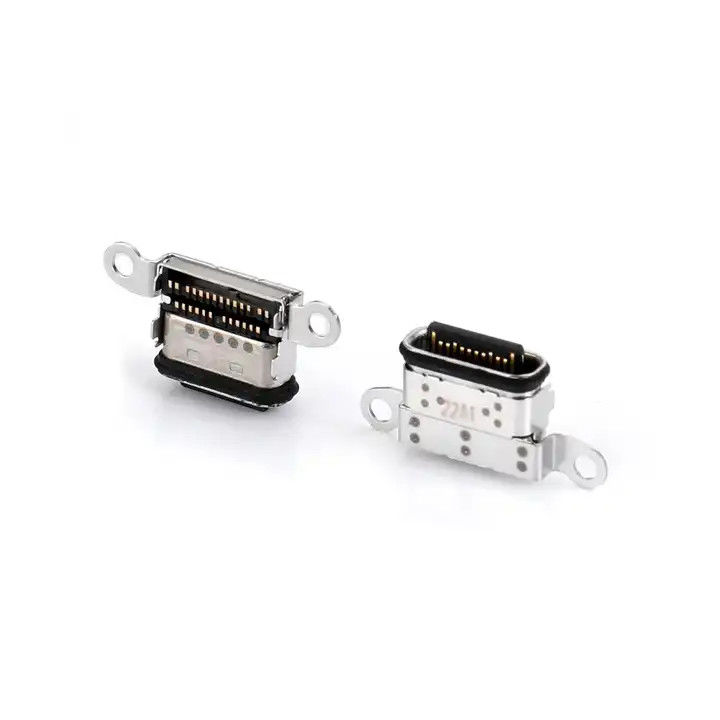

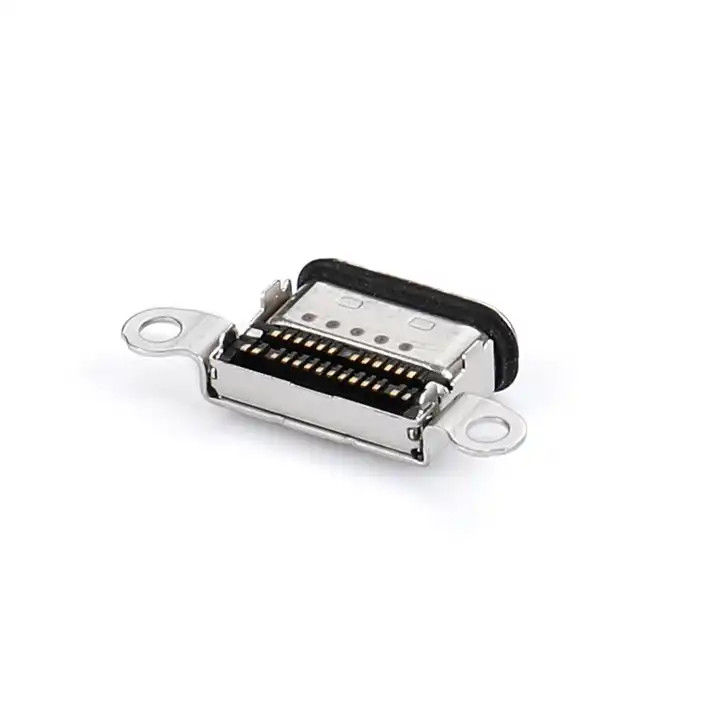

SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8

SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8
SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8

Large Image :  SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8

Product Details:
Place of Origin: China
Brand Name: XTK
Certification: CE,SGS,ROHS,ISO9001
Model Number: USB TYPE C Female
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: Hermetic bag,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8

Description
Connector Type: USB C 3.0 Connector Place Of Origin: Guangdong, China
Pins: 24pin Gender: Female
Working Temperature: -55°C-+85°C DURABILITY: 10,000 CYCLES
High Light:

SMT USB C Female Connector

,

Waterproof USB C Female Connector

,

IPX8 Type C Female Connector

24-pin USB C-type female connector DIP+SMT 3.4 front plug and back patch for mobile charging cable





Product Description



Pins
24Pin
Keywords
Waterproof Type C 24Pin Connector
Model Number
TYPE CF 24P Double Row SMT with Ear Waterproof IPX8
Application
Computers, digital products, home appliances, automobiles, mobile phones, audio, medical, automation equipment and communications
Gender
Female
Rated Voltage
12V
Rated Current
5A
Contact Resistance
30mΩ
Insulation Resistance
1000 MΩ
Withstand Voltage
500V
Working Temperature
-30°C-+85°C
Mating Force
35N
Unmating Force
8N
Durability
10000 cycles



Type-C is also the realization of a vision to bring various parts of the USB specifications together to form a complete system of cabling, power, and signal management for all applications. USB 2.0 Type-C cables support USB 2.0 Low-speed, Full-Speed, and High-speed formats. USB Type-C full-featured cables also support the SuperSpeed+ and SuperSpeed 10G data rates of USB 3.1 Gen1 and Gen2. The Type-C interconnect uses USB Power Delivery (PD) to enable the 100W power capability that allows faster battery charging and the ability to power larger devices such as laptops, monitors, and TVs. Type-C full-featured cables are active, electronically marked cables incorporating signal conditioning, power management, and configurable connections. Wires within these cables can be reconfigured via PD vendor-defined messages (VDMs) to handle video and audio signals using alternate and accessory modes. With its smaller size, range of power levels, faster data rates, and the ability to handle multiple data protocols, Type-C positions itself as the USB connector of the future.



Application

Products are widely used in computers, laptops, notebooks, mobile phones, PHS, medical facilities, GPS, etc. FURAN Company's main products are universal headphones, mobile phone data connectors, USB connectors, Mini USB connectors, Micro USB connectors, USB terminals, universal data lines, etc.



Our Advantage
1 > 15 years of experience
More than 15 years of experience in MALE / Female connector developing, producing, and marketing; our products are sold to more than 800 customers in 63 countries; what’s more, has provided over 1000 models of  Female Connectors for our customers.

Amphenol, Huawei, LG, Samsung, Foxconn, and Skyworth are our customers


2 > Quality Guarantee
Rigorous production and quality check in each section, providing 6 6-year warranty for all our Female Connectors.

3 > Responded within 24 hours
All inquiries will be replied to within 24 hours of the working day.



Our Service



1. we aim to make sourcing connectors easy for you.

2. We'll reply to your inquiry within 24 hours, Online Inquiry is Welcome

3. We provide OEM, ODM service, and Any of the special connectors requested, We are going to make a new mold for you but the mold costs half for each.

4. 20pcs free samples, For repeat order customers, We'll provide more than 20pcs samples for prototype projects if necessary.

5. Our business is not just about connector supply, it's about delivering promises.





SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 0

SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 1

SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 2





Why Choose Us?



1) Your inquiry related to our products or prices will be replied to in 24 hours.


2) Well-trained and experienced staff to answer all your inquiries in fluent English


3) OEM and ODM, any of your customized female connectors we can help you design and put into product


4) Distributer ships are offered for your unique design and some of our current models


5) Protection of your sales area, ideas of design, and all your private information



6) Have the perfect after-sales service for all our clients.

SMT USB C Female Connector 24 Pin Double Row Waterproof IPX8 3
