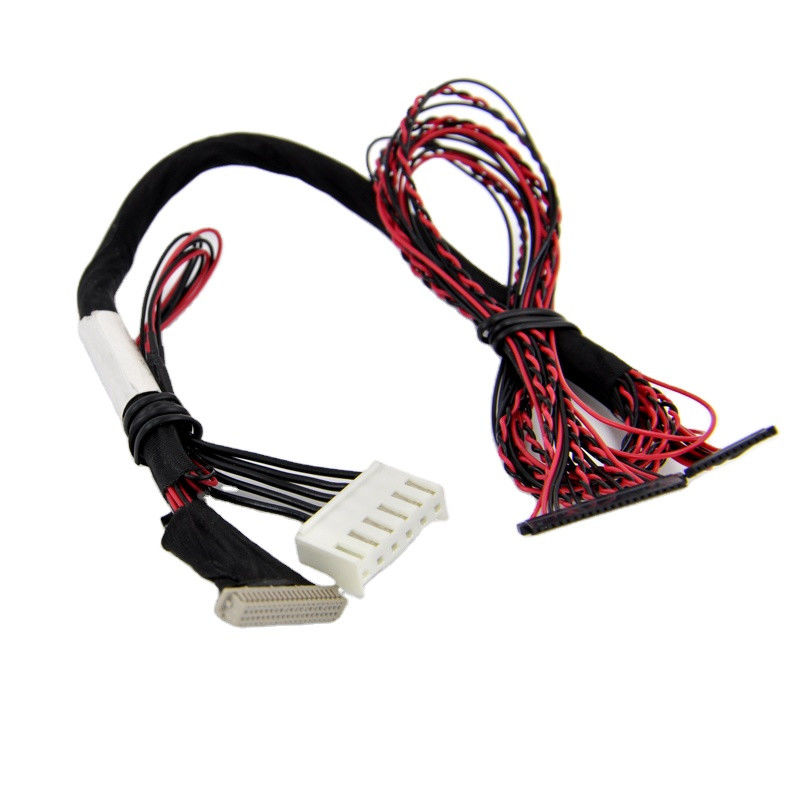

2CH 8bits 30 Pin LVDS Custom Cable Assemblies For LCD Panel Display

2CH 8bits 30 Pin LVDS Custom Cable Assemblies For LCD Panel Display
2CH 8bits 30 Pin LVDS Custom Cable Assemblies For LCD Panel Display

Large Image :  2CH 8bits 30 Pin LVDS Custom Cable Assemblies For LCD Panel Display

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: ISO 9001:2008
Model Number: LVDS Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: Hermetic bag,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

2CH 8bits 30 Pin LVDS Custom Cable Assemblies For LCD Panel Display

Description
Item: 30 Pin Lvds Cable Current Rating: 1 A AC,CD
Service: OEM ODM Accept Application: LCD Panel Display
Pin Pitch: 1.25MM Length: 40 Cm
High Light:

2CH Custom Cable Assemblies

,

8bits Custom Cable Assemblies

,

LCD Panel Display LVDS Cable Assembly

30 Pin To 30 Pin 2ch 8bits LVDS Cable for LCD Panel Display





Product Description



Current 1.5A AC,DC

Voltage rating

50V AC,DC
Temperature range -40℃~+105℃
Insulation resistance 100MΩ/Minute
Withstanding voltage 500V AC/Min
Wire AWG 28~32
Contact resistance 30MΩ/Max



















------What's the lvds cable?


Low-voltage differential signaling,or LVDS,also known as TIA/EIA-644,is a technical standard that specifies electrical characteristics of a differential,
serial communications protocol. LVDS operates at low power and can run at very high speeds using inexpensive twisted-pair copper cables.

Since LVDS is a physical layer specification only,many data communication standards and applications use it but then add a data link layer
as defined in the OSI model on top of it.LVDS was introduced in 1994,and has become popular in products such as LCD-TVs, automotive infotainment systems,
industrial cameras and machine vision,notebook and tablet computers,and communications systems.The typical applications are high-speed video,
graphics,video camera data transfers,and general purpose computer buses.Early on,the notebook and LCD display vendors commonly used
the term LVDS instead of FPD-Link when referring to their application,and the term LVDS has mistakenly become synonymous with Flat Panel Display Link in
the video-display engineering vocabulary.





Our Advantage



1.Specializes in manufacturing connector more than 18 year as well as export the relevant component more than 10 years

2.UL-marked products conform to REACH and ROHS regulations

3.Rich selection of connector,terminal,PIN,female header, automotive terminals and more

4.ISO 9001:2008-certified factory quipped with automated assembly lines

5.Up to 40 million units turned out each month

6.The XTK BRAND can replace JST,Molex,YEONHO,Tyco,AMP,KET,JWT,JMT, Cvilux,GTK ect.)

7.R&D team updates every month with 20 new items

8.Sample take up to 3 days,but can be finished with one day in urgent cases

9. Specialized in providing connector solutions for customers and providing customized services.

10.Custom orders welcome.



FAQ



1.Ask:What information do you need if we want to custom wire harness or cable assembly?
Answer:Please send your drawing or sample to us.


2.Ask:If we don't have drawing or sample, just a picture, what information do you need?
Answer:If so , you need to tell us the model about connector and cable UL number with AWG,and the length of cable, last how to contact each wire to connector.


3.Ask:When we can get the sample? how about the cost?
Answer: Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.


4.Ask:What's your delivery time?
Answer:Our normal delivery time is 10-15 days, if urgent, it will be dealt with urgently.


5.Ask:How we can trust your quality?
Answer:All material in RoHS, Reach standard, 100% test before delivery.


6.Ask:What's your price?
Answer:Our price is base on different market and can be negotiated.


7.Ask:What's your after-sale service?
Answer:We provide technique support for you and help you improve your design or drawing, also can help you solve your and your customer problem.
