0.8/1.0/1.25mm Pitch Extender FFC Flat Cable 26 Pin Ribbon Cable Airbag

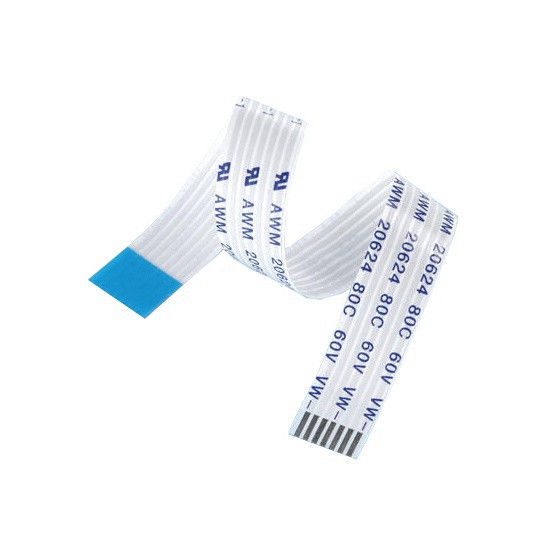

Large Image : 0.8/1.0/1.25mm Pitch Extender FFC Flat Cable 26 Pin Ribbon Cable Airbag

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	XTKCONN
Certification:	CE,SGS,ROHS,ISO9001
Model Number:	FFC FLAT CABLE

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiable price
Packaging Details:	inner package:in bag; Outer Package: reel in Carton
Delivery Time:	5-7 days
Payment Terms:	L/C, T/T,Payyal
Supply Ability:	1KK pcs

Contact Now

0.8/1.0/1.25mm Pitch Extender FFC Flat Cable 26 Pin Ribbon Cable Airbag

Description

Product Characteristics:	Flexibility	Accessory:	Insulation Jacket/terminal/wireway
Material:	PET Of FFC Cable	Application:	Home Appliance
Customization:	Customizable Wire Number And Spacing	Plating:	Gold Flash Or Tin Plated
Highlight:	1.25mm FFC Flat Cable , Ribbon 26Pin FFC Flat Cable , 0.8mm 26 pin ribbon cable

Customizable 0.5mm 0.8mm 1.0mm 1.25mm Pitch Extender FFC Flat Cable 26 Pin Airbag

Description

ymbol	Item	Specification
N	NO.of Conductor	4P TO 40P OR 80P-100P
L	Total Length	l+/-5MM
A	Insulation Length	(L-8)+/-5
TP	Total Pitch	Pitchx(N-1)PIN+/-0.08
W	Width	Pitch x NP+Pitch+/-0.08
P	Pitch	Pitch+/-0.03
M	Margin	1.25+/-0.05
TP	Cable Thickness	0.121+/-0.05
T1	Insert Thickness	0.303+/-0.05
C1/C2	Conductor Strip Length	4.0+/-1.0
S1/S2	Supporting Tape Length	8.0+/-1.0
T2	Conductor Thickness	0.05+/-0.005
B	Conductor Width	0.8+/-0.03
E	Slanting	<0.5
	Conductor Material	Tinned Copper
	Insulation Material	Flame retardand polyester
	Supporting Tape Material	PET
	Supporting Tape Color	Bule
	Supporting Tape Spec	0.225mm

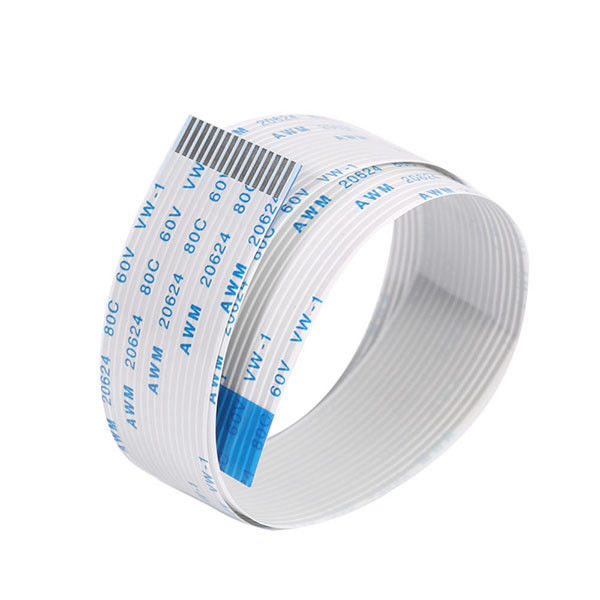

0.8/1.0/1.25mm Pitch Extender FFC Flat Cable 26 Pin Ribbon Cable Airbag 0

Product overview

Based on the vast FFC market in China, FFC alignment, also known as Flexile Flap Cable(FFC) Chinese translation: Flexible flat cable, can freely select the number and spacing of wires, making the connection more convenient, greatly reducing the volume of electronic products, reduce production costs, To improve production efficiency, it is most suitable for data transmission cables between mobile components and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment. Common specifications include 0.5 mm, 0.8 mm, 1.0 mm, 1.25 mm, 1.27 mm, 1.5 mm, 2.0 mm, 2.54 mm and other spacing flexible cables.

Packaging & Shipping

1: Usually we ship your order by sea or by air.

2: We do our best to ship your order within 1 week after receiving your payment

3: We'll tell you the tracking number once your order has been sent.

4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
