Product Details:
|
| Type: | FFC Cable | Description: | Dvi Board Fpc |
|---|---|---|---|
| Service: | ODM OEM Accept | Core Material: | Gold-plated/tin-plated Copper |
| Pitch: | 0.5mm | Color: | White/yellow |
| High Light: | DVI Board FPC Ribbon Cable,50pin FPC Ribbon Cable,DV FFC Flat Cable |
||

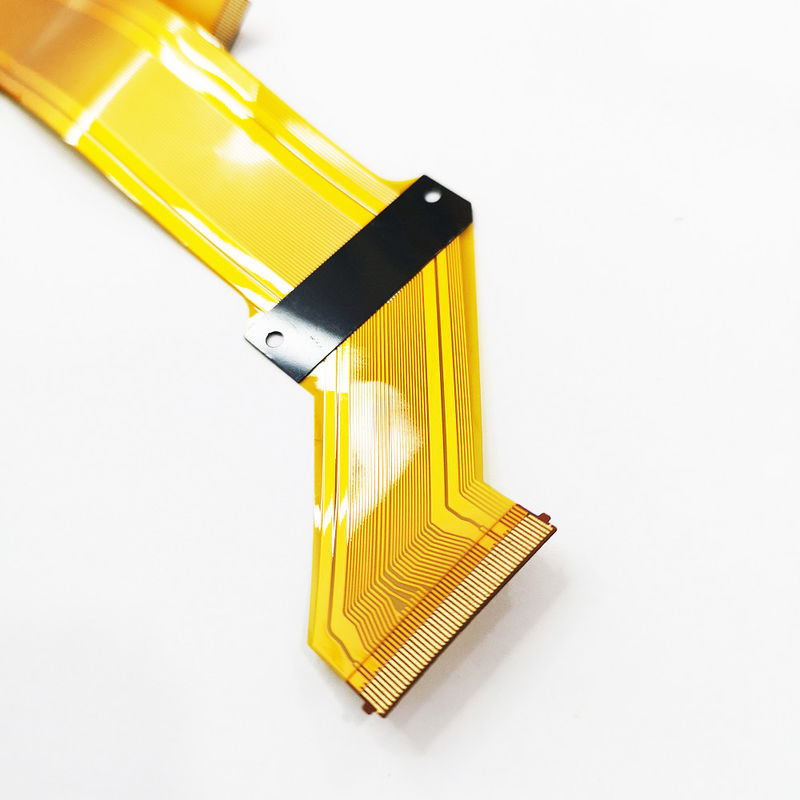

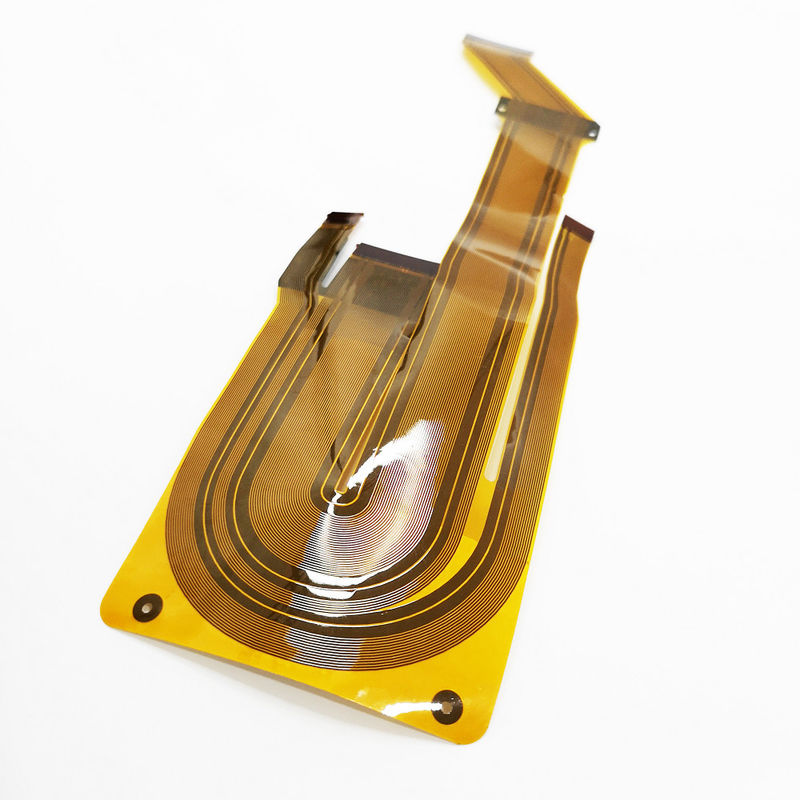

FPC Cable Data Entry Dvi Board 50pin For DV
Product Description
| Items | Paramerers |
| Double side/Mulyti-layer | |
| Max panel size | 32'*20'(800mm*508mm) |
| Minimum track/gap IL | 0.075mm/0.075mm(3mil/3mil) |
| Min annular ring on inner layer one side | 3mil(0.075mm) |
| Maximum Cu weight OL | 6oz(210um) |
| Maximum Cu weight 1L | 12oz(420um) |
| Finished board thickness | 0.20-6mm |
| Layer count | 2-32L |
| Layer to layer registration | ±3mil(±76um) |
| Min finished hole diameter | 0.15mm(6mil),0.1mm(4mil) for HDI |
| Hole position Accuracy | ±2mil(±50um) |
| Slot hloe Tolerance | ±3mil(±75um) |
| PTH diameter tolerance | ±2mil(±50um) |
| NPTH diameter tolerance | ±1mil(25±um) |
| Max Aspect ratio PTH | 10:1 |
| Copper on the wall of the holes | 0.4-2mil(10-50um) |
| Grapic pattern registration tolerance | ±3mil(0.075um) |
| Minimum track/gap 1L(mil)-copper weight dependant | 3mil/3mil(75um/75um) |
| The track Etching tolerance | ±1mil(±25um) |
Application
Our products are widely used in telecommunications,computing networks,medical equipment,and many other high-tech fields.
Our Services
With Our Professional Departments, We Can Offer:
PCB Design
PCB Manufacture: PCB file or Gerber file needed
PCB PCBA SMD SMT Assembly: Bom list needed
Electronic Design
Reverse Engineering - PCB Copy, PCB Clone, IC Decode
Components Procurement
PCB PCBA Finished Product Test
Mass-Production
Prodcution Contract Manufacturing
NDA - Non-Disclosure Agreement
Our PCB Manufacturing Capability
| Item | Specification | |
| 1 | Numbr of Layer | 1-16 Layers (standard) |
| 2 | Material | FR4, Aluminum, FPC |
| 3 | Surface Finish | HASL(LF), Gold plating, Enig,Immersion gold, Immersion Tin, OSP |
| 4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
| 7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 10 | Biggest panel size | 610mm*508mm |
| 11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 12 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
| 13 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil) |
| 14 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching |
| 15 | Warp & Twist | 0.70% |
| 16 | Insulation Resistance | 10Kohm-20Mohm |
| 17 | Conductivity | <50ohm |
| 18 | Test Voltage | 10-300V |
| 19 | Panel Size | 110×100mm(min);660×600mm(max) |
| 20 | Layer-layer misregistration | 4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max |
| 21 | Min.spacing between hole edge to circuity pattern of an inner layer | 0.25mm(10mil) |
| 22 | Min.spacing between board ouline to circuitry pattern of an inner layer | 0.25mm(10mil) |
| 23 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
| 24 | Impedance Control | +/-10% |
| 25 | Different Impendance | +-/10% |
