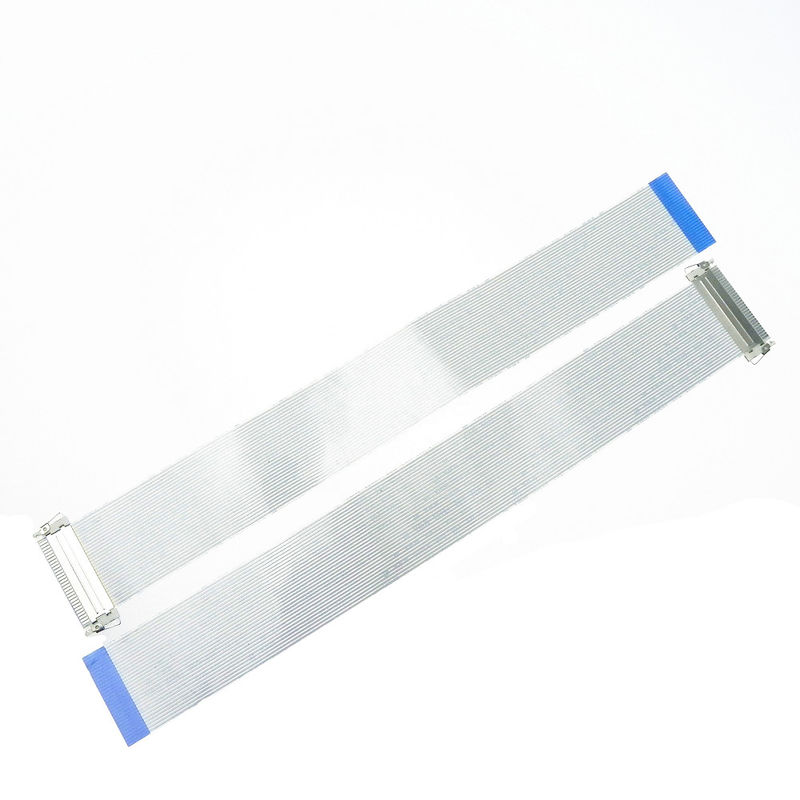

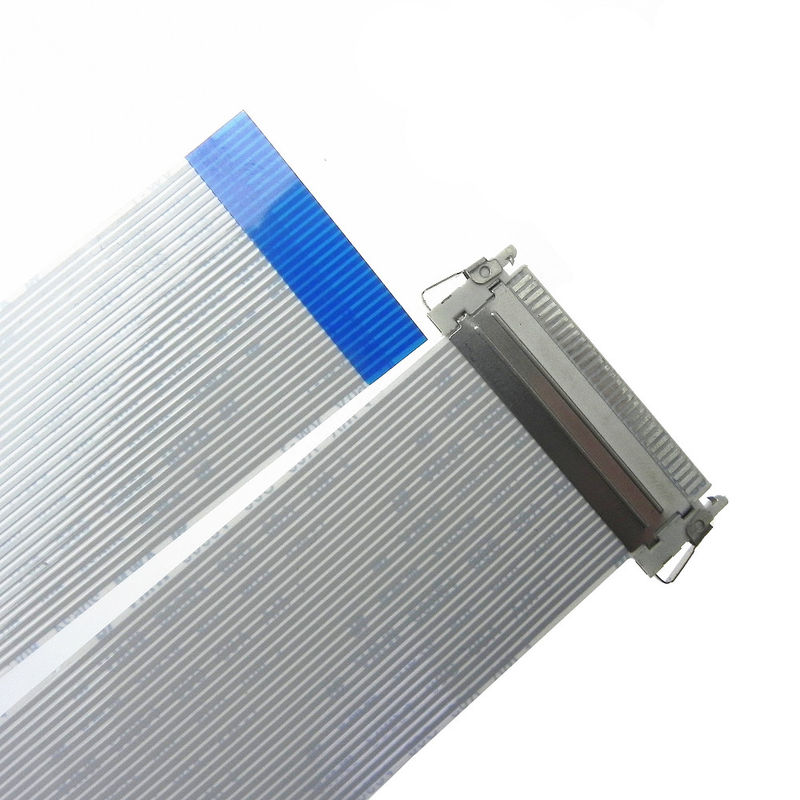

FI-X30HL 1.27mm 50 Pin Lvds FFC Flat Jumper Cable Ribbon Cable For LCD Displayer

FI-X30HL 1.27mm 50 Pin Lvds FFC Flat Jumper Cable Ribbon Cable For LCD Displayer

1.27mm Flat Jumper Cable

1.27mm 50 pin ribbon cable

Lvds Flat Jumper Cable

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

FFC FLAT CABLE

Contact Us
Request A Quote
FI-X30HL 1.27mm 50 Pin Lvds FFC Flat Jumper Cable Ribbon Cable For LCD Displayer
FI-X30HL 1.27mm 50 Pin Lvds FFC Flat Jumper Cable Ribbon Cable For LCD Displayer FI-X30HL 1.27mm 50 Pin Lvds FFC Flat Jumper Cable Ribbon Cable For LCD Displayer
Product Details
Flat Ribbon Cable Application:
Electronic,Electronic,Laptop, Computer
Flat Ribbon Cable Type:
Tyco(Amp),MOLEX, JST,JAM
Application:
Electronic
Flat Ribbon Cable Name:
Factory OEM/ODM Wire Cable Assembly
Flat Ribbon Cable Testing:
100% Testing Inspection Before Delivery
Flat Ribbon Cable Lead Time:
More Than 16 Experiences
Highlight:

1.27mm Flat Jumper Cable

,

1.27mm 50 pin ribbon cable

,

Lvds Flat Jumper Cable

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
inner package:in bag; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
RELATED PRODUCTS
Good price 0.3mm Pitch FFC FPC Ribbon Flat Cable 20Pin OEM ODM Acceptable online

0.3mm Pitch FFC FPC Ribbon Flat Cable 20Pin OEM ODM Acceptable

Get Best Price
Good price Data Entry DVI Board Flat FPC Ribbon Cable 50pin 0.5mm Pitch For DV online

Data Entry DVI Board Flat FPC Ribbon Cable 50pin 0.5mm Pitch For DV

Get Best Price
Good price 0.8/1.0/1.25mm Pitch Extender FFC Flat Cable 26 Pin Ribbon Cable Airbag online Video

0.8/1.0/1.25mm Pitch Extender FFC Flat Cable 26 Pin Ribbon Cable Airbag

Get Best Price
Good price 0.5mm Flexible Custom FFC Flat Cable 50 Pin AWM 20624 80C 60V VW-1 online Video

0.5mm Flexible Custom FFC Flat Cable 50 Pin AWM 20624 80C 60V VW-1

Get Best Price
Contact Us
86 13711847246
tina.liaoyan@foxmail.com
86-769-85150486
Contact Now
Product Description

Custom FI-X30HL 1mm pitch 30pin Lvds FFC flat jumper cable for lcd displayer





Product Description

Flat FFC Cable
Specification
Flat FFC Cable Pitch
0.5mm,0.8mm,1.0mm,1.25mm,1.27mm 2.0mm and 2.54mm
Flat FFC Cable Conductor
0.035*0.3,0.05*0.5,0.1*0.65,0.05*0.5
Flat FFC Cable Insulation
0.043,0.06,0.1,0.08
Flat FFC Cable ReinforcingTape
0.16,0.225,0.25
Flat FFC Cable With Blue stiffen
4-8MM&3-5MM
Flat FFC Cable Sides
Same side contact &opposite side contact
Flat FFC Cable Pin contact
2,3,4,5,6,7,8,9,10....60 pin (According to customers'request)



Flat FFC Cable Length
20MM-10000MM (According to customers' request)
Flat FFC Cable Type
A,B~H,I type (According to customers' request)
Flat FFC Cable Color
White & Black
Flat FFC Cable Service
OEM/ODM products are acceptable.
Flat FFC Cable Certificate
ISO9001:2008, RoHS, SGS
Flat FFC Cable Port
Shenzhen
Flat FFC Cable MOQ
100 Piece/Pieces
Flat FFC Cable Payment Terms
L/C,T/T,PAYPAL,WEST UNION



FI-X30HL 1.27mm 50 Pin Lvds FFC Flat Jumper Cable Ribbon Cable For LCD Displayer 0



More Details



Normally it is 0. 12 mm, and the thickness of the line can be adjusted according to actual demand.
This is determined by the material used in the FFC, FFC row line is composed of two layers of insulation film, middle pressure flat copper conductors,so the thickness of the ribbon cable IT = + + conductor thickness of film thickness on the thickness of the film, the film thickness of the comonly used are : 0. 043 mm, 0. 060 mm and 0.1mm, commonly used conductor thickness are : 0.03mm, 0.06 mm and 0. 10 mm,etc. For example,the common thickness of 0.12 mm is as follows: 0. 043 (superglue) + 0.043 (down)+0.035(conductor thickness) = 0. 121 mm.



FAQ

Q: How can I get the quotation & drawing of the products ?
A: Please tell us the requirement of product you need, we will provide drawing and quotation of the part related.

Q: How about your quality control?
A: We have the strict quality control system, and all goods must be 100% inspected before shipment.

Q: Can I get the free sample before order.
A: Sure, we will provide free sample for your testing if need, but shipping cost shall be borne by customer.

Q: How about your products’ L/T?
A: Lead time is 7-10 days normally, we will confirm the lead time before receiving your order.
