Product Details:
|
| Contact Resistance: | 30milliohm Max | Operating Life: | 750 Cycles MIN |
|---|---|---|---|
| Current Rating: | 1.5A | Feature: | With LED |
| Gender: | Female | MBPS: | 100/1000 Mbps |
| High Light: | Ethernet RJ45 PCB Connector,Female RJ45 PCB Connector,8Pin single port rj45 connector |
||

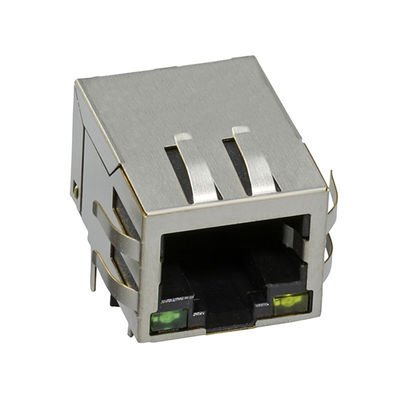

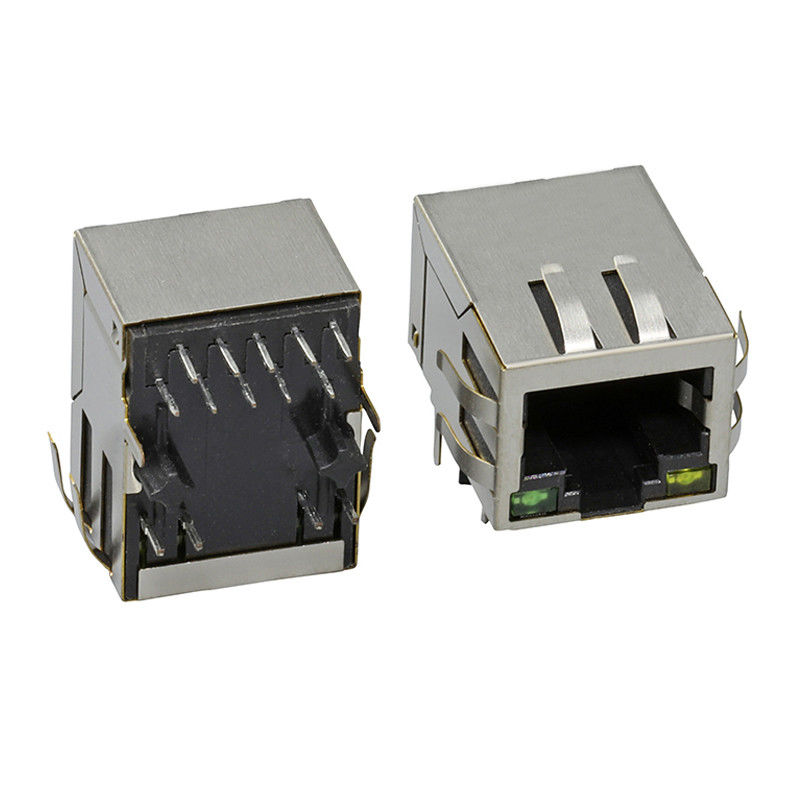

Single port Tab down 8 pin female RJ45 PCb Connector With filter ethernet
Efficient production processes deliver cost-effective Modular Jacks and Plugs that ensure high performance and superior reliability across a wide range of Ethernet data speeds.
Description
| Part Number | RJ45-N1T1-2001-A | Brand | XTK/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down |
| Magnetics | Yes | LED Option | YES |
| LED Color | Y/G | Panel Stops | Without Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 8 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material |
Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material |
Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature |
Standard | UL Flammability Rating | UL 94V-0 |
| Part Number | RJ45-N1T1-2002-A | Brand | XTK/OEM/ODM |
|
|
Typical Application
For HD Output:Router, Set-Top Box, Advertising machine, security, Card swipes,Cash registers,Fax machines,Gaming equipment,Photo copiers,Printers,Vending Machines Gaming devices,Home security,Set-top boxes,Web TV,Control units,Security systems,Test Equipment,Vision Systems,Bed Monitors,Breathing Devices,Home Analysis Monitors,Patch panels,Routers,Servers,Switches etc.
Material
1) Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel.
2) RoHS peak wave solder: RoHS peak wave solder temperature rating 260℃±5℃.
3) Operating Temperature: -40℃ - +85 ℃
4) Shield: 0.20~0.25mm thickness brass with tin plated.
5) Gold Plating:1u ,3u 6u 15u 30u 50u.
