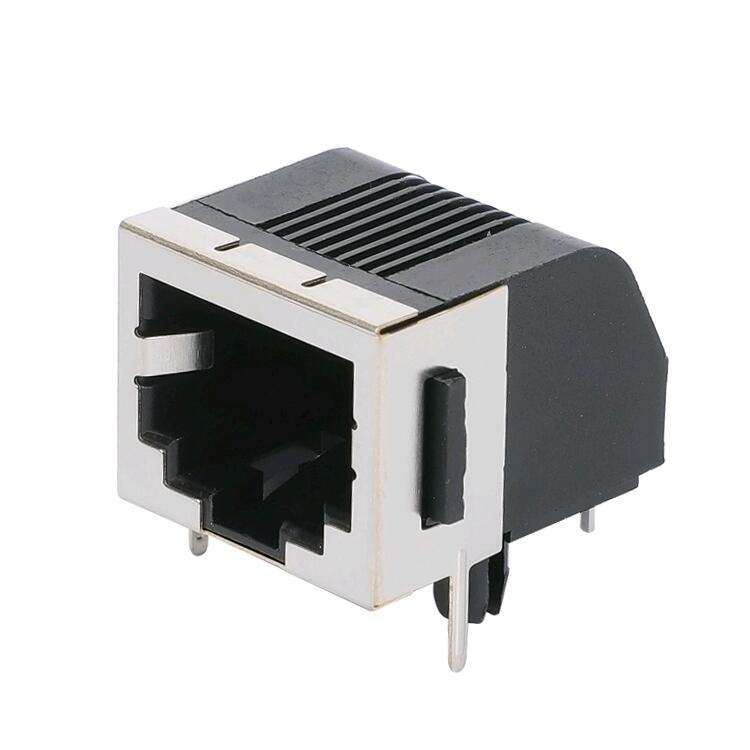

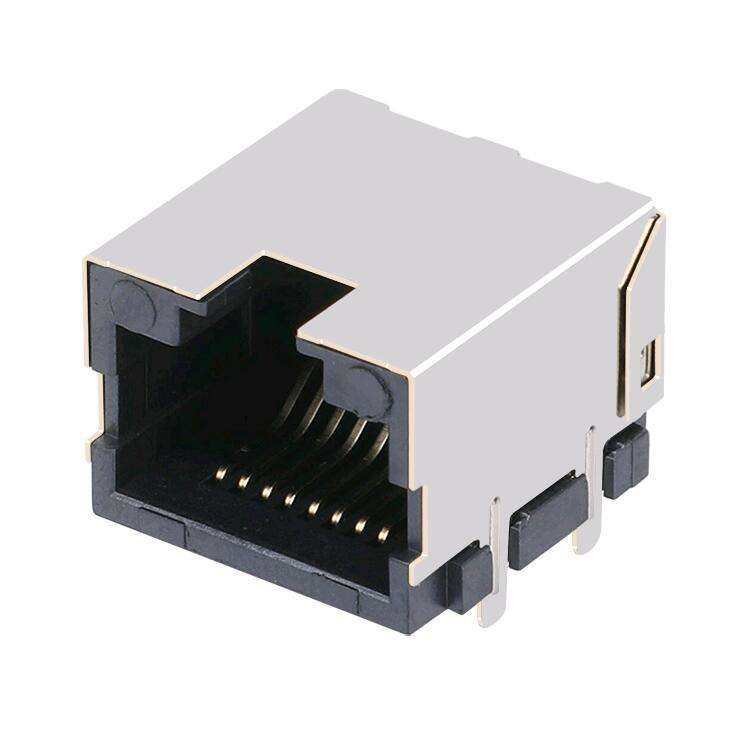

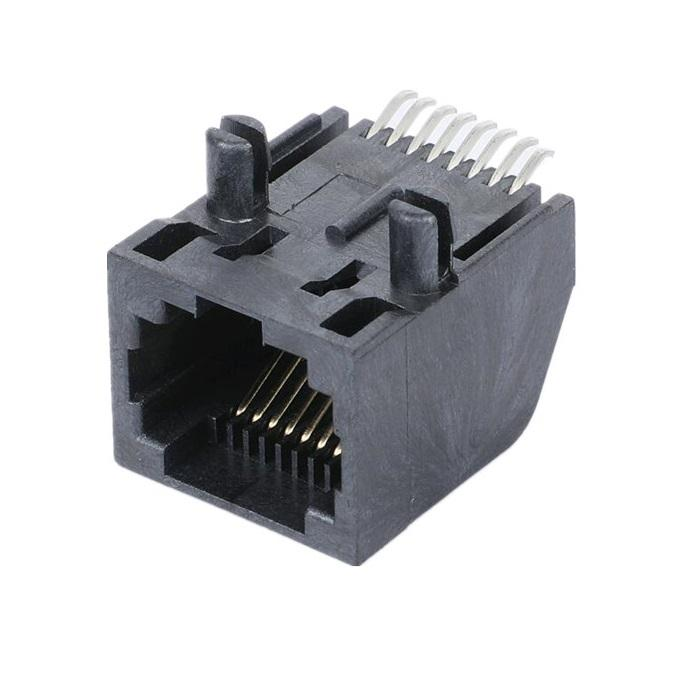

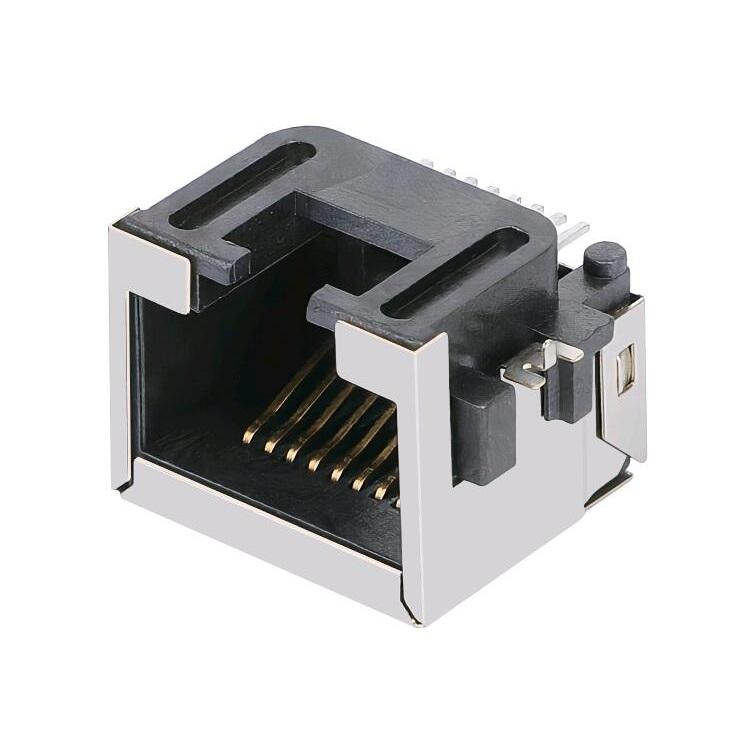

Angle Right Telephone Connector Unshielded 8P8C SMD RJ45 Modular Jack
Description
| Item |
Parameter |
| Connector Type |
RJ45 Modular Jack (Female) |
| Port Configuration |
1‑Port, 1×1 |
| Positions / Contacts |
8P8C, fully loaded |
| Mount Style |
SMD / Surface‑Mount Technology |
| PCB Orientation |
Right‑Angle (90°, side entry) |
| Shielding |
Unshielded (No metal shell) |
| Performance Category |
Cat‑3 (Voice & low‑speed signal) |
| Latch Direction |
Standard‑Latch‑Down |
| Status LED |
None |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Mating area: Gold over Nickel; Solder tail: Tin |
| Locating Pegs |
Yes (for SMT alignment) |
| Housing Material |
High‑temp Thermoplastic, UL94V‑0 |
| Max Current Rating |
1.5 A |
| Max Voltage Rating |
150 V AC |
| Contact Resistance |
≤ 20 mΩ |
| Insulation Resistance |
≥ 500 MΩ |
| Durability (Mating Cycles) |
Minimum 750 cycles |
| Operating Temperature |
‑40 °C ~ +85 °C |
| Compliance |
RoHS, REACH |
| Packaging |
Tray bulk packing |
Without metal shield housing, this connector cuts total BOM cost while maintaining standard RJ45 interoperability. Built‑in locating pegs prevent offset during SMT reflow soldering, solving common SMD‑jack placement deviation risks on mass production lines. No LED indicator; the compact, low‑profile footprint maximizes valuable PCB real estate for densely packed board layouts.
Key Features & Differentiators
- Right‑Angle Side‑Entry SMD Layout.
- Unshielded Construction.
- 8P8C fully loaded contacts.
- SMT locating pegs.
- High‑temperature UL94V‑0 thermoplastic housing.
- Phosphor‑bronze contacts with selective gold‑nickel plating.
- No LED / No metal shell: Simplifies PCB routing, saves board space, reduces part count
- RoHS & REACH compliant: Meets global electronics environmental requirements for export‑oriented products
Typical Application Scenarios
Designed for projects where Cat‑3 voice or low‑speed signal connection is required, the EMI environment is mild, and cost‑efficiency plus SMT mass manufacturability are priorities:
- Voice communication equipment, telephone terminal boards
- Industrial control modules, serial signal interface boards
- Home & commercial smart devices, access control units
- POS terminals, office peripheral hardware
- Test & measurement auxiliary interfaces
- Cost‑optimized IoT devices with RJ45 physical port requirement
