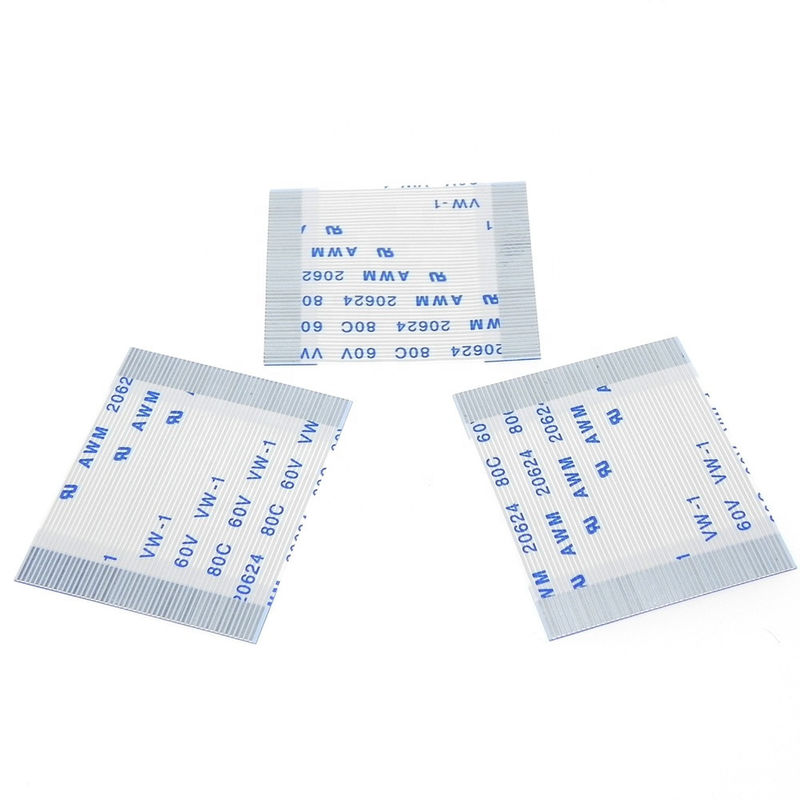

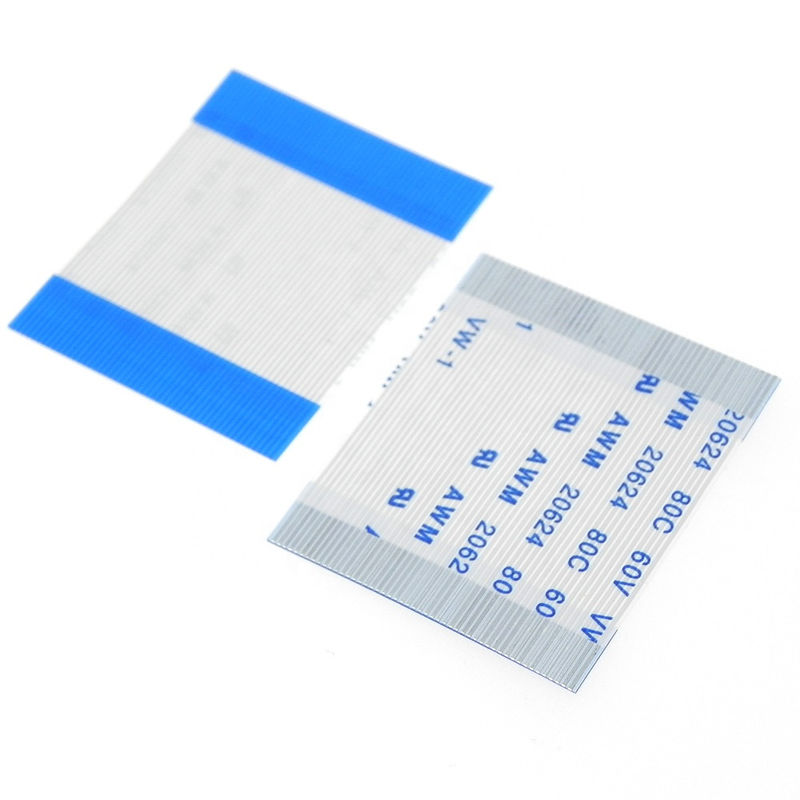

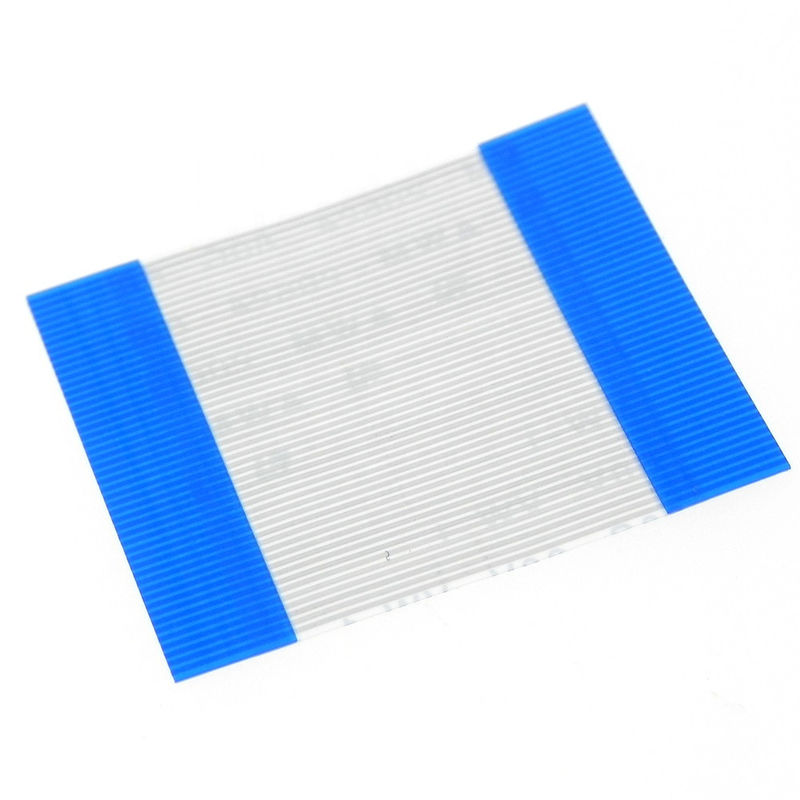

Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector

Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector
Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector
Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector

Large Image :  Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: FFC FLAT CABLE
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in bag; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector

Description
Insulation: PET Item: FFC Flat Cable
Application: Motorcycle, Car,Electronic,TV DVD Printer And Ect Length: 25mm - 10M Or As Customized
Type: Same Side Contact Or Opposite Side Contact Service: OEM/ODM
High Light:

50m FFC Flat Cable

,

80 pin FFC Flat Cable

,

50m flexible flat cable

Dip Type 80 pins 50m length Flexible FFC Flat Cable With Terminal Connector





FFC cable (Flxible Flat Cable)



Normally it is 0. 12 mm, and the thickness of the line can be adjusted according to actual demand.
This is determined by the material used in the FFC, FFC row line is composed of two layers of insulation film, middle pressure flat copper conductors,so the thickness of the ribbon cable IT = + + conductor thickness of film thickness on the thickness of the film, the film thickness of the comonly used are : 0. 043 mm, 0. 060 mm and 0.1mm, commonly used conductor thickness are : 0.03mm, 0.06 mm and 0. 10 mm,etc. For example,the common thickness of 0.12 mm is as follows: 0. 043 (superglue) + 0.043 (down)+0.035(conductor thickness) = 0. 121 mm.



Description

Name FFC Cable
Pitch 0.5mm
Type DIP type
Insulator Flammability UL 94V-0
Current Rating 3A
Contact Resistance(max) 4m ohm Max
Operating Voltage 60V AC/DC
Insulation Resistance(min) 1000M ohm Min at DC 500V
Contact materials Gold/Tin plating
Contact Plated Tin or gold over nickel
Insulator material PA6T
Processing Temperature -40~105℃
Packing Tray Packing
OEM/ODM Accepted



Dip Type 80 Pins 50m Length Flexible FFC Flat Cable With Terminal Connector 0



Packaging & Shipping


1: Usually we ship your order by sea or by air.
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
