Name: 1X2 Tab Up Network Straight RJ45 PCB Connector 8 Pin Female
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: RJ45
Price: 4.10 USD
Availability: InStock

Home > Products > RJ45 PCB Connector >

1X2 Tab Up Network Straight RJ45 PCB Connector 8 Pin Female

1X2 RJ45 PCB Connector

8Pin RJ45 PCB Connector

1X2 rj45 8 pin connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

RJ45

Request A Quote

Product Details

Current Rating:

1.5 Amps

Voltage Rating:

125vac

Withstanding Voltage:

AC 1000V RMS 50Hz Or 60Hz 1 Min

Durability:

750 Mating Cycles Min

Retention Strength:

7.7KG.F Min Between Jack And Plug

Operating Temperature:

-40℃ To 85℃

Highlight:

1X2 RJ45 PCB Connector

8Pin RJ45 PCB Connector

1X2 rj45 8 pin connector

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

inner package:in reel; Outer Package: reel in Carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

1KK pcs

1x4 Multi Port Network Female Connector RJ45 Shielded Socket With Led Light

Get Best Price

Video

PCB RJ45 Alternative Connector 1x6 RJ45 8P8C Modular Connector With Led

Get Best Price

Video

2x4 Port Enterent RJ45 PCB Connector Female Socket 64P

Get Best Price

Video

Cat6 Multi Port 2x4 Ports RJ45 PCB Connector Ethernet Jack Female Panel Mount

Get Best Price

86 13711847246

tina.liaoyan@foxmail.com

86-769-85150486

Contact Now

Product Description

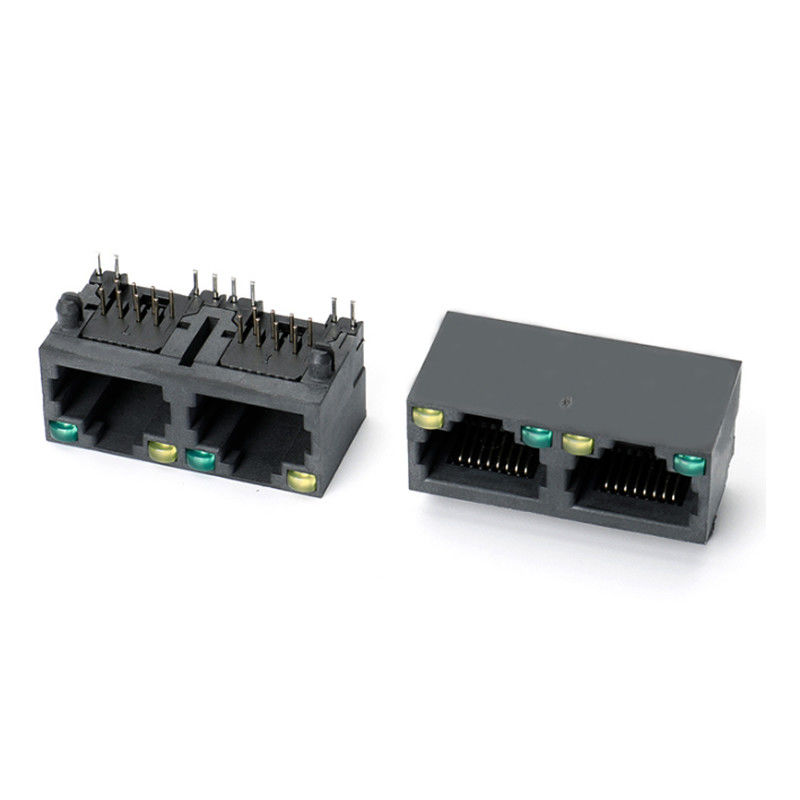

1X2 tab up rj45 modular jack network straight connector rj45 8 pin female connector

Product Description

Electrical
1. Current Rating	1.5 amps
2. Voltage Rating	125vac
3. Insulation Resistance	500 MΩmin
4. Contact Resistance	30 MΩmax
5. Withstanding Voltage	AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Retention Strength	7.7KG.F min between jack and plug
2. Durability	750 mating cycles min
Material
1. Housing	PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2. Contact Wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3. Shield	0.20~0.25mm thickness brass with tin plated
4. Gold Plating	1u ,3u 6u 15u 30u 50u
LED Specification	Standard LED Color	LED Wavelength	Forward (V MAX)	Typical (V TYP)
	Green	560-580 nm	2.5V	2.1-2.2V
	Yellow	580-610 nm	2.5V	2.1-2.2V
Operating and Storage Temperature
Operating Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK,
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.

1X2 Tab Up Network Straight RJ45 PCB Connector 8 Pin Female 0

Product features

All metal shielded modular jack can effectively prevent and reduce external interference and maintain stability. The 90 degree plug-in hole is set with metal buckle in the hole to facilitate plug insertion and maintain stability.

Product function

It is a network signal connector used in network equipment. build a bridge of communication between the blocked or isolated circuits in the circuit,so that the current flow, so that the circuit to achieve the desired function.

Scope of application:Applications include internal LAN and external network connection. Common RJ45 interface products are: network server, routing cat, hub, personal PC terminal, printer and other equipment.

Our advantage

1. Professional connector manufacturer, a variety of styles to choose from, we are factory direct sales, not only quality assurance but also affordable.

2. We can provide free samples for you to test, and then purchase if appropriate.

3. If the product is not what you want, please contact us directly and provide the product specifications you need.

4. Large-scale production workshop, fast delivery, immediate delivery from the spot, no need to worry about delivery.

5. One-to-one after-sales service, please feel free to contact us if you have any questions.

Applications

Integrated RJ45 connector main used to :

10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
