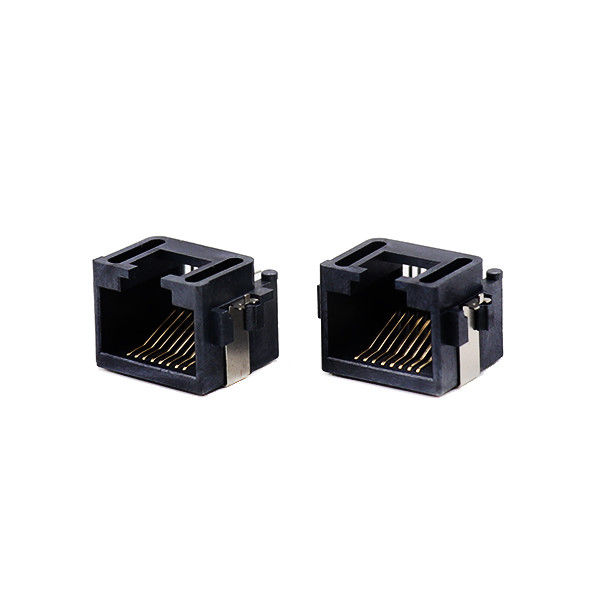

Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle

Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle
Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle

Large Image :  Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: RJ45
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle

Description
Application: PCB Interface Type: PCB Interfaces
Voltage Rating: 125v Isolation Voltage: 1500V/AC
Contact Resistance: 30milliohm Max Operating Life: 750 Cycles MIN
High Light:

Mid Mount RJ45 PCB Connector

,

DIP RJ45 PCB Connector

,

DIP rj45 modular jack

Sinking Type RJ45 Jack Female Modular Jack DIP Type Mid-mount Half Shell Right Angle





Product Details



Our Providing versatile solutions to meet increasing demand for information flow with greater bandwidth requirements

Mounting Type SMT
No. Of Positions 8p8c
Rated current 1.5A AC
Rated voltage 125V
Contact Resistance 40m ohms MAX
Insulation Resistance 500mohms min 100V DC
Extract Force 3-30N
Operation Temperature -40℃ to +80℃
Withstanding Voltage 1000V AC
Housing Thermoplastic
Contact Phosphor bronze
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days



Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle 0



Drawing



Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle 1





Application



Vending Machines

Gaming devices

Home security

Set-top boxes

Web TV

Control units

Security systems

Test Equipment

Vision Systems

Bed Monitors

Breathing Devices

Home Analysis Monitors

Patch panels

Routers

Switches etc



Material

1) Receptacle Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0).
2) Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness .
3) Shield: 0.20~0.25mm thickness brass with tin plated.
4) RoHS peak wave solder: RoHS peak wave solder temperature rating 260℃±5℃.
5) S torage Temperature: -40℃ - +85 ℃

XTK Connector Advantages

1, One stop service of connectors with high quality and best service after sales;
2, the strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification;
3, Quality certification ,Strict shipping ,100% tested before the delivery;
4, we can provide diversified products including RJ 45 connector,Wafer connector ,FPC conncetor and so on ;



FAQ



Q1: Can provide a sample test?

A: Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable.



Q2: How about the MOQ?

A: NO MOQ , 1pcs OK . Small order welocome.



Q3: What’s the lead time?

A: Sample :1-3 days.Mass batch: 5-15 days .depend on the specific delivery time depends on the items and the quantity of your order. Please contact us for details.



Q4: Can make customized products ?

A:Y es, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
