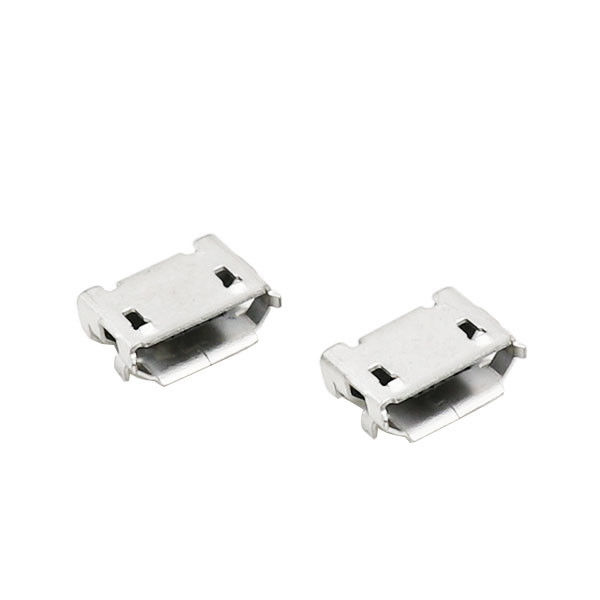

SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001

Large Image : SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	XTKCONN
Certification:	CE,SGS,ROHS,ISO9001
Model Number:	MICRO USB

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiable price
Packaging Details:	inner package:in reel; Outer Package: reel in Carton
Delivery Time:	5-7 days
Payment Terms:	L/C, T/T,Payyal
Supply Ability:	4KK pcs

Contact Now

SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001

Description

Customized:	YES	Connection Force:	3kgf Max
Interface Type:	Micro USB Socket	Color:	Silver
Insulation Resistance:	≥100mΩ	Disconnection Force:	0.7kgf Min
High Light:	ISO9001 Micro USB Connectors , 6.9mm Micro USB Connectors , 6.9mm 5 pin charger connector

Micro USB Connector Plugs Female Terminal 6.9mm 5Pin SMD

Product Description

Mounting Type	SMT
No. Of Positions	5p
Rated current	1.0A AC
Rated voltage	30V
Contact Resistance	30m/pin ohms MAX
Insulation Resistance	1000mohms min
Insertion Force	8-35 N
Operation Temperature	-25℃ to +85℃
Withstanding Voltage	500V/1min AC
Housing	LCP
Contact	Copper alloy
Gender	Female
Price Term	FOB
Durability cycles	5000 Cycles Min
Lead Time	7-10 working Days

SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001 0

Drawing

Typical Application

For data transfer and charging:

Mobile phone

mobile power

charger etc.

FAQ

1: May I get free samples?

A: Sure, 10-20 pcs of free samples are available for normall models. We need to confirm height, operation force and price before shipment.

2: When can I get the quotation ?

A: We will send you quotation within 24 hours.

3: When can I get the samples ?

A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.

4: Can you accept small order, like 1000 pcs , 2000 pcs ?

A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.

5: What's the lead time of bulk order ?

A: Normally, lead time is 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.

6. What is the payment term ?

A: For small order, pls remit payment by PayPal. For big order, pls remit payment by TT.

7. Can you open mold for teminal order or uncommon models ?

A: OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
