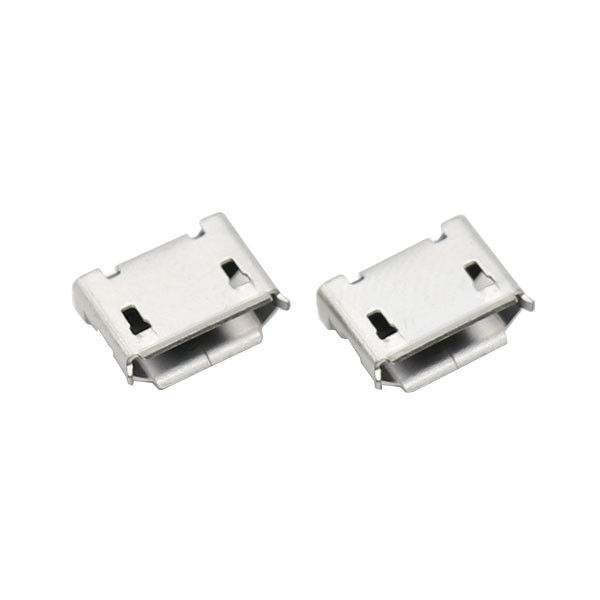

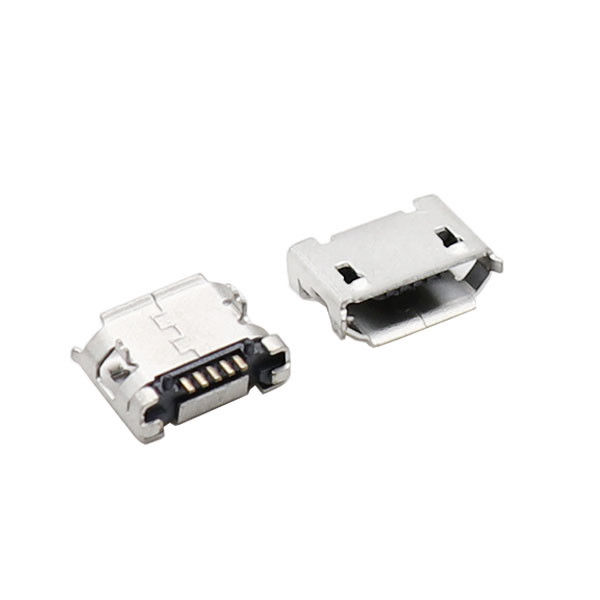

5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia

5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia

5.9mm Micro USB Female Charging Port

Sony Micro USB Female Charging Port

5.9mm mini usb female socket

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

MICRO USB

Contact Us
Request A Quote
Product Details
Service:
OEM/ODM
Operation Temperature:
-25℃ To +85℃
Housing:
LCP
Lead Time:
7-10 Working Days
Insulation Resistance:
1000mohms Min
Contact Resistance:
30m/pin Ohms MAX
Highlight:

5.9mm Micro USB Female Charging Port

,

Sony Micro USB Female Charging Port

,

5.9mm mini usb female socket

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
2KK pcs
Product Description



USB Charging Port Connector for Sony Xperia MICRO USB female Connector 5.9mm pitch





With more than 10 years of export experience along with excellent quality, advanced services and competitive prices, EtopLink has won numerous customers' trust and support. Etoplink is always trying to shared with you the newest,highest quality mobile phone parts, accesories, and electronic products, and most suprising pricing. More importantly,We provide special service, accepting Small Orders with Custom Branding for customers, in order to grow with our customers. We will be happy to shared with you the latest information with you and make your own Brand.



 Specifications



Mounting Type SMT
No. Of Positions 5p
Rated current 1.0A AC
Rated voltage 30V
Contact Resistance 30m/pin ohms MAX
Insulation Resistance 1000mohms min
Insertion Force 8-35 N
Operation Temperature -25℃ to +85℃
Withstanding Voltage 500V/1min AC
Housing LCP
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days



5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia 0



Drawing

5.9mm Pitch Micro USB Female Charging Port Mini USB Female Socket For Sony Xperia 1



Product Application


1) Smart Lock.
2) Charging wires / charger.
3) Mobile power supply.
4) Camera module.
5) Computer Peripheral Products.
6) action camera manual Mini Sport DV



Packaging & Shipping



1. Normally within 1~3 working days once payment received;

2. Package will be in a good condition with suitable size to save the freight;

3. Customer shipping account are acceptable;

4. If the declared value for customs clearance are required, please notice us before shipping.
