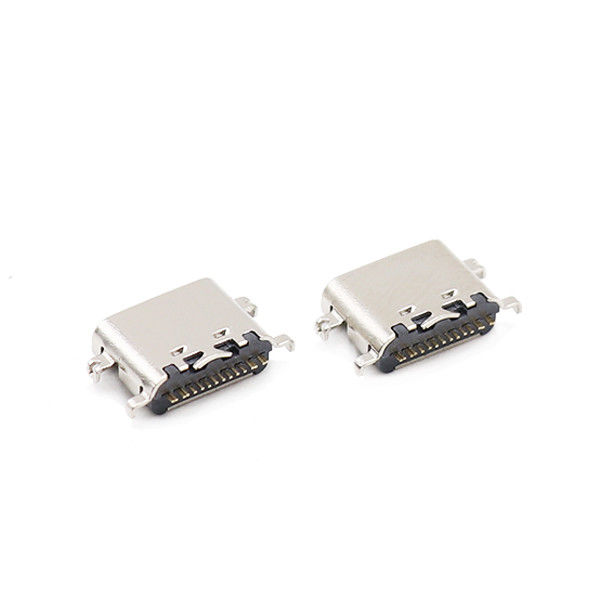

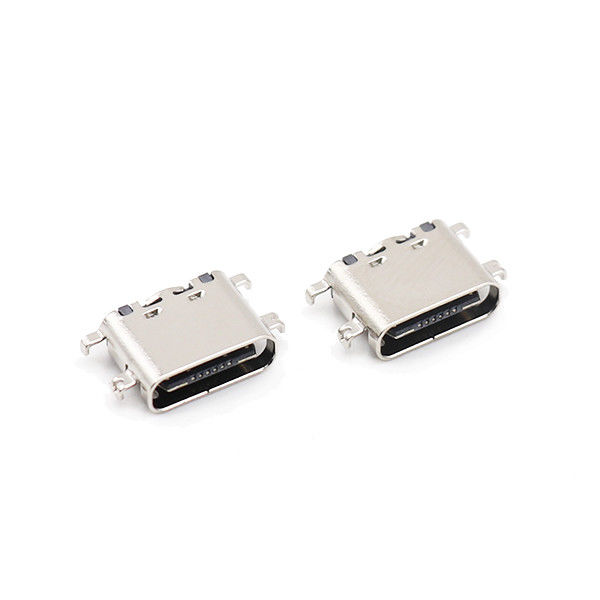

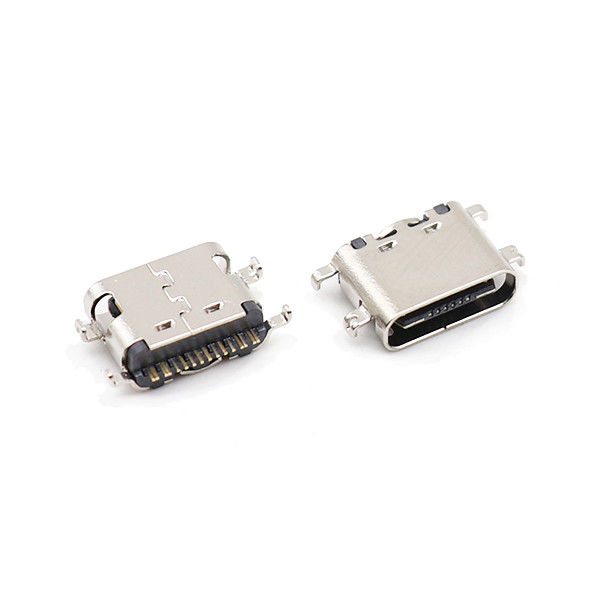

16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm

16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm
16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm
16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm 16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm 16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm 16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm

Large Image :  16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: TYPE16-N1N1-CB080-A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm

Description
Positions: 16pin Rated Current: 3.0A AC Max
Rated Voltage: 30V Max Contact Resistance: 40m/pin Ohms MAX
Insulation Resistance: 100mohms Min 100V DC Withstanding Voltage: 100V AC
High Light:

16pin Type C Connectors

,

Type C Connectors 3.1mm

,

3.1mm usb type c 16 pin

16pin SMT charger Single MID-MOUNT USB type C Type Usb 3.1 Type C Female Connector





The compact Type-C Connectors expanded family supports up to 10 Gbps speeds and offers robust, reliable connectivity in IoT, wearable device and other high-speed data I/O applications.

USB Type-C connectors use high-temperature Nylon or Nylon 64 as housing material and a 3-tier insert-molding process to ensure high-mating durability and electrical reliability of the connector.

 Specifications

Mounting Type SMT
No. Of Positions 16p
Rated current 3.0A AC Max
Rated voltage 30V Max
Contact Resistance 40m/pin ohms MAX
Insulation Resistance 100mohms min 100V DC
Insertion Force 5-20 N
Operation Temperature -40℃ to +85℃
Withstanding Voltage 100V AC
Housing UL94 V-0
Contact Copper alloy
Gender Female
Price Term FOB
Durability cycles 10000 Cycles Min
Lead Time 7-10 working Days



16 Pin SMT Charger Single Mid Mount Type C Connectors Female 3.1mm 0



Competitive Advantages



1, Strict shipping ,100% tested before delivery

2, we also can provide the customized products as the request of clients

3, Strong R&D team specialized in connector and model design.

4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

5, samples can be provided for free in 1-3 days .



Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

4. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

5. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation..
