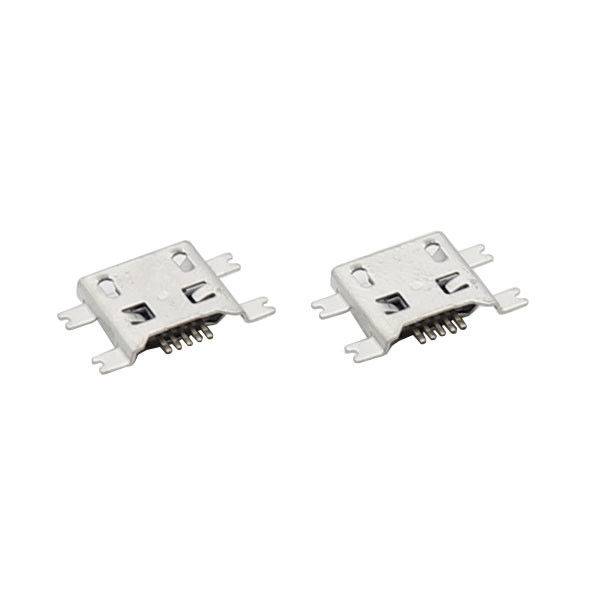

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT

1.17mm micro usb female charging socket

SMT micro usb female charging socket

1.17mm SMT USB connector

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

MICRO USB

Contact Us
Request A Quote
Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT
Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT
Product Details
Keywords:
Micro Usb Connector
Durability:
10000 Cycles
Storage Temperature:
-30℃ ~ +80℃
Insulation Resistance:
100M Ohms Min./500 VDC
SMT Peak Temperature:
245 ± 5℃ 3~5S
Application:
Phone, Tablet,electric Device
Highlight:

1.17mm micro usb female charging socket

,

SMT micro usb female charging socket

,

1.17mm SMT USB connector

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
inner package:in reel; Outer Package: reel in Carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
3KK pcs
RELATED PRODUCTS
Good price LCP Micro Usb Female Connector Port 5 Pin 5.9mm Pitch With Edge online Video

LCP Micro Usb Female Connector Port 5 Pin 5.9mm Pitch With Edge

Get Best Price
Good price Plain Charging Port Female Micro USB Plug Socket 5P 5.9mm online Video

Plain Charging Port Female Micro USB Plug Socket 5P 5.9mm

Get Best Price
Good price Female 5 Pin 5.9mm Pitch Mini Micro USB Connectors With Post Plain Port online Video

Female 5 Pin 5.9mm Pitch Mini Micro USB Connectors With Post Plain Port

Get Best Price
Good price SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001 online Video

SMD Micro USB Connectors 5 Pin Charger Connector 6.9mm ISO9001

Get Best Price
Contact Us
86 13711847246
tinaliao@xtkconnector.com
86-769-85150486
Contact Now
Product Description

Sink Type Car Charger Panel Mount Micro USB Female Connector Mid-Mount 1.17 SMT





Product Description





Item sink type car charger panel mount micro usb female connector
Model MCU117-T1T1-2010-A
Current Rating 1A AC/DC
Operation Temperature -30℃ ~ +80℃
Storage Temperature -30℃ ~ +80℃
Contact Resistance 50m ohms max.
Insulation Resistance 100M ohms min./500 VDC
Durability 10000 cycles
SMT Peak Temperature 245 ± 5℃ 10S
Insulator Material High Temperature Thermoplastic with g. f , UL 94V-0
Terminal Material copper alloy, T=0.20mm
Shell Material stainless stell, T=0.25mm
Terminal Finish 50u" min nickel underplated on allover, gold
plating on contact arer,
80u" min tin on solder tail
Shell Finish 50u" nickel underplater on allover, gold flash on solder latch

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT 0

Drawing

Sink Type Panel Mount Micro USB Female Charging Socket Connector 1.17mm SMT 1

Material Specification

1) Mid Plate: stainless steel
2) Front shell : stainless steel
3) Housing: Hig Temperature resistant plastic,UL94V-0.
4) Contacts : Copper Alloy

Product Application

Our connectors are widely applied to lots of cummunications industry ,cusumer electronics,computer peripheral products , action camera manual mini sport DV, rear DVR video recorder , automotive filed, medical equipment , military industry and so on .
