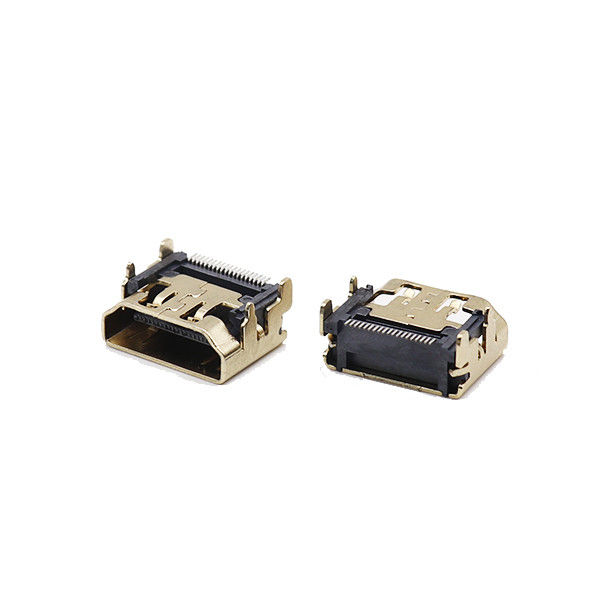

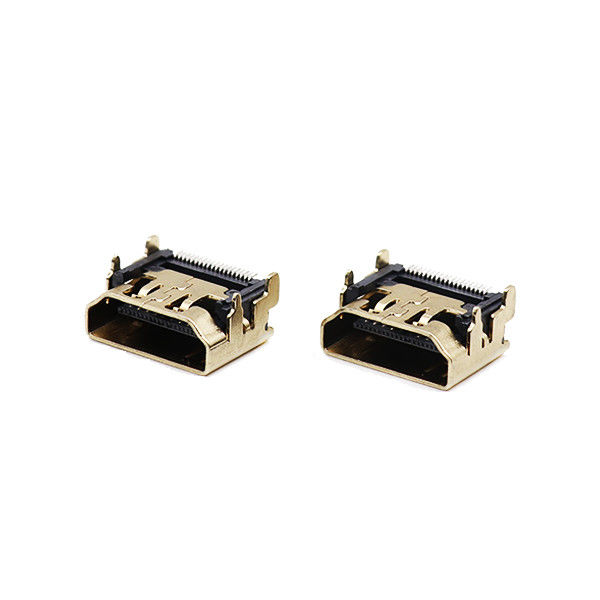

UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear

UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear
UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear
UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear

Large Image :  UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: HDA6X-XXXX-X0XX-A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear

Description
Position: 19p Rated Current: 1.5A AC
Rated Voltage: 30V Insulation Resistance: 100mohms Min 100V DC
Withstanding Voltage: 100V AC MAX Gender: Female
High Light:

UL94V-0 HDMI Cable Connectors

,

SGS HDMI Cable Connectors

,

UL94V-0 19 pin type a connector

19pin HDMI Cable Connector A type without ear SMT type Dip In TV Boxes



High Definition Multimedia Interface (HDMI) connectors deliver the highest quality, high-definition content by providing an uncompressed digital connection from any audio/video source to an audio and/or video monitor over a single cable. The single interface of the HDMI connector makes it economical and easy to use as it combines both video and multi-channel audio into a single-port connection, eliminating the cost, complexity, and confusion of multiple cables used in A/V systems



Description

HDMI is an industry-supported and evolving standard that meets the needs for uncompressed, digital audio/video interface for high-definition consumer electronics and portable hand-held devices.
Specifications

Mounting Type SMT
No. Of Positions 19p
Rated current 1.5A AC
Rated voltage 30V
Contact Resistance 30m ohms MAX
Insulation Resistance 100mohms min 100V DC
Operation Temperature -40℃ to +60℃
Storage Temperature -10℃ to +85℃
Withstanding Voltage 100V AC MAX
Housing LCP,UL94V-0 black
Contact copper alloy
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days


UL94V-0 HDMI Cable Connectors 19 pin type a connector SMT Type SGS Without Ear 0

Typical Application
For HD Output::TV, Set-Top Box, projector, Tablet PCs / Notebook PCs, Driving Recorder,DVD Players/Recorders, Digital camera ,LCD and TV panel ,Satellite Boxes ,Video / DVD products ,Video games, Smart Phones and Mobile Devices Smartphones .This is not a definitive list of applications for this product. It represents some of the more common uses. etc.

Primary Competitive Advantages

  • Small orders accepted
  • Factory direct export
  • With 20 years of professional production experience as a manufacturer of precision connectors
  • Free samples is available
  • Prompt delivery
  • Green product
  • Strong researching and developing team
  • Experienced staff
  • ISO9001,ROHS
