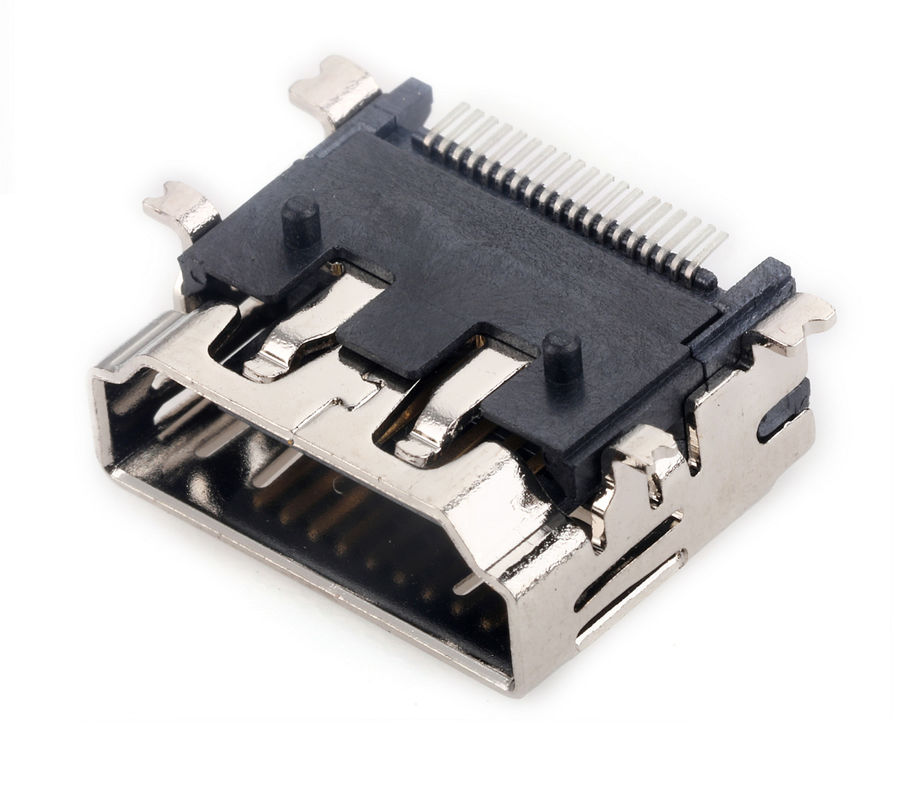

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles

SMT HDMI PCB Socket

10000cycles Type A Connector

Horizontal HDMI PCB Socket

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

HDMI Cable Connector

Contact Us
Request A Quote
Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles
Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles
Product Details
Packaging:
Tape & Reel
Contact:
Copper Alloy
Type:
DVI Connector, With Cover And Without Screw
Shell:
Copper Alloy Or Iron
Automatic Cycling:
10000 Cycles
Used For:
TV,set Top Box,computer Board,tablet PC
Highlight:

SMT HDMI PCB Socket

,

10000cycles Type A Connector

,

Horizontal HDMI PCB Socket

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiable price
Packaging Details
vacuum package,boxes in carton
Delivery Time
5-7 days
Payment Terms
L/C, T/T,Payyal
Supply Ability
1KK pcs
RELATED PRODUCTS
Good price 1X2 Tab Up Network Straight RJ45 PCB Connector 8 Pin Female online Video

1X2 Tab Up Network Straight RJ45 PCB Connector 8 Pin Female

Get Best Price
Good price Black 8 Pin Female Straight RJ45 PCB Connector Jack Network Plug 8p8c online Video

Black 8 Pin Female Straight RJ45 PCB Connector Jack Network Plug 8p8c

Get Best Price
Good price Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle online Video

Sinking Type Mid Mount RJ45 PCB Connector Female Modular Jack DIP Right Angle

Get Best Price
Good price Single Port Tab Down 8 Pin Female RJ45 PCB Connector With Filter Ethernet online Video

Single Port Tab Down 8 Pin Female RJ45 PCB Connector With Filter Ethernet

Get Best Price
Contact Us
86 13711847246
tinaliao@xtkconnector.com
86-769-85150486
Contact Now
Product Description

Horizontal A Type Female SMT connector PCB HDMI compatible socket for SET TOP BOX





Description



Meterial

 Base High Temperature plastic UL94V-0
Color Black
Conat Copper Alloy
Shell Copper Alloy or Iron
Mechanical Insertion Force 4.5kgf MAX
Withdrawal Force 1.0~4.0kgf
Electrical Contact Current Rating 0.5A
Dielectric Withstanding voltage 500V AC
Contact Resistance

Contact:30 Milliohms MAX,

Shell: 50 Milliohms MAX
Dielectric withstanding Voltage 500V AC
Insulation Resistance

100 Megaohms Min at 500V AC(Unmated)

10 Megaohms Min at 150V DC(Mated)
Environmental Temperature Range -25℃ To +85℃

Horizontal HDMI PCB Socket Female SMT Type A Connector 10000 Cycles 0



Applications

They can be used to operate all types of computers, TV, Set top box, VCRs, stereo and car radio equipments, audio devices, video recorders, and home applications.



Packing

Inside: Reel packing,400PCS per reel,

Outside: carton,3200PCS per carton.



Our Services

Price Term

♦ FOB Shenzhen

Payment Terms

♦ T/T, Paypal

Delivery

♦ UPS, DHL, FEDEX,TNT

♦ Select the most economic and efficient way.

♦ Sent the tracking number to u after delivery.

Samples

♦ Free samples will be sent on request.

♦ The samples lead time is within 3-5 days after u confirmed.
