4-Pin SMT SMD 1.3mm Black Phosphor Bronze 12V 1A DC Female Audio Video Jack Socket Nylon Housing Right Angle Connectors

Product Description

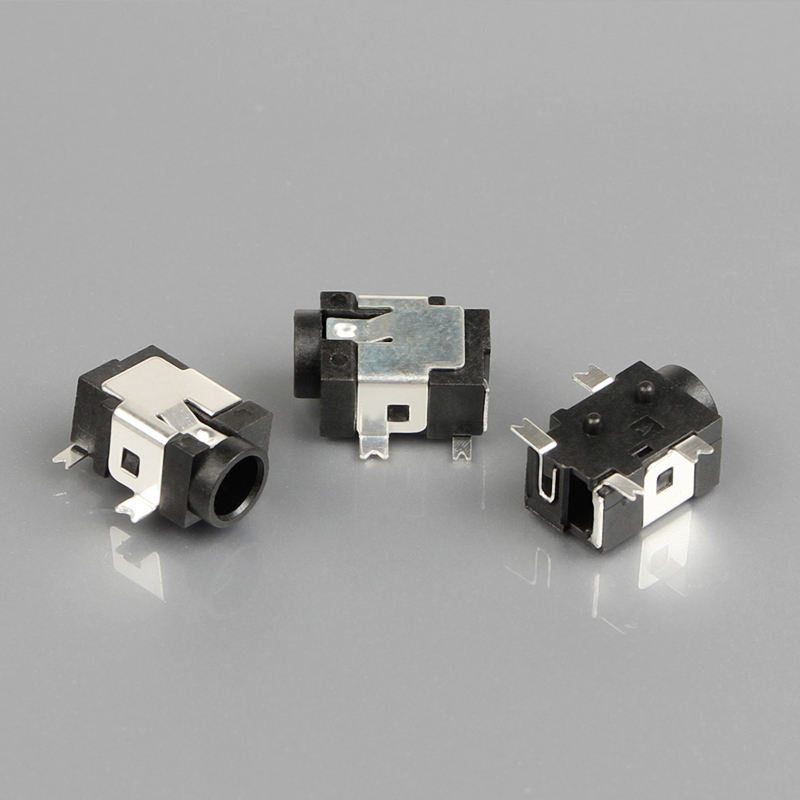

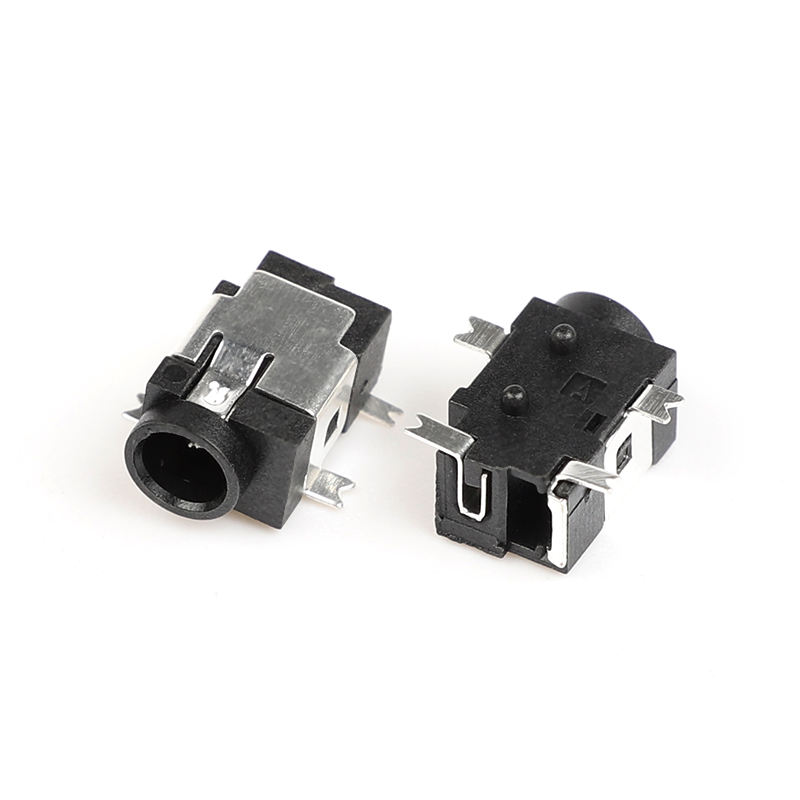

The 4-Pin SMT SMD 1.3mm DC Female Audio Video Jack Socket is a compact right-angle PCB connector designed for space-saving electronic applications. Featuring a phosphor bronze contact material, nylon housing, SMT/SMD mounting design, and 12V 1A electrical rating, this connector provides a practical solution for PCB power and audio/video interface connections.

Designed for automated surface mount assembly, this 1.3mm DC jack socket connector is suitable for consumer electronics, intelligent devices, embedded systems, industrial control equipment, AI-enabled hardware, and compact electronic products where reliable PCB integration and efficient space utilization are required.

Compact PCB Mount Design

The vertical DIP structure allows the DC power jack socket to be directly mounted onto the PCB, making it suitable for electronic products with limited installation space.

Compared with larger power connection solutions, PCB-mount DC power connectors are commonly selected for:

1>Compact product designs
2>Embedded electronic systems
3>Smart control devices
4>Portable equipment

Highlights

RCA Female Connector: Ideal for audio and video applications.
Brass Touch Head Material: Durable and reliable connection.
1A Current Rating: Suitable for low to medium power needs.
30V Voltage Rating: Safe for various electronic devices.
Right Angle PCB Mounting: Easy integration into printed circuit boards.

Female DC Power Socket Structure

Provides a reliable connection interface between external DC power adapters and internal electronic circuits.

Suitable for AI and Smart Hardware Applications

Designed for compact electronic systems including AI edge devices, smart monitoring equipment, embedded controllers, and IoT terminals.

PCB Connector Orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90-degree increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degrees, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degrees, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

FAQ

Q1.Are you a factory or a trading company?

A1.We are a factory; we can guarantee our price is first-hand, very
reasonable and competitive.

Q2.How does your factory do regarding quality control?
A2.All the products will be 100% checked before shipment.

Q3.When can I get the price?
A3.Usually, we quote within 24 hours after we get your inquiry.

Q4.How could I get a sample?

A4. If you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. The express delivery charge depends on the quantity of the samples.

Q5.What is the price of shipping?
A5.Depending upon the port of delivery, prices vary.
