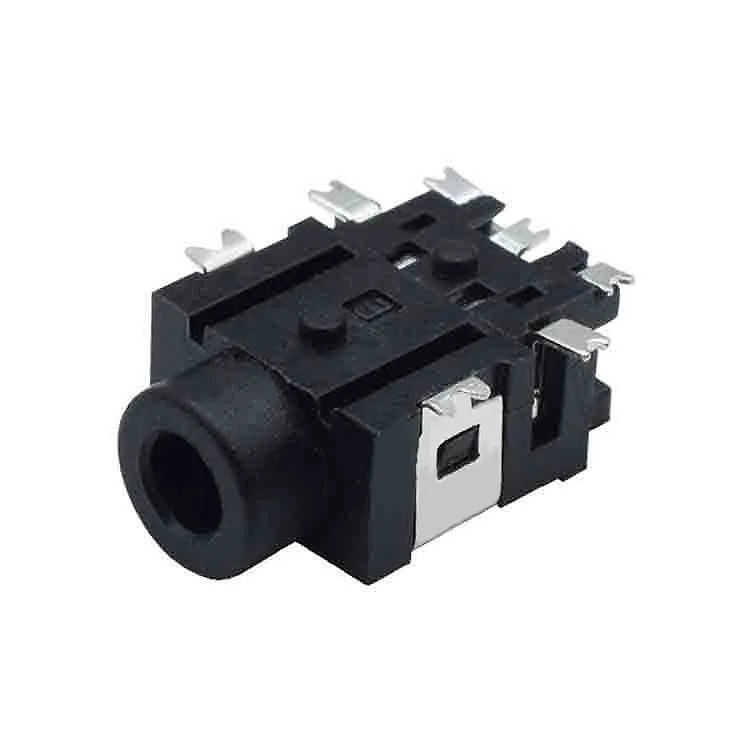

7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket

7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket
7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket
7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket 7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket 7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket

Large Image :  7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE,SGS,ROHS,ISO9001
Model Number: Phone Jack
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket

Description
PRACTICAL TEMPERATURE RANGE: -30~70℃ DISCONNECTION FORCE: 3~20N
INSULATION RESISTANCE: ≥100MΩ DIELECTRIC STRENGTH: AC 500V Ims(50~60Hz)FOR 1 MIN
RATING: DC 30V 0.5A Life Test: 5000 (times)
High Light:

7Pin Stereo Audio Jack

,

2.5mm Stereo Audio Jack

,

2.5mm 7 Pin Jack

7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket



Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket 7 Pin Phone Jack



Product Description

product name headphone socket
Product number PJ-24
Jack 2.5mm
Current rating DC 30V 0.5A
DIELECTRIC STRENGTH AC 500V ims(50~60Hz)FOR 1 MIN
Contact resistance 50mΩ MAX.
Insulation resistance 100mΩ
Withstand voltage 500V AC for 1Min
Life test 5000 (times)
Insertion force 3-20N
waterproof level IP67
Certification ROHS



















































Advantage

Even if we receive an inquiry in the early morning, we will still respond to your inquiry;

Provide a one-stop solution;

Accept return or exchange within 365 days if any quality issue;

Free samples;

Prompt delivery from stock.



Packing

100% checked before shipment;

Accept return and refund if any quality issue;



Other names for PCB Connectors


PCB Connectors are known as PCB Interconnect products. Specific terms are also used for the two sides of the connection. There are also some other names for PCB connectors: Male PCB Connectors are usually referred to as Pin Headers, as they are simply rows of pins, while Female PCB Connectors are named Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.



Details About Quality

Focus on details with strict production standards;

Metal cover:  Made from high-quality metal materials nickel plating on the surface increases loading performance and prevents

oxidation on it;

Dome contact:  Select nice stainless steel/silver coated copper dome contact, high rebound life, and good contact performance, making the product more durable;

Switch cap:  The suitable switch cap with a smooth surface, and perfect hand-feeling.

100% Copper terminal:  Select good copper and never replace it with iron materials, quality promise;

High-temperature resistance film:  The film can stand for 260 degrees of high-temperature reflow solder;

The foundation by exquisite craftsmanship:  Hi-tech foundation is the basis for quality;

Make semi-finished goods:  Fully automatic assembly film, Reduces the rate of defective traditional crafts. Cost saving.



PCB Connector Orientations


The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degrees, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degrees, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
