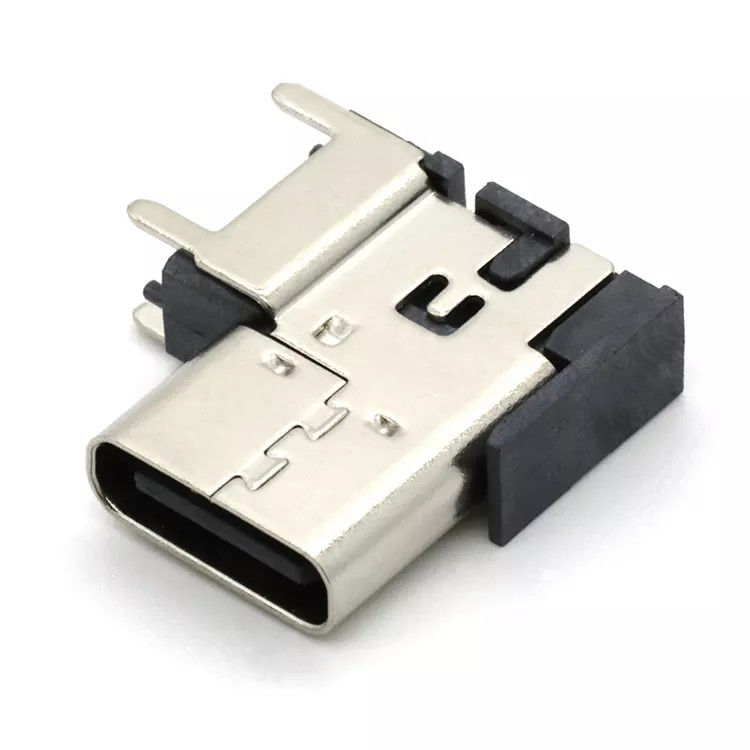

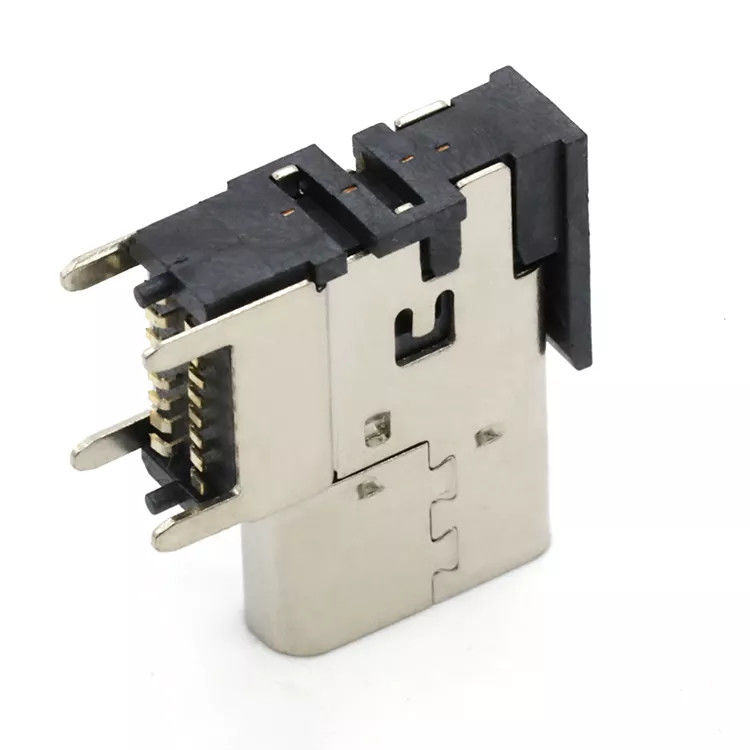

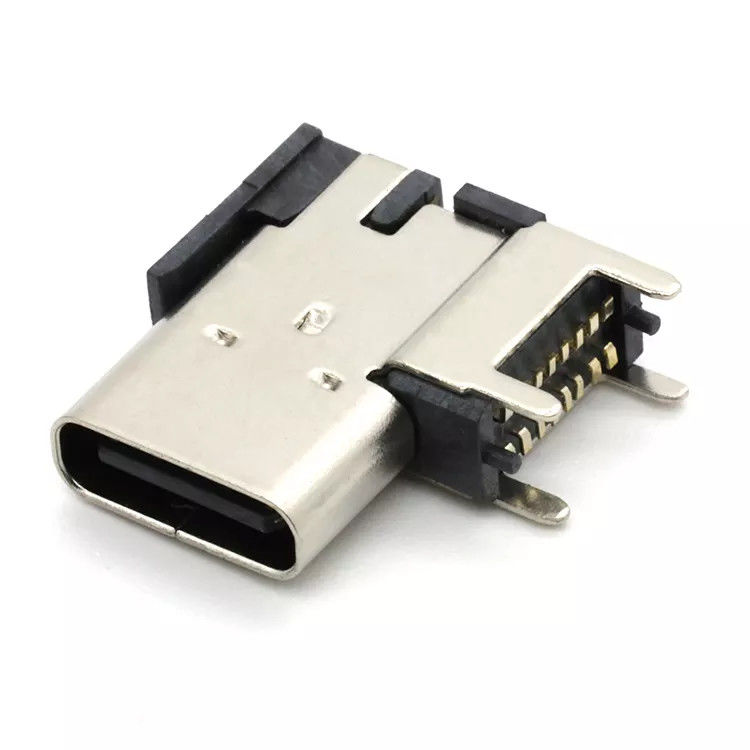

Upright Side USB 3.1 Type C Connectors Female Socket 16Pin

Upright Side USB 3.1 Type C Connectors Female Socket 16Pin
Upright Side USB 3.1 Type C Connectors Female Socket 16Pin
Upright Side USB 3.1 Type C Connectors Female Socket 16Pin Upright Side USB 3.1 Type C Connectors Female Socket 16Pin Upright Side USB 3.1 Type C Connectors Female Socket 16Pin Upright Side USB 3.1 Type C Connectors Female Socket 16Pin

Large Image :  Upright Side USB 3.1 Type C Connectors Female Socket 16Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE,SGS,ROHS,ISO9001
Model Number: USB TYPE C
Payment & Shipping Terms:
Minimum Order Quantity: 400pcs
Price: Negotiable price
Packaging Details: Hermetic bag,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

Upright Side USB 3.1 Type C Connectors Female Socket 16Pin

Description
Insulator: LCP UL94V-0, Black Contact: C2680 T=0.15MM, Contact: Gold Plated, Nickel Under Plated Over All
Dielectric Withstand Voltage:: 100V AC Min Operating Temperature: -25℃~+ 85℃
Shell: Stainless Steel (SUS201),T=0.30MM Withdrawal Force: 5N~20N
High Light:

16Pin Type C Port Connector

,

ISO9001 Type C Port Connector

,

100V AC Type C Connectors

Upright Side USB 3.1 Type-c Port Connector Female Socket Connector 16Pin





Description



Title
USB 3.1 type-c port female 16Pin
Insulator
LCP UL94V-0, Black
Shell
Stainless Steel (SUS201),T=0.30MM
Contacts
C2680 T=0.15MM, Contact: Gold Plated, Nickel Under Plated Over All
Current Rating
3.0A
Dielectric Withstand Voltage
100V AC Min
Contact Resistance
40 Millonhm Max
Insulation Resistance
100 Megohms Min.
Operating Temperature
-25℃~+ 85℃
Mating Force
5N~20N
Unmating Force
8N~20N(Initial),6~20N(After 10,000Cycles)
Durability
10,000 Cycles
Certification
ISO9001,ROHS,SGS
Packaging
Tape&Reel
SPQ
400PCS/Reel





Product Application



XTK connectors are widely applied to lots of industries, such as an unmanned aerial vehicles, the communications industry, consumer electronics, computer peripheral products, action camera manual mini sports DV, rear DVR video recorders, the automotive filed, medical equipment, the military industry, and so on .





OEM/ODM Capability



Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.

OEM services encompass buyers' logos or labels, design services plus a whole after-sales support package.



Customer Satisfaction



Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.



Payment Terms



There are many payment methods available such as D/A, D/P, T/T and Paypal.



Advantage



1. Lead customers to choose the best connection solution way.

2. 20pcs free sample. Support more than 20pcs sample for old customers.

3. OEM/ODM service. We have a strong R&D team to support connector design.

4. Quickly respond, email reply within 12 hours, online inquiry is welcome.

5: Service attitude: our business is not just connector supply, it's about delivering promises.
