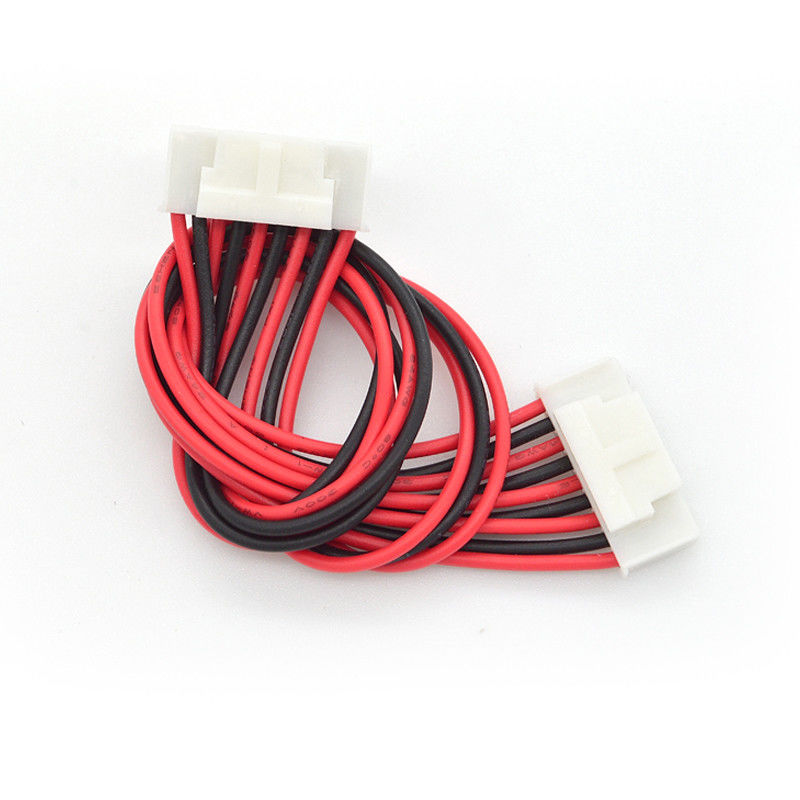

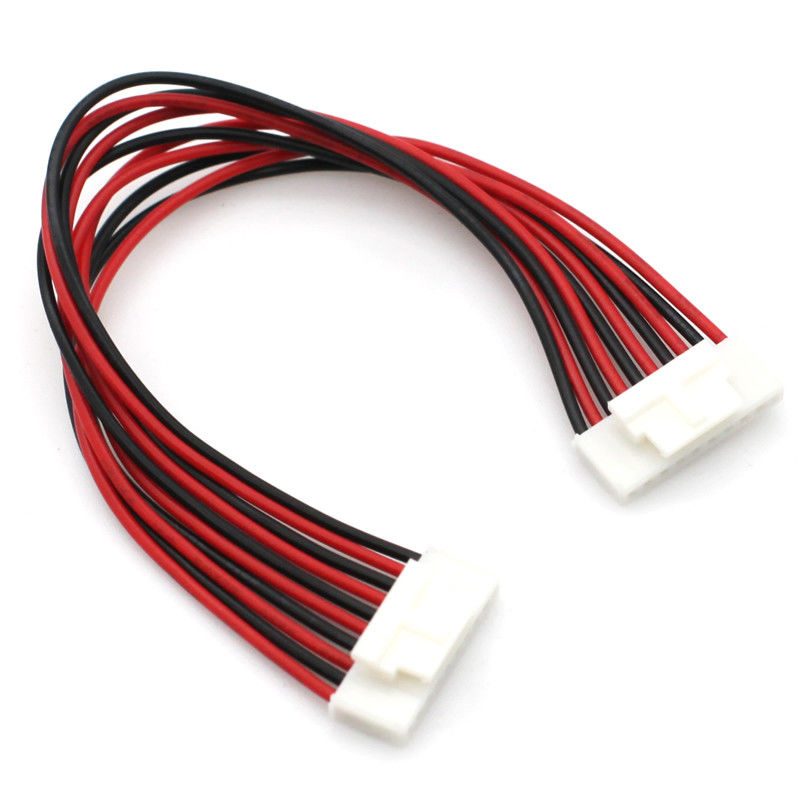

JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug

JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug
JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug

Large Image :  JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE,SGS,ROHS,ISO9001
Model Number: electronic wire harness
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable price
Packaging Details: Hermetic bag,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug

Description
Pitch: 2.0mm Pin: 10P
Test: 100% Testing Inspection Cable Material: Bare Copper, Tinned Copper
Color: Red, Black, Yellow, White, Blue, Green, Orange, Purple, Gray, Brown Sampels: Available
High Light:

JST Double End Cable

,

2.0mm Pitch Double End Cable

,

10Pin Electronic Wire Harness

Double End JST 2.0Pitch 10 Pin wire to board Connector plug with Wire Cables





Product Description

Wire harness
Specification
Pitch
2.0mm
Pins
2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12 Pin
Outer diameter
1.4mm
Wire diameter
11/0.13
Applicable wires
AWG24#
Rated voltage
300V
Cable Length
150mm (According to customers' request)
Operating Temperature
-20℃-85℃
Service
OEM/ODM products are acceptable.



JST 2.0mm pitch connector wire harness


2.0mm Connector plug electronic wire harness.Tinned copper wire plastic head at each end. Suitable for use, easy to install. The cable wire type is 24 AWG. The specifications are general and standard, suitable for general use. The micro connector fits well with plug, easy to install and use. Terminal spacing is 2.0 mm/0.08 inch, the pins are sturdy, and will not lose easily.





Each wiring harness has its meaning, and each wiring harness needs to let us know:



1. What is the pitch?

The pitch of the connector (1.0/1.25/2.0/2.5/3.0/3.5/3.96/ etc.)



2. How many the length of the wiring harness?

Custom length according to customer's request


3. How many pins is the wiring harness?

The pin of the connector and Pitch (single row and double row)



5. What is the direction of the wiring harness?

according to the customer's request


4. Which wire gauge(AWG) do you need?

If you do not know, the temperature, voltage, and current will be provided to us, we will suggest a suitable wire gauge to you.



6. What colors do you require?

We have Red, black, yellow, green, blue, white, brown, grey, orange, purple, pink, and yellow/green.



Application



It adopts environmental protection materials, cold and high-temperature resistance, conductive, durable, and widely used in electrical appliances, automobiles, robots, lighting, LED strips,toys, PCB control panel, speakers, audio, batteries, toys, household appliances, also including:



makeup mirror lights

medical electronics

automotive electronics

smart security

smart home appliances

PCB motherboards

communication electronics

model airplane toys

household appliances

machine control equipment

robots

Internet of Things

lighting and other products.



Features and Benefits



1. Environmentally safe material is impact resistant and corrosion resistant;

2. Specification diversification supports customization;
3. Fine workmanship beautiful and durable;
4. Professional material and surface treatment technology.





FAQ


1) Do you accept small orders?

Yes. If you are a small retailer or starting up a business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long-term relationship.



2) How about the price? Can you make it cheaper?

We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, and we are assuring you to get the most competitive price.


3) Do you offer free samples?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost."


4) Do you accept Customization?

Yes, we can do OEM and ODM for our customers.


5) What are your payment terms? any third-party payment?

We usually accept T/T, Alibaba trade assurance, Western Union, Paypal, and L/C.


6) Can I visit your company and factory in China?

Sure. You are very welcome to visit our company in Shenzhen, China.


7) How Can I place an order?

You could directly place an order after sending us an inquiry to any of our sales representatives to get detailed order information, and we will explain the detailed process.





JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug 0JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug 1JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug 2

JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug 3



Product Process

JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug 4



Our Customer

JST 2.0mm Pitch 10Pin Double End Cable With Wire To Board Connector Plug 5
