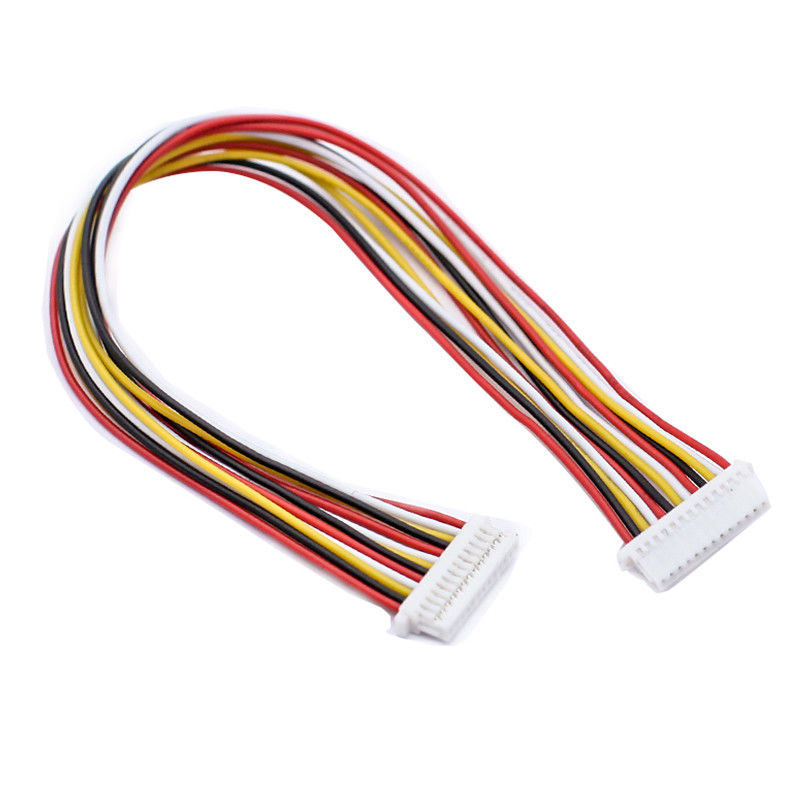

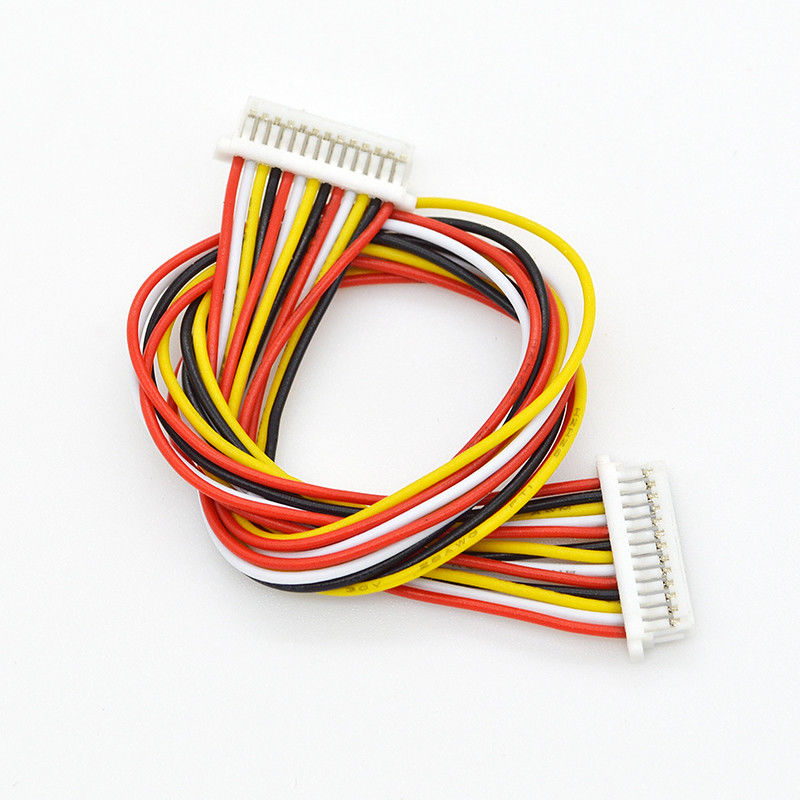

1.0mm Pitch Plastic Connector Wire Harness , JST SH Custom Cable Assembly

1.0mm Pitch Plastic Connector Wire Harness , JST SH Custom Cable Assembly
1.0mm Pitch Plastic Connector Wire Harness , JST SH Custom Cable Assembly 1.0mm Pitch Plastic Connector Wire Harness , JST SH Custom Cable Assembly

Large Image :  1.0mm Pitch Plastic Connector Wire Harness , JST SH Custom Cable Assembly

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTK
Certification: CE,SGS,ROHS,ISO9001
Model Number: electronic wire harness
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable price
Packaging Details: Hermetic bag,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs

1.0mm Pitch Plastic Connector Wire Harness , JST SH Custom Cable Assembly

Description
Pitch: 1.0mm Product Name:: SH 1.0mm Wiring Harness
Test: 100% Testing Inspection Cable Material: Bare Copper, Tinned Copper
Color: Red, Black, Yellow, White, Blue, Green, Orange, Purple, Gray, Brown Application: Electronic, Automotive,Electrical,Industry,Home Applications
High Light:

1.0mm Pitch Connector Wire Harness

,

JST Connector Wire Harness

,

SH Custom Cable Assembly

Custom JST VH 3.96mm pitch board to board edge connector 8Pin terminal wiring harness





Product Description

Product Pitch
1.0mm Pitch Cable
Pin
2~20 pin
Connector
According to customer's request to produce
Color
Custom color according to customer's request
Wire Spec
Custom Cable is pure copper or according to customer's request to produce
Length
Custom length according to customer's request
Outer Insulation
PVC, Rubber, Silicone, PE, Teflon, LSZH...etc
OEM & ODM Service
Support OEM orders
Samples:
Offer samples to confirm before mass production
Technical Drawing:
Offer technical drawing to check before production


Quality Control
100% breakover test
Certification
CE, ISO, RoHS, SGS etc
100% crimp inspection
Lead Time
Usually 7-15days; if urgent order, we could help to delivery within 3-5days.
100% size inspection
Insulation
PVC,silicone,PE,Teflon...etc
100% visual inspection



Application
Electronics, Automotive, Transportation, Medical, Oil Exploration, Military Industry,Aviation, Marine Exploration Industries, Metro Device, Bank Device, Network Project



Each wiring harness has its meaning, and each wiring harness needs to let us know:



1. What is the pitch?

The pitch of the connector (1.0/1.25/2.0/2.5/3.0/3.5/3.96/ etc.)



2. How many the length of the wiring harness?

Custom length according to customer's request


3. How many pins is the wiring harness?

The pin of the connector and Pitch (single row and double row)



5. What is the direction of the wiring harness?

according to the customer's request


4. Which wire gauge(AWG) do you need?

If you do not know, the temperature, voltage, and current will be provided to us, we will suggest a suitable wire gauge to you.



6. What colors do you require?

We have Red, black, yellow, green, blue, white, brown, grey, orange, purple, pink, and yellow/green.



Application



makeup mirror lights

medical electronics

 automotive electronics

smart security

smart home appliances

PCB motherboards

communication electronics

model airplane toys

 household appliances

 machine control equipment

robots

Internet of Things

 lighting and other products.





About  US



1,15 Years experience in OEM / ODM Cable;

2, Excellent Team

-----we have a perfect management system and production flow,24 hours online for sales service, skillful workers, and experienced QC and engineers. we devote ourselves to offering quotations within 1 day, providing samples within 5 days and

7 days lead time for production.

3, Workshop Capacity

-----Our 1st factory is 26000 square meters, includes 510 experienced workers. we built our 2nd factory in 2006, which is 5000 square meters, includes 280 workers.

4, Strict Control

-----The factory has passed certificates of ISO9001, and ISO14001, All the raw materials are ROHS and REACH compliant, and wire processing and wire harness are UL approved. We test and inspect 100% before shipment according to the IPC620-C standard.

5, Samples acceptable

6, Best after-sales services



FAQ


1) Do you accept small orders?

Yes. If you are a small retailer or starting up a business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long-term relationship.



2) How about the price? Can you make it cheaper?

We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, and we are assuring you to get the most competitive price.


3) Do you offer free samples?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost."


4) Do you accept Customization?

Yes, we can do OEM and ODM for our customers.


5) What are your payment terms? any third-party payment?

We usually accept T/T, Alibaba trade assurance, Western Union, Paypal, and L/C.


6) Can I visit your company and factory in China? Sure. You are very welcome to visit our company in Shenzhen, China.
7) How Can I place an order? You could directly place an order
 after sending us an inquiry to any of our sales representatives to get detailed order information, and we will explain the detailed process.
