Product Details:
|
| Service: | OEM ODM | Application: | Auto,Speaker,audio |
|---|---|---|---|
| Product Name: | Rotary Encoder | Output: | Integar Number For AB Believe |
| Theory: | Incremental Encoder, Incremental Encoder | Mechanical Life: | Above 15000 CYCLES |
| High Light: | 35mm Hollow Shaft Encoder,Custom Hollow Shaft Encoder,Speaker Hollow Rotary Encoder |
||

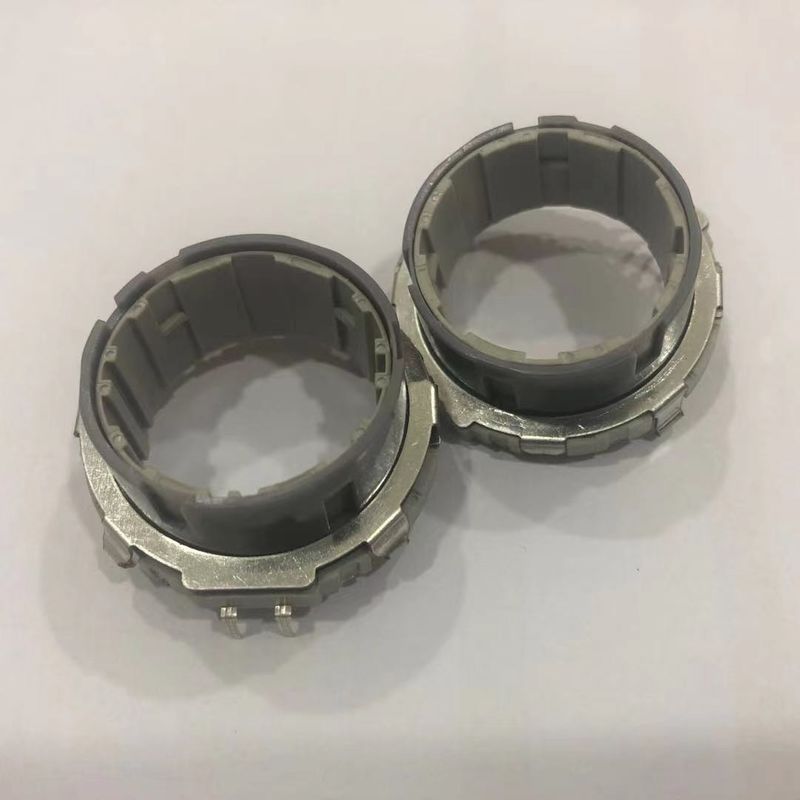

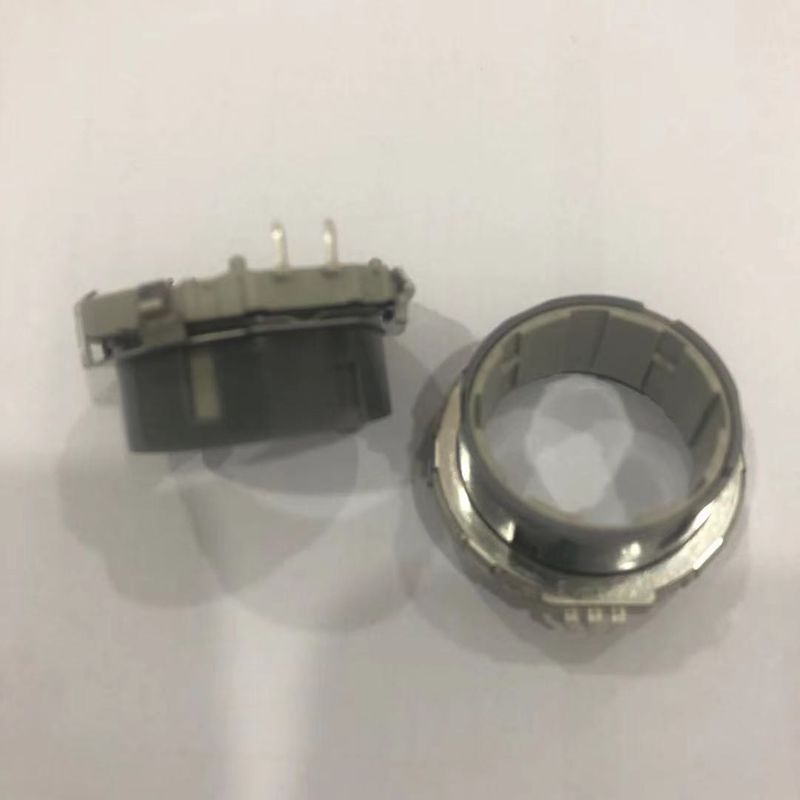

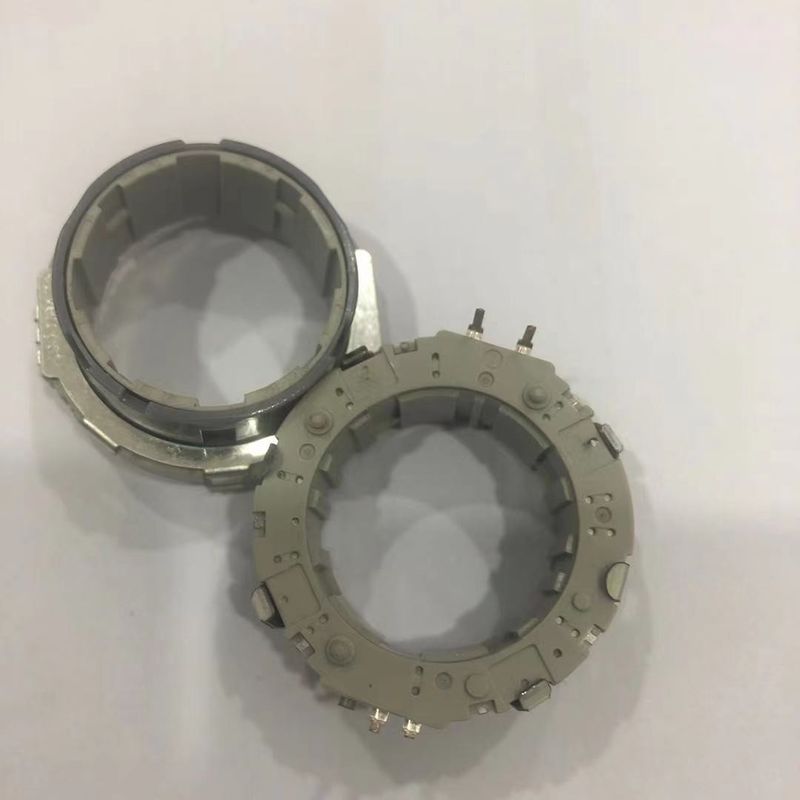

Custom 35mm Hollow Shaft Encoder for Vehicle Audio
Specification
Technical specifications
Encoder model: EC35
Name: Hollow shaft incremental encoder
Main Specifications: Dimensions:35mm
Rated power: DC 5V;
Location Number:18/20/30;
The number of pulses:10/15/18/20;
Operating temperature:-40°C to 85°C;
Service life:50000 More than times;
Product Features: Body thickness of thin, long life, a good feel of operation, the hollow space may additionally push switch mechanism.
Applications: The product is suitable for car audio, car air conditioning, car navigation and other household appliances, the related electronic equipment, primarily as adjust the volume, adjust the temperature, frequency, function switch and so on.
MECHANICAL CHARACTERISTIC
1, Detent Torque :50~300gf.cm
2,Number and position of detent: 20( 18°±3°),30( 12°±3°), 18( 20°±3°);
3,Shaft wobble :0.2 mm MAX
TWO,ELECTRICAL CHARACTERISTIC
1,Resolution :10&15&18&20/360°
2,Phase difference :≥4ms
3,Rated voltage : DC 5V
4,Insulation Resistance :10M 1 Minute at DC 110V
5,Dielectric Voltage :1 Minute at AC 110V
