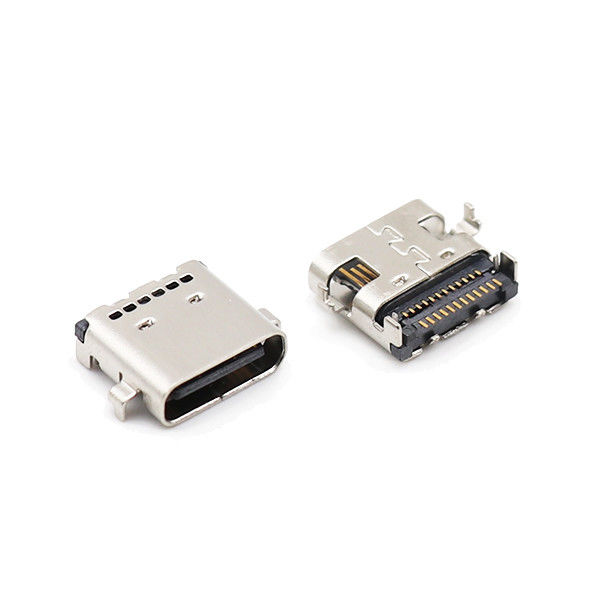

Name: Sinking Type SMT USB Female Type C Connector USB Type C 24 Pin socket
Brand: Shenzhen Xietaikang Precision Electronic Co., Ltd.
SKU: TYPE24-N1N1-CB080-A
Price: 4.01 USD
Availability: InStock

Home > Products > Type C Female Connector >

Sinking Type SMT USB Female Type C Connector USB Type C 24 Pin socket

USB Female Type C Connector

24pin USB Female Type C Connector

SMT USB Type C 24 Pin

Place of Origin:

Guangdong,China

Brand Name:

XTKCONN

Certification:

CE,SGS,ROHS,ISO9001

Model Number:

TYPE24-N1N1-CB080-A

Request A Quote

Product Details

Position:

24P

Rated Current:

5.0A AC

Rated Voltage:

5.0V

Contact Resistance:

40m/pin Ohms MAX

Insulation Resistance:

100mohms Min 100V DC

Operation Temperature:

-25℃ To +85℃

Highlight:

USB Female Type C Connector

24pin USB Female Type C Connector

SMT USB Type C 24 Pin

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Price

Negotiable price

Packaging Details

vacuum package,boxes in carton

Delivery Time

5-7 days

Payment Terms

L/C, T/T,Payyal

Supply Ability

1KK pcs

16pin USB C TYPE Female Connector Waterproof Type-c Socket UsbSMT IPX7

Get Best Price

24pin 3.1 Waterproof IPX7 USB C Connector for Smart Wear PCB Charger Connector Solder Type c

Get Best Price

IP67 Waterproof USB Connector 6pin horizontal surface mount USB Type C Female Connector

Get Best Price

USB Type C 16Pin IPX7 Waterproof SMD

Get Best Price

86 13711847246

tina.liaoyan@foxmail.com

86-769-85150486

Contact Now

Product Description

USB type C connector 24pin female type SMT sinking type

The compact Type-C Connectors expanded family supports up to 10 Gbps speeds and offers robust, reliable connectivity in IoT, wearable device and other high-speed data I/O applications.

USB Type-C connectors use high-temperature Nylon or Nylon 64 as housing material and a 3-tier insert-molding process to ensure high-mating durability and electrical reliability of the connector.

Specifications

Mounting Type	SMT
No. Of Positions	24p
Rated current	5.0A AC
Rated voltage	5.0V
Contact Resistance	40m/pin ohms MAX
Insulation Resistance	100mohms min 100V DC
Insertion Force	5-20 N
Operation Temperature	-25℃ to +85℃
Withstanding Voltage	100V AC
Housing	UL94 V-0
Contact	Copper alloy
Gender	Female
Price Term	FOB
Durability cycles	10000 Cycles Min
Lead Time	7-10 working Days

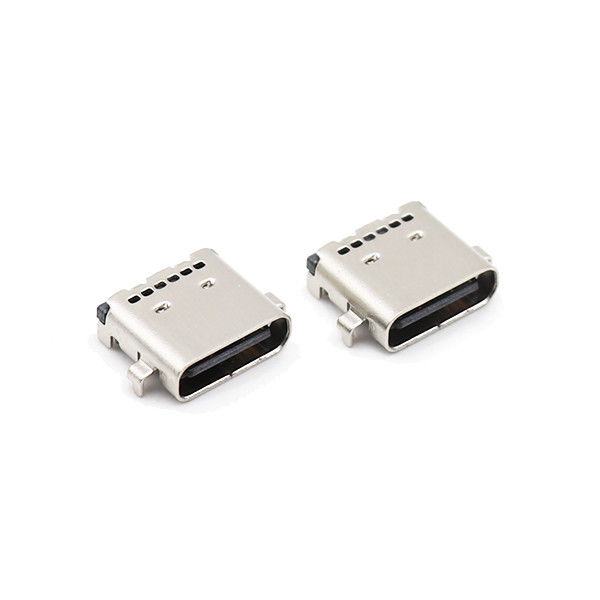

Sinking Type SMT USB Female Type C Connector USB Type C 24 Pin socket 0

Typical Application
For data transfer and charging:Mobile phone, mobile power, charger etc.

Competitive Advantages

1, Strong R&D team specialized in connector and model design.

2, samples can be provided for free in 1-3 days .

3, Strict shipping ,100% tested before delivery

4, More than 10 year's experience in the electronic business.

5, fast delivery,purchasing orders shipped in 3-10 days
