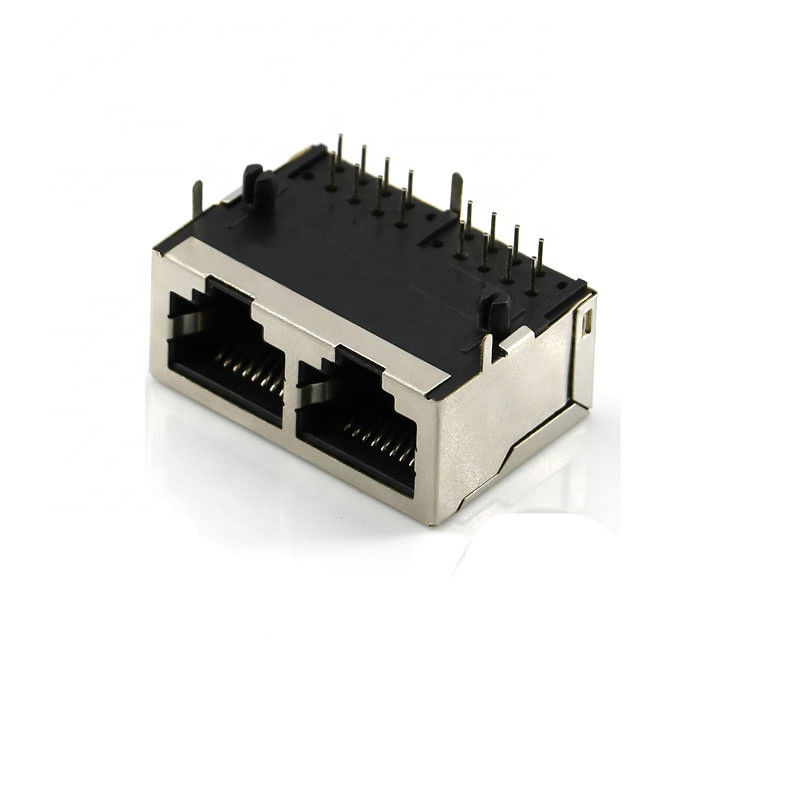

Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p

Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p
Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p
Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p

Large Image :  Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: RJ45
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 1KK pcs
Contact Now

Double Ports RJ45 Female Socket UL94V-0 PCB Ethernet Connector 8p

Description
Item: RJ45 Female Connector Number Of Port: 1*2 Ports
Current Rating: 1.5A Temperature: -30℃ ~ +85℃
Contact Resistance: 30 Millionhm Max Terminal Plating: GOLD PLATED/3U"/6U"/15U"/30U"
Highlight:

8p RJ45 Female Socket

,

UL94V-0 RJ45 Female Socket

,

UL94V-0 PCB Ethernet Connector

Enterent Socket PCB Double Ports Rj 45 Female Jack Rj45 PCB Connector





10/100/1000Base-Tx RJ45 2 port 1X2 Side Entry (Right Angle) without LED
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
LEDS:NO





Material specifications

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications

• Integrated RJ45 connector main used to :
• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
optical transceiver, IP phone,internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL and so on.




Tag:

2x4 RJ45 PCB Connector,

DIP rj45 modular jack,

1x1 8P8C RJ45 Connector
