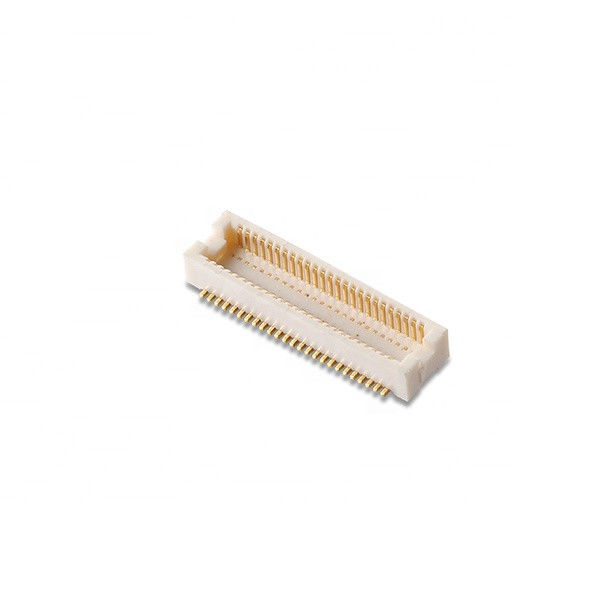

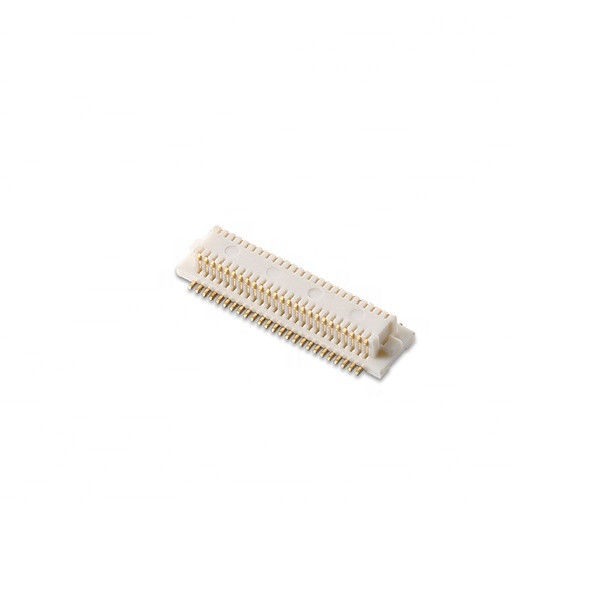

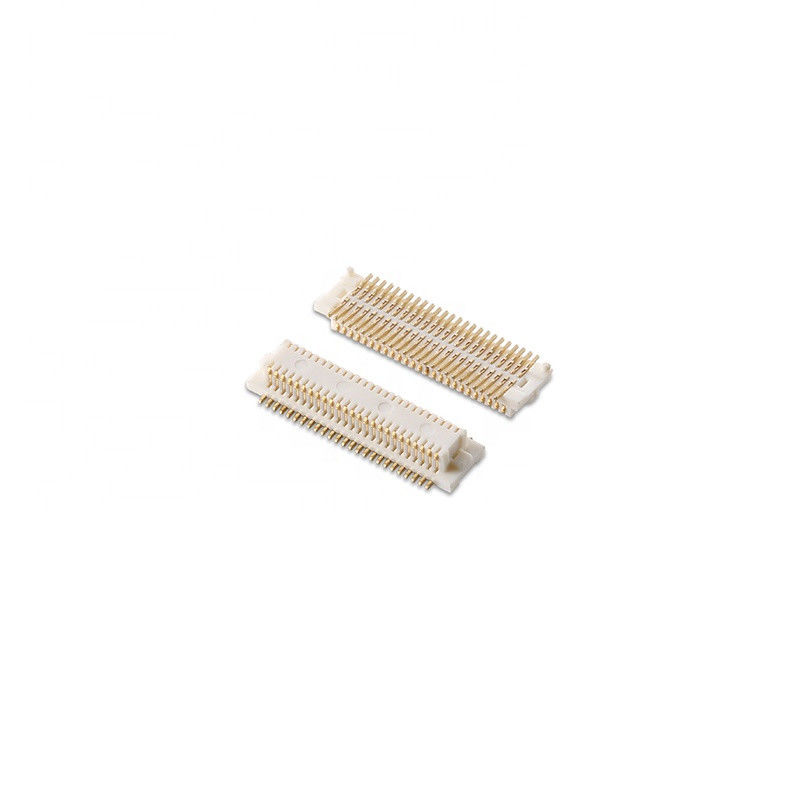

2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board

2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board
2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board
2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board 2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board 2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board 2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board

Large Image :  2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: BTB connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days

2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board

Description
Pitch: 0.5mm Application: TV&LED Display PCB Board
Plating: Gold Or Tin PINS: 2x2~2x40pin
Material: PA6T LCP Gender: Female And Male
High Light:

2x25P BTB Connector

,

PA6T BTB Connector

,

0.5mm board to board pcb connector

Board to board connector pitch0.5mm 2x25P SMT for pcb board TV&LED control car





Ideal for compact applications in the automotive, industrial, medical and mobile device industries, SlimStack Board-to-Board Connectors offer a wide selection of low-profile, narrow width options in various mated heights and circuit sizes.



1. Positions: 2x2 pins-2x50pins available
2. Pitch: 0.5mm

Pitch 0.5mm/0.8mm/1.0mm/1.25mm/2.0mm/2.54mm available.
3. Current rating: 1.5A
4. Insulation-resistance: 1000MΩ min
5. Dielectric withstanding voltage: 500V AC
6. Contact-resistance: 20mΩ max
7. Operating temperature: -40 to + 105°C
8. Insulation material: LCP+30%GF UL94V0
9. Contact material: copper
10. Plating: nickel+Au
11. Maximum processing temperature: 260°C
12. Insertion force: 80 to 200g
13. Withdrawal force: 70 to 200g
14. Mechanical life/durability:
15. Packing: tube, tray, plastic bag, tape and reel optional
16. Carton size: customized
17. Carton quantity: customized
18. Carton weight: customized
19. Free sample available
20. 100% tested before shipment
21. Payment terms: T/T, Western Union, L/C, MoneyGram, PayPal, cash
22. Shipping ways: FedEx, DHL, UPS, TNT, air, sea
23. Delivery lead-time: within 5-30 days, depends on order quantity
24. We are professional manufacturer majoring in the board to board connectors, wire to board connector, pin header, female header, box header, ejector header, wafer, FFC, FPC, D-sub, USB, RJ45, SD card, SIM card, IC socket, terminal block, jumper cap, cables
25. OEM/ODM/customized products are welcome
26. If any questions, feel free to contact us.

2x25P Board To Board BTB Connector 0.5mm Pitch SMT PA6T For PCB Board 0





Product Application

The thin spacing board to board connector is an optimized interconnection solution, which is suitable for smaller and thinner electronic consumer products. These connectors can cope with the trend of miniaturization in the market. The product line has smaller pin spacing, narrower body and lower socket height, as well as various advantages.







Vertical mounting plate to plate signal connector, with compact space saving design and high contact density. These SMC stacked signal connectors provide high performance, high signal integrity and reliability. The contacts of these SMC high-speed sandwich signal connectors provide continuous impedance profiles for high transmission rates up to 3 Gbit/s. The contact is designed with a super reliable double beam, which can provide low resistance and achieve high electrical performance.
