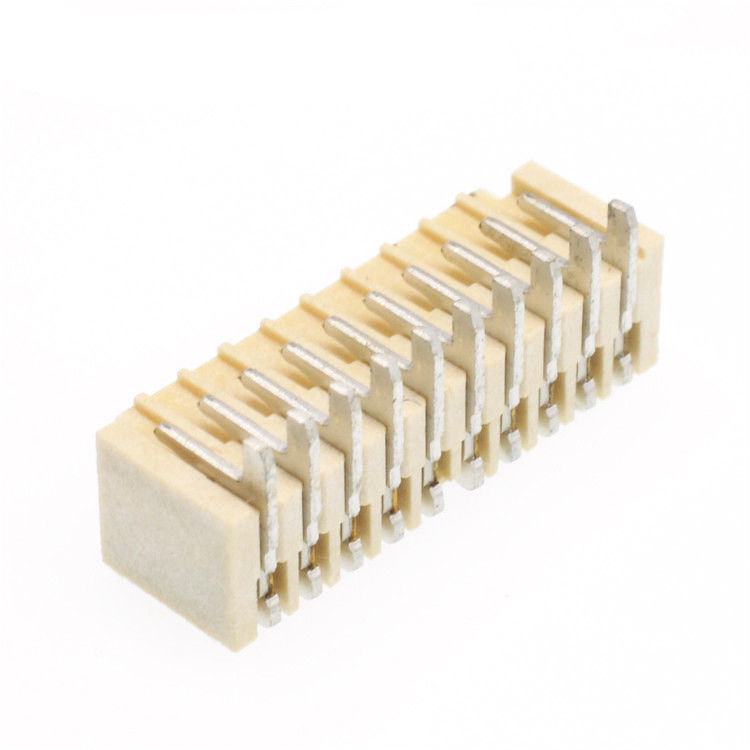

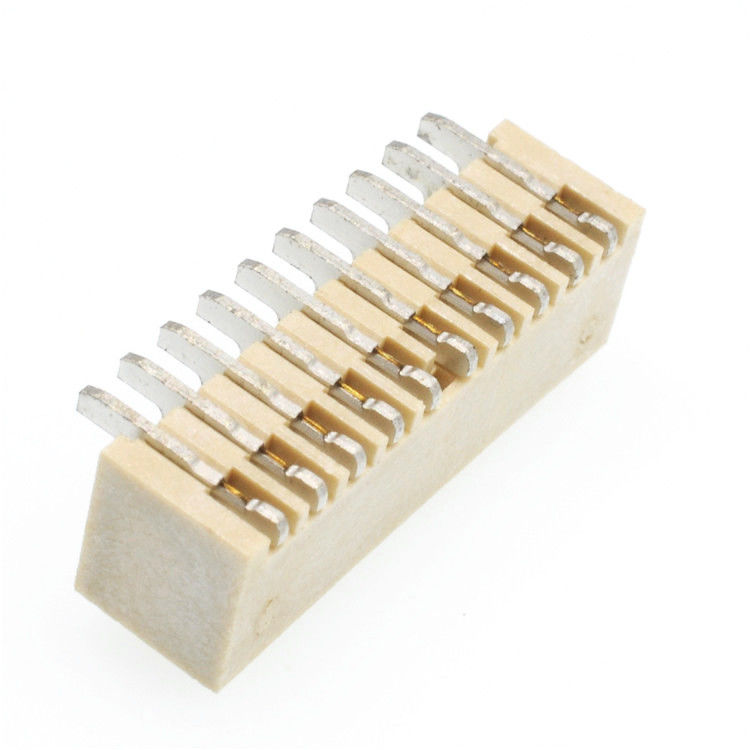

AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin

AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin
AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin
AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin

Large Image :  AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer Boc Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin

Description
Withstanding Voltage: 300V /AC/1Min Pitch: 1.5mm
Housing Material: (Nylon66)UL94V-0 Applicable Wire: AWG32#-26#
PIN: 2~ 20pin Working Temperature: -25°C-+85°C
High Light:

1.5mm Wire To Board PCB Connectors

,

AWB Wire To Board PCB Connectors

,

AWB 2 pin wafer connector

AWB Type 1.5mm Pitch Wafer Box Connector 2 To 16 Contacts





1.5mm pitch, wire-to-board PCB Connectors offer a versatile system that offers a variety plating and design options, ideal for nearly all applications, ranges in circuit sizes from 2 to 50 and provides wide header versions, ideal for space constraint applications.

The wide range of design options including gold and tin plating, allows additional design flexibility and the simplicity to stay within the product family.



Description

Name Wafer Connector
Pitch 1.5mm
Type DIP type
Insulator Color Black
Insulator Flammability UL 94V-0
Current Rating 3A
Contact Resistance(max) 4m ohm Max
Operating Voltage 60V AC/DC
Insulation Resistance(min) 1000M ohm Min at DC 500V
Contact materials Gold/Tin plating
Contact Plated Tin or gold over nickel
Insulator material PA6T
Processing Temperature -40~105℃
Packing Tray Packing
OEM/ODM Accepted

AWB Type 1.5mm Pitch Wafer Wire To Board PCB Connectors 2-16 Pin 0



Trends in connectors



The above technology represents the development direction of connector technology, but it should be noted that the above technology is not necessary for all connectors. connectors in different supporting fields and different usage environments have completely different requirements for the above technologies.





Product Application



Our connectors are widely applied tocusumer electronics, cummunications industry , military industry ,

automotive filed, medical equipment , data module and so on .





Description



1. Wafer connector is a classification of rectangular connector. The basic structure is a bar, the contact is arranged in a single row, and the connector has a bar joint surface. The strip connector is a kind of component that electronic engineering technicians often contact.

2. Its function is very simple, in the circuit is blocked or isolated between the circuit, set up a bridge of communication, so that the current flow, so that the circuit to achieve the intended function.



FAQ

1.I can’t find specific products ,can you make it for me?
Yes, our catalog covers the majority of our products but not all. So feel free to let us know what you want. We can also open new mould for specific requirements.

2. Do you take small order?
Yes,we assure you of our best services at all time, Feel free to contact us!

3.Do you do ODM/OEM services?
Yes, we have 3 years experience on ODM/ OEM services.

4.Are you a factory or trading company?
We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

5.How does your factory do regarding quality control?
All the products will be 100% checked before the shipment.

6.How could I get a sample?
If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.

7.How to deal with the faulty?
Firstly,our products are produced in strict quality control system,and 70% produced by automata,the defective rate will be less than 1%.Secondly,our QC department will analysis the defect reason within 12H,and improve next lot products.

8. I need your price list of all your products, do you have a price list ?
We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!

9.Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers already.About customized packing, we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.
