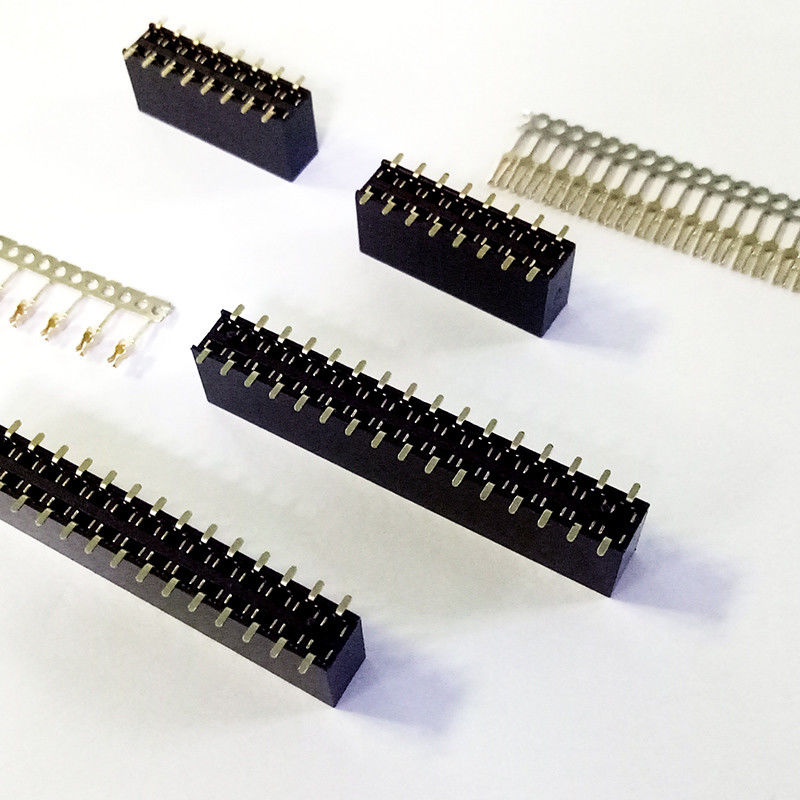

UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin

UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin
UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin
UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin

Large Image :  UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Female Header Connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin

Description
Pitch: 2.0mm Current Rating: 1.5Amp
Operating Temperature: -40℃ To +105℃ Current Voltage: AC 500V
Contact: Brass Housing: Polyester(UL94V-0)
High Light:

UL94V-0 Female Header Connector

,

2mm Female Header Connector

,

UL94V-0 2mm pitch female header

2.0mm Pitch SMT Female Header Connector Dual Row For Medical Equipment





Custom Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows



What is the Female Header Connector



It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.



Features

1. Female headers are available in vertical, right angle, SMT(SMD), Z type(Right-angle SMT). 2.Environmental friendly and ROHS compliant. 3.It’s cost-effective and convenient to transport. 4.Female headers are widely used in PCB circuit boards in electronics, electrical appliances and meters. 5.A socket header is easy to customize. 6.If you want to find a reliable one-stop sourcing supplier of connectors,XTK is your best choice.



Desccripition



Product Name Female Header
Contact Type SMT
Style Board to Board
Number of Positions 4Pin to 40Pin
Pitch 2.0mm
Number of Row Dual
Mounting Type Through Hole
Terminlation Solder
Fastening Type Push-Pull
Contact Finish Gold Over Nickel
Contact Finish Thickness Gold Flash
Insulation Color Black
Insulation Height 4.1mm
Operating Temperature -40℃ to 105℃
Contact Plating Au or Sn Over Ni

UL94V-0 Dual Row 2mm Pitch Female Header Connector 4-40 Pin 0



Product Application



It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.



Our Advantage

1. We are specializing in the production of auto connector 15 years.
2. In the production process, we strictly control the quality of raw materials and products.
3. Created a mold design team for more than 10 years of experience. Advanced mold processing equipment, can develop design molds according to customer requirements.
4. Advanced laboratory equipment for many kinds of experimental tests
5. We supply products to dozens of domestic large wiring harness manufacturers, for BYD, VW, Toyota, Honda,.
6. The products are mainly exported to Southeast Asia, Europe, the South, and the North America.
