Product Details:
|
| Pitch: | 0.8mm | No. Of Positions: | 4-100pin |
|---|---|---|---|
| Current Rating: | 0.75AMP | Connector Type: | Assembly Connector |
| Application: | Smart Home Equipment | Type: | Double Row |
| High Light: | PCB BTB Connector,0.8mm BTB Connector,0.8mm Double Row Pin Header |
||

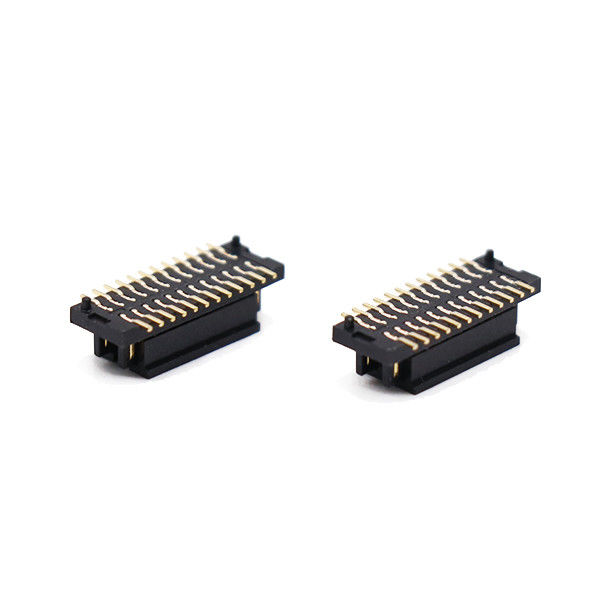

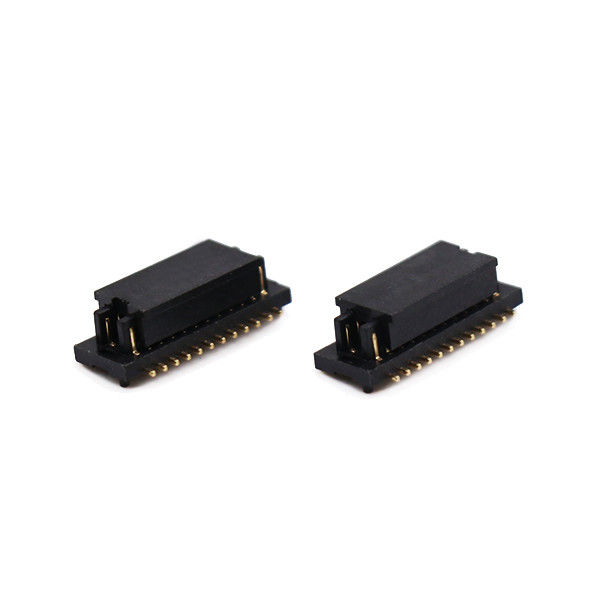

Thin Spacing 0.8mm Pitch PCB BTB Connector Pin Header Double Row SMT Type
Product Details
| Item | Board to board male header |
| Pitch | 0.8mm |
| Mounting Type | SMT |
| No. Of Positions | 4-50pin |
| Connection Style | Right angle-Vertical |
| Current rating | 0.75AMP |
| Voltage rating | 50VAC 200V, DC 300V/Contact |
| Contact Resistance | 30mΩ Max |
| Insulation Resistance | 500mΩ Min |
| Contact Material | Brass |
| Insulator Material | PA9T Or LCP+30％GF UL94V-0 |
| Insulator Color | White/black |
| Withstanding Voltage | 500V AC/Minute |
| Operation Temperature | -25℃ to +85℃ |
| Lead Time | 7-10 working Days |
Drawing
About US
Xietaikang provides a wide variety of Board to Board connectors from 0.4mm of narrow-pitches, low profile, and space-saving types that are best suited to compact equipment such as smartphones, wearable devices, and such to the types featuring the floating structure absorbing vibrations and minor misalignment on a printed circuit board that are best suited to equipment such as automobiles and medical devices requiring high contact reliability.
Ideal for compact applications in the automotive, industrial, medical and mobile device industries, SlimStack Board-to-Board Connectors offer a wide selection of low-profile, narrow width options in various mated heights and circuit sizes.
About BTB Connector
Pracelet
Printers / Copiers
Storage Devices
Industrial Equipment
Medical Equipment
smart home
