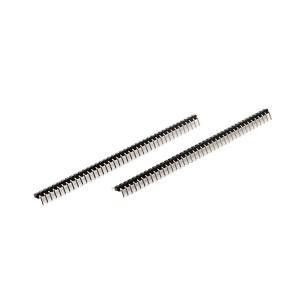

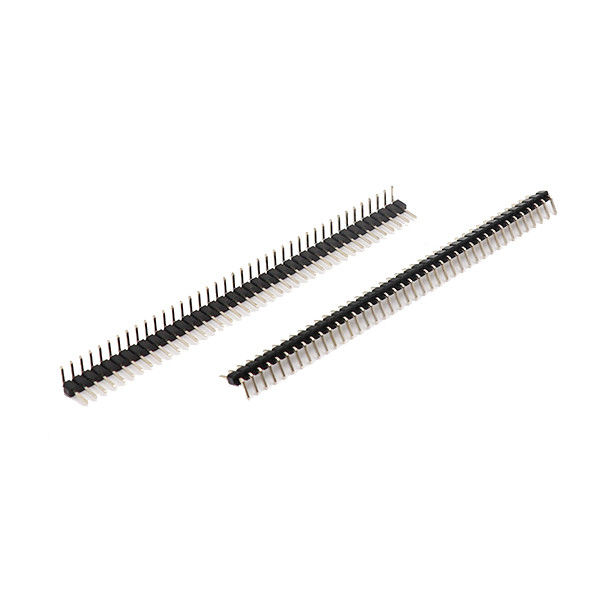

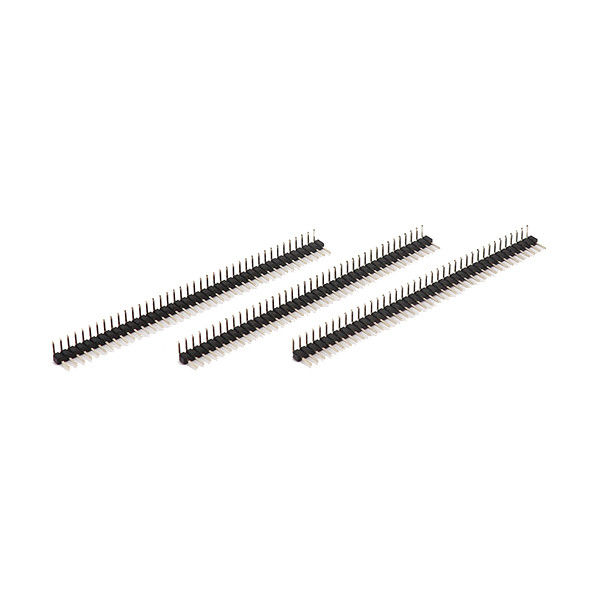

2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p

2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p
2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p
2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p 2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p 2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p 2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p

Large Image :  2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Pin header connector
Payment & Shipping Terms:
Minimum Order Quantity: 600pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p

Description
Pitch: 2.0mm No. Of Positions: 2-50p
Durability Cycles : 5000 Cycles Min Insulation Resistance(min): 1000MΩ Min
Processing Temperature: 260℃ For 10 Seconds Contact Plating: Gold/Tin Over Nickel
High Light:

2.0mm Pin Header Connectors

,

90 Degree 50p Pin Header Connectors

,

2p 2.0mm 90 degree pin header

2.0mm Pitch Pin Header Connector Single Row 90 Degree





Product Description



Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-50p
Rated current 1.5A AC
Rated voltage 50V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 1000m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -40℃ to +105℃
Withstanding Voltage 500V/1min AC
Housing Polyester(UL94V-0)
Contact Brass
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days



2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p 0



Drawing

2.0mm Pitch Single Row Pin Header Connectors 90 Degree 2-50p 1



Feature



Pin Headers provide design flexibility, production efficiency while decreasing needed equipment assets.with Horizontal, right-angle and vertical about orientation & single and dual Rows with range of 0.8mm to 3.96mm pitch.



The male pin connector has a wide range of application, environmental protection, fire prevention, strong oxidation resistance and electrical conductivity. It is blocked or isolated between circuits to achieve the bridge function and undertake the task of current or signal transmission.
Product material: Its materials are pure copper wire, brass wire, phosphor copper wire, copper-clad steel wire, nickel plating and nickel plating on the surface.

Scope of application: Pin header are widely used in monitors, digital cameras, MP3,MP4,PDA, computers, computer motherboards, mobile storage disks, card readers, safety products, electricity meters, wireless phones, mobile phones, interphones, program-controlled switches, VCD,DVD,LCM / LED display module, electronic toys, household appliances, etc. Provide the most reliable connection for board-to-board and line-to-board.



Packing & Delivery

-Arrange packing within 24 hours,delivery time within 7-12days -No else charge,Excellent after-sales system,Supporting visits to factory
-100% checked before shipment -of the products have ROHS certification -accept trade assurance/quality problem return and refund
