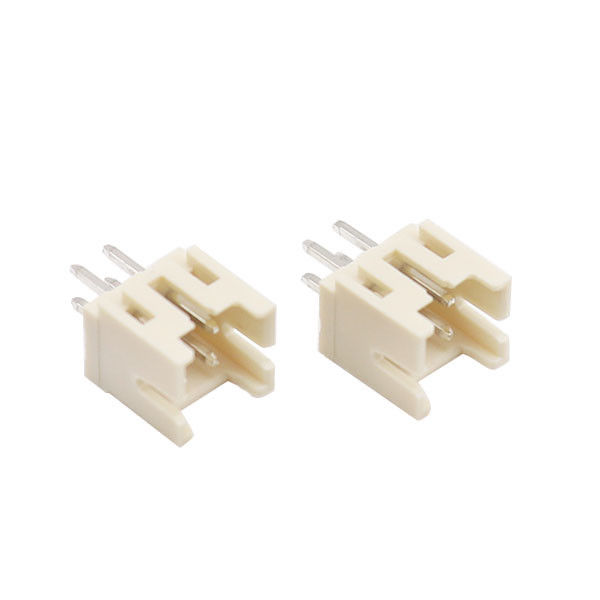

SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle

SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle
SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle
SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle

Large Image :  SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: Wafer housing terminal
Payment & Shipping Terms:
Minimum Order Quantity: 1500pcs
Price: Negotiable price
Packaging Details: inner package:in reel; Outer Package: reel in Carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 3KK pcs

SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle

Description
Pitch: 2.0mm Rated Current: 3.0A AC DC
Service: OEM/ODM Poles: 2Pin
Plating: Tin Plating Sample: Fress
High Light:

SMT 2mm PCB Connector

,

Wafer Housing 2mm PCB Connector

,

SMT 2.0 mm wire to board connector

Smt Connector 2.0mm PCB Connector Wafer Housing straight dip type with buckle





Product Description



Pitch 2.0mm
Mounting Type SMT
No. Of Positions 2-15p
Rated current 3.0A AC DC
Rated voltage 250V AC/DC
Contact Resistance 20m ohms MAX
Insulation Resistance 100m ohms min
Insertion Force 20gf/pin Min
Operation Temperature -25℃ to +85℃
Withstanding Voltage 800V/1min AC
Housing Nylon66 UL94V-0
Contact Brass Tin-plated
Gender Female
Price Term FOB
Durability cycles 5000 Cycles Min
Lead Time 7-10 working Days
Wire AWG 24-30



SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle 0



Drawing

SMT 2mm PCB Connector Wafer Housing 2.0 Mm Wire To Board Connector With Buckle 1



Feature



Ideal for compact applications, the 2.00mm Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets a diverse range of industry requirements.

In microminiature wire-to-board applications, sometimes operators fail to ensure proper mating orientation, which can lead to end-product failure. The polarized ribs of the wafer Wire-to-Board Connector System prevent mismating and provide mating guidance. Often medical, automotive and home appliance designers have a real-estate space issue on their PC board because of increasing components.wafer Wire-to-Board Connector System features positive lock in a compact 2.00mm pitch design.



PCB Connector orientations



PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.



FAQ



Q: Can I get some samples?

A: Yes,some samples are free.



Q: Which payment can be accepted?

A: 1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.



Q: What’s the delivery time?

A: It usually takes about 3~7 working days to produce the products.



Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
