Product Details:
|
Product Family: | Memory Card Connectors | Type: | T-Flash |
---|---|---|---|
No. Of Positions: | 8p | Current Rating: | 0.5A |
Durability Cycles : | 5000 Cycles MIn | Withstanding Voltage: | 100V AC |
High Light: | SMT Memory Card Connectors,8pin Memory Card Connectors,8pin micro sd connector |

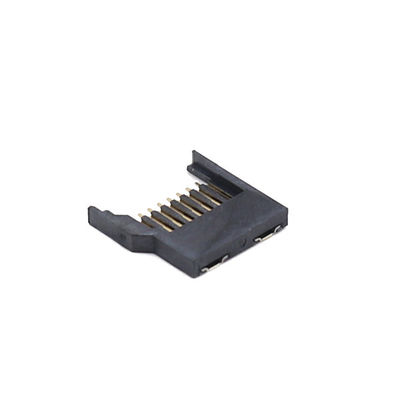

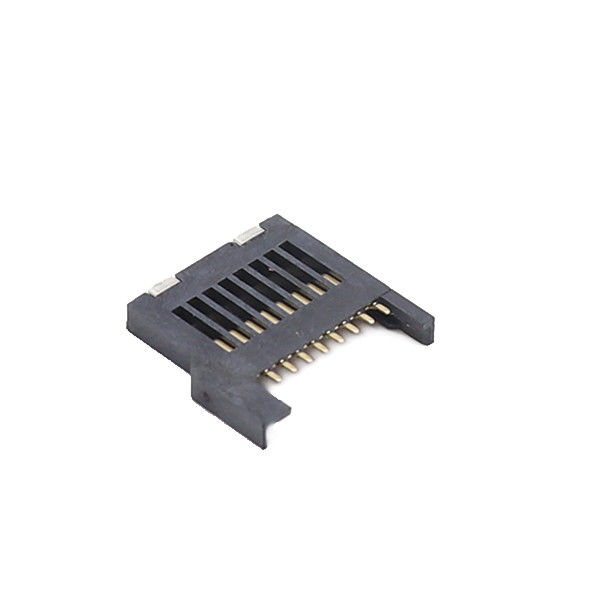

T Flash SMT Micro Sd Card Socket Memory Card Connector With Full Plastic Shell 8pin
Product Description
Mounting Type | SMT |
No. Of Positions | 8p |
Rated current | 0.5A |
Rated voltage | 30V |
Contact Resistance | 50m ohms MAX |
Insulation Resistance | 100mohms min 100V DC |
Operation Temperature | -40℃ to +85℃ |
Storage Temperature | -10℃ to +85℃ |
Withstanding Voltage | 100V AC |
Housing | LCP,UL94V-0 black |
Terminal | copper alloy |
Gender | Female |
Price Term | FOB |
Durability cycles | 5000 Cycles MIn |
Lead Time | 7-10 working Days |
Ejector Type | Push-push;push-pull,Hinge,Tray type |
Drawing
Feature
Connector group that includes connectors for standard PCMCIA for PCs, push-push type SD,Micro SD and SIM connectors.
This series are SDMC (Secure Digital Memory Card) Connectors used as the recording medium of portable devices, which can be widely introduced into the market of notebook PCs, mobile phones, DVCs (Digital Video Cameras), DSCs (Digital Still Cameras) and other complex machines for these applications.
Main Application
With Storage Features:Camera,Digital AudioTablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipmentetc.
