Product Details:
|
| Gender: | Memory Card Connectors | Type: | T-Flash |
|---|---|---|---|
| Housing: | LCP,UL94V-0 Black | Terminal: | Copper Alloy |
| Operation Temperature: | -40℃ To +85℃ | Contact Resistance: | 50m Ohms MAX |

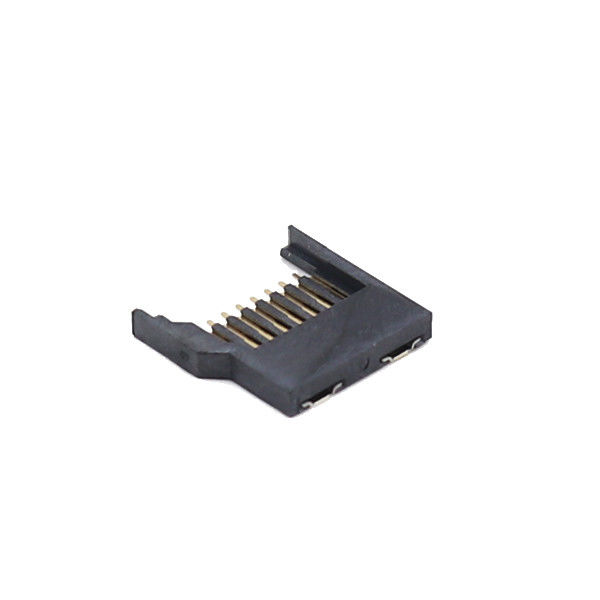

| High Light: | Copper Alloy Terminal 8p T Flash Connector,ROHS T Flash Connector,8p memory card socket |
||
Connector group that includes connectors for standard PCMCIA for PCs, push-push type SD,Micro SD and SIM connectors.
Description
This series are Memory Card Connectors for XQDTM cards. As these products are connectors for consumer equipment such as DSCs (Digital Still Cameras) and DVCs (Digital Video Cameras), their card operation features a push-push mechanism by adopting the spring-ejection structure, thus enabling users to easily insert and eject the cards. In addition, the connectors are made user friendly with an enhanced click” feeling, and a guiding structure which prevents incorrect card insertion of the cards
| Mounting Type | SMT |
| No. Of Positions | 8p |
| Rated current | 0.5A |
| Rated voltage | 30V |
| Contact Resistance | 50m ohms MAX |
| Insulation Resistance | 100mohms min 100V DC |
| Operation Temperature | -40℃ to +85℃ |
| Storage Temperature | -10℃ to +85℃ |
| Withstanding Voltage | 100V AC |
| Housing | LCP,UL94V-0 black |
| Terminal | copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles MIn |
| Lead Time | 7-10 working Days |
| Ejector Type | Push-push;push-pull,Hinge,Tray type |
Features
Considering about luminescence property of LED device,this LEB connector is designed as low profile type connector for LED lighting.and achieves the space saving. The hrizontal connection between PCBs enables and the mechanism of absorbing the PCB misalignment has been installed considering the parallel use for the connector.Fork type contact that has a high contact pressure (receptacle side) and enough mating stroke provide the stable contact performance even if the PCB expands and contracts due to heat.
Main Export Markets
Asia , Australasia,Eastern Europe Mid East, Africa,North America ,Western Europe,Central,South America.
FAQ
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Do you accept customization?
A: Yes,we can accept customization as long as it is within our business scope, but you need to provide us with your demand quantity.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: When i can get quotation?
A: After you confirm the products you need, we will offer you a quotation.
Q: If there is a product quality problem, what should you do?
A: This kind of situation will not happen basically. In case it happens, we will negotiate with you about the solution and reach an agreement.We will bear the return and exchange costs incurred by the product quality.
