9p T Flash Card Memory Card Connectors Push Type 10000 Cycles

Certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
China Shenzhen Xietaikang Precision Electronic Co., Ltd. certification
I'm Online Chat Now

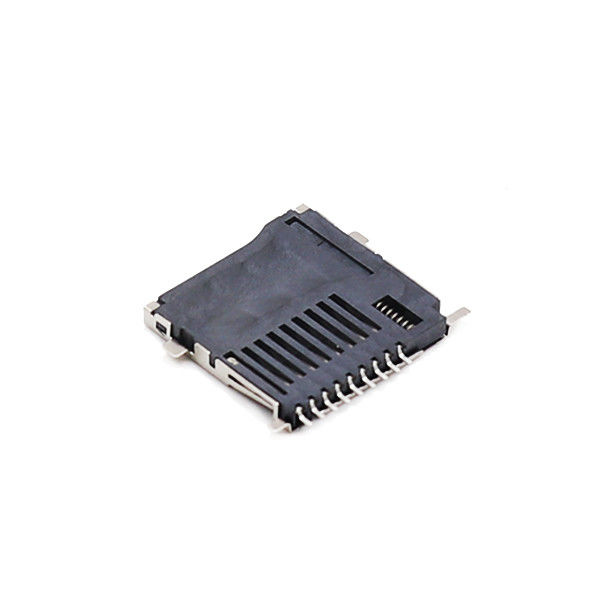

9p T Flash Card Memory Card Connectors Push Type 10000 Cycles

9p T Flash Card Memory Card Connectors Push Type 10000 Cycles
9p T Flash Card Memory Card Connectors Push Type 10000 Cycles 9p T Flash Card Memory Card Connectors Push Type 10000 Cycles

Large Image :  9p T Flash Card Memory Card Connectors Push Type 10000 Cycles

Product Details:
Place of Origin: Guangdong,China
Brand Name: XTKCONN
Certification: CE,SGS,ROHS,ISO9001
Model Number: TF card connector
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable price
Packaging Details: vacuum package,boxes in carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T,Payyal
Supply Ability: 4KK pcs

9p T Flash Card Memory Card Connectors Push Type 10000 Cycles

Description
Gender: Memory Card Connector Durability Cycles : 10,000 Cycles
Mounting  Type: SMT / Mid-mount Current Rating: 0.5A
Operating Voltage: 10V AC(RMS)/DC Contact Resistance: 20m Ohms
High Light:

9p Memory Card Connectors

,

10000Cycles Memory Card Connectors

,

9p t flash connector

T Flash card connector Memory Card Connectors Push type



Description



This series are Memory Card Connectors for XQDTM cards. As these products are connectors for consumer equipment such as DSCs (Digital Still Cameras) and DVCs (Digital Video Cameras), their card operation features a push-push mechanism by adopting the spring-ejection structure, thus enabling users to easily insert and eject the cards. In addition, the connectors are made user friendly with an enhanced click” feeling, and a guiding structure which prevents incorrect card insertion of the cards

Specification

Mounting Type SMT / mid-mount
No. Of Positions 9p
Current Rating 0.5A
operating voltage 10V AC(RMS)/DC
Contact Resistance 20m ohms
Insulation Resistance 100mohms min
Operation Temperature -25℃ to +85℃
Storage Temperature -10℃ to +85℃
Voltage Rating 50V
Material of main body LCP,UL94V-0
Contact copper alloy
Withstand Voltage 500V
Gender Female
Price Term FOB
Durability cycles 10,000 Cycles
Lead Time 7-10 working Days
Ejector Type Push-push;push-pull,Hinge,Tray type

9p T Flash Card Memory Card Connectors Push Type 10000 Cycles 0



scope of application



used in all kinds of consumer electronic appliances, electronic communication, power and industrial control, medical equipment, automotive electronics, solar energy and other industries, with the most sophisticated and reliable connections for customers.



Drawing



9p T Flash Card Memory Card Connectors Push Type 10000 Cycles 1



Why choose US?


1. With more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.



Main Export Markets



South and North America, Asia,Africa and Europe.



FAQ



Q1. Can I have a sample order for Connector?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-7 days, mass production time needs 1-2 weeks for order quantity more than 10K pieces.

Q3. Do you have any MOQ limit for Connector?
A: Low MOQ 10pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 12 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Connector?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print number on the Connector?
A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes.
