Product Details:
|
| Housing: | Hi-temperature Thermoplastic Plastics | Shell: | SUS |
|---|---|---|---|
| Rated Current: | 0.5A AC | Rated Voltage: | 125V AC/DC |
| Operation Temperature: | -20℃ To +80℃ | Contact Resistance: | 100m Ohms MAX |

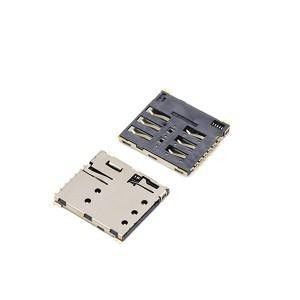

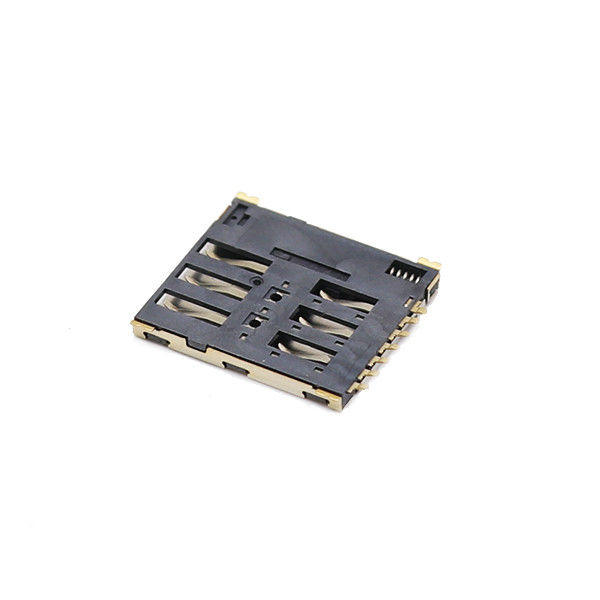

| High Light: | Nano 6 pin Sim Card Connector,LCP 6 pin Sim Card Connector,LCP push push sim connector |
||
Optimized for reliability and high-speed data transfer, compact, easy-to-use SIM Memory Card Sockets, in different configurations, meet the quick and compact connection requirements of various industries.
Specifications
| Mounting Type | SMT |
| No. Of Positions | 6p |
| Rated current | 0.5A AC |
| Rated voltage | 125V AC/DC |
| Contact Resistance | 100m ohms MAX |
| Insulation Resistance | 1000m ohms min |
| Insertion Force | 20gf/pin Min |
| Operation Temperature | -20to +80℃ |
| Withstanding Voltage | 350V/1min AC |
| Housing | LCP |
| Contact | Copper alloy |
| Gender | Female |
| Price Term | FOB |
| Durability cycles | 5000 Cycles Min |
| Lead Time | 7-10 working Days |
| Ejector TYpe | Push-push;push-pull,Hinge;Tray type |
Drawing
Product Application
Our connectors are widely applied to cummunications industry , cusumer electronics,military industry ,automotive filed, medical equipment , data module and so on .
